Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
01/2017
69

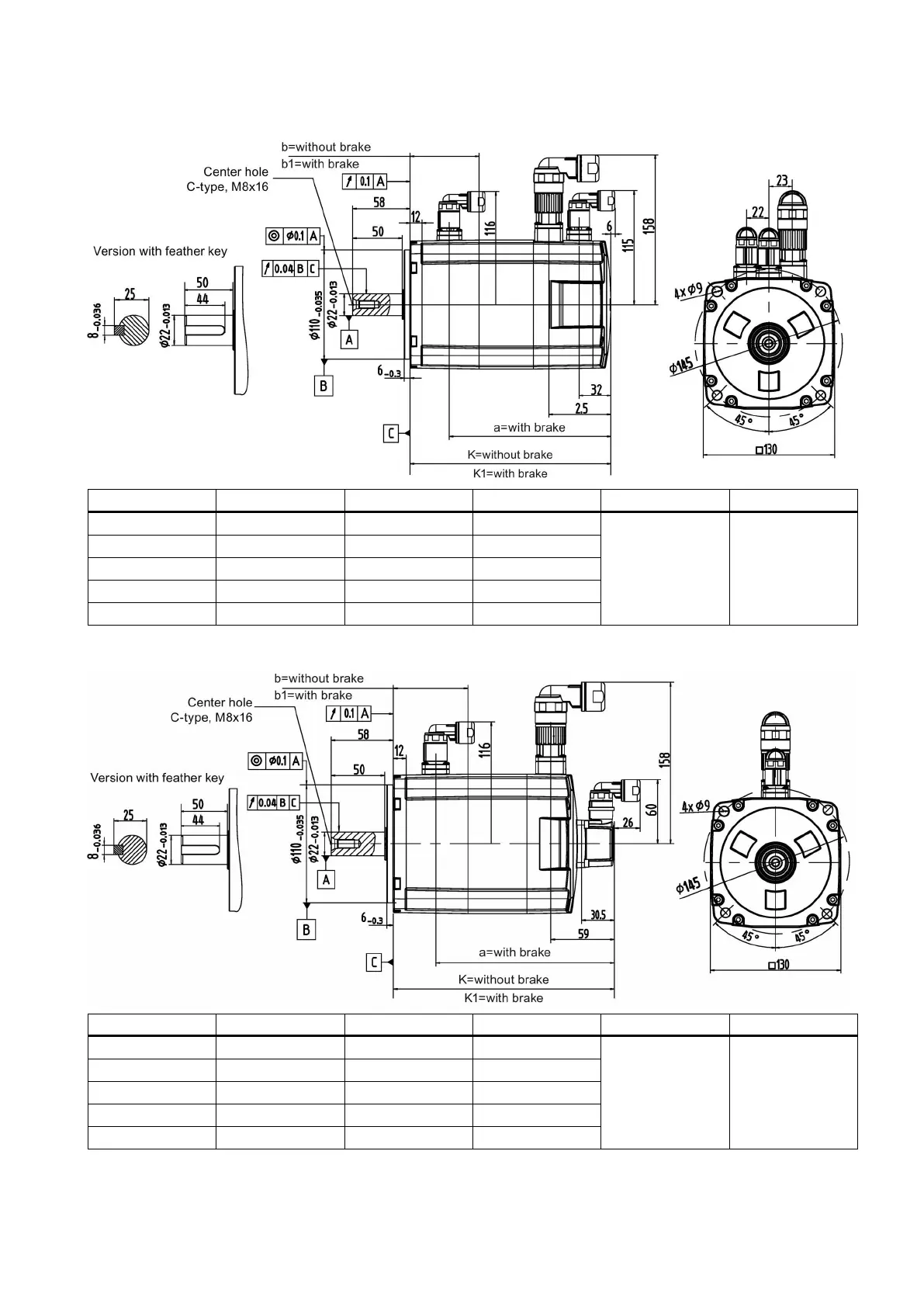

Shaft height 65 mm, with the incremental encoder
Stall torque
k
k1
a
b
b1
4 Nm
148
202.5
163
15 69.5
6 Nm
181
235.5
196
8 Nm
181
235.5
196
11 Nm
214
268.5
229
15 Nm
247
301.5
262
Shaft height 65 mm, with the absolute encoder
Stall torque
k
k1
a
b
b1
4 Nm
151
205.5
166
15 69.5
6 Nm
184
238.5
199
8 Nm
184
238.5
199
11 Nm
217
271.5
232
15 Nm 250 304.5 265
