Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
70 01/2017

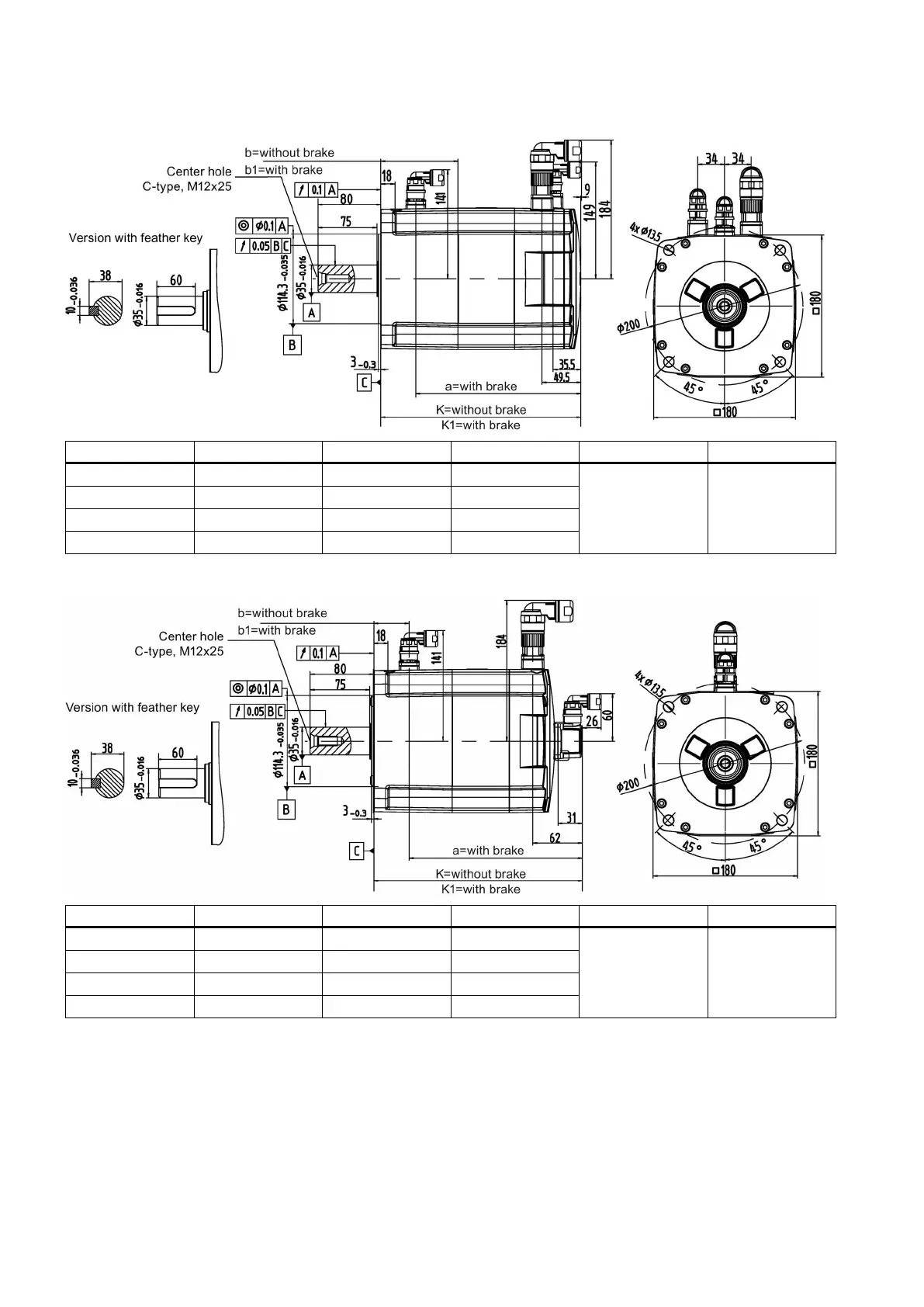

Shaft height 90 mm, with the incremental encoder
Stall torque
k
k1
a
b
b1
15 Nm 189.5 255 210.5 33 98.5
22 Nm
211.5
281
236.5
30 Nm
237.5
307
262.5
40 Nm
289.5
359
314.5
Shaft height 90 mm, with the absolute encoder
Stall torque
k
k1
a
b
b1
15 Nm
197
263
218
33 98.5
22 Nm
223
289
244
30 Nm
249
315
270
40 Nm
301
367
322
