2.2 Project example
2.2.1 Task description
In the project example you create the dialogs described in the following, including a context-
sensitive help.
Dialog 1
R parameters that can be written to (0 and 1) and geometry axis names are displayed in the
first dialog (input fields). The corresponding help screens are linked in for the two R parameters.
A context-sensitive help is linked in for the geometry axes. Further, the dialog includes
examples for separating lines (horizontal and vertical), toggle fields, input/output fields with
integrated unit selection and progress bars (with and without color change).

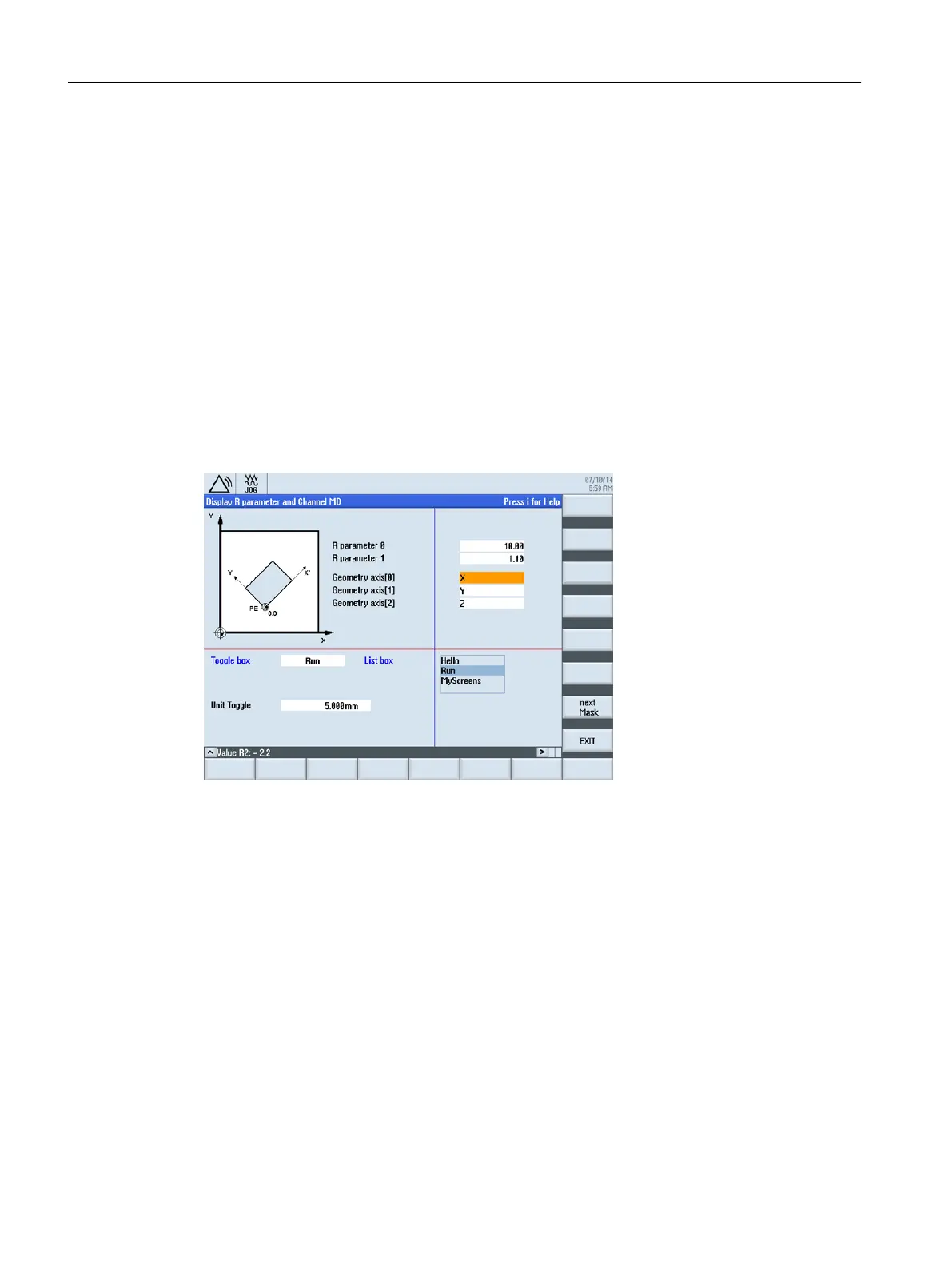

Figure 2-1 R parameters with help displays
Getting Started
2.2 Project example
SINUMERIK Integrate Run MyScreens (BE2)
14 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1
