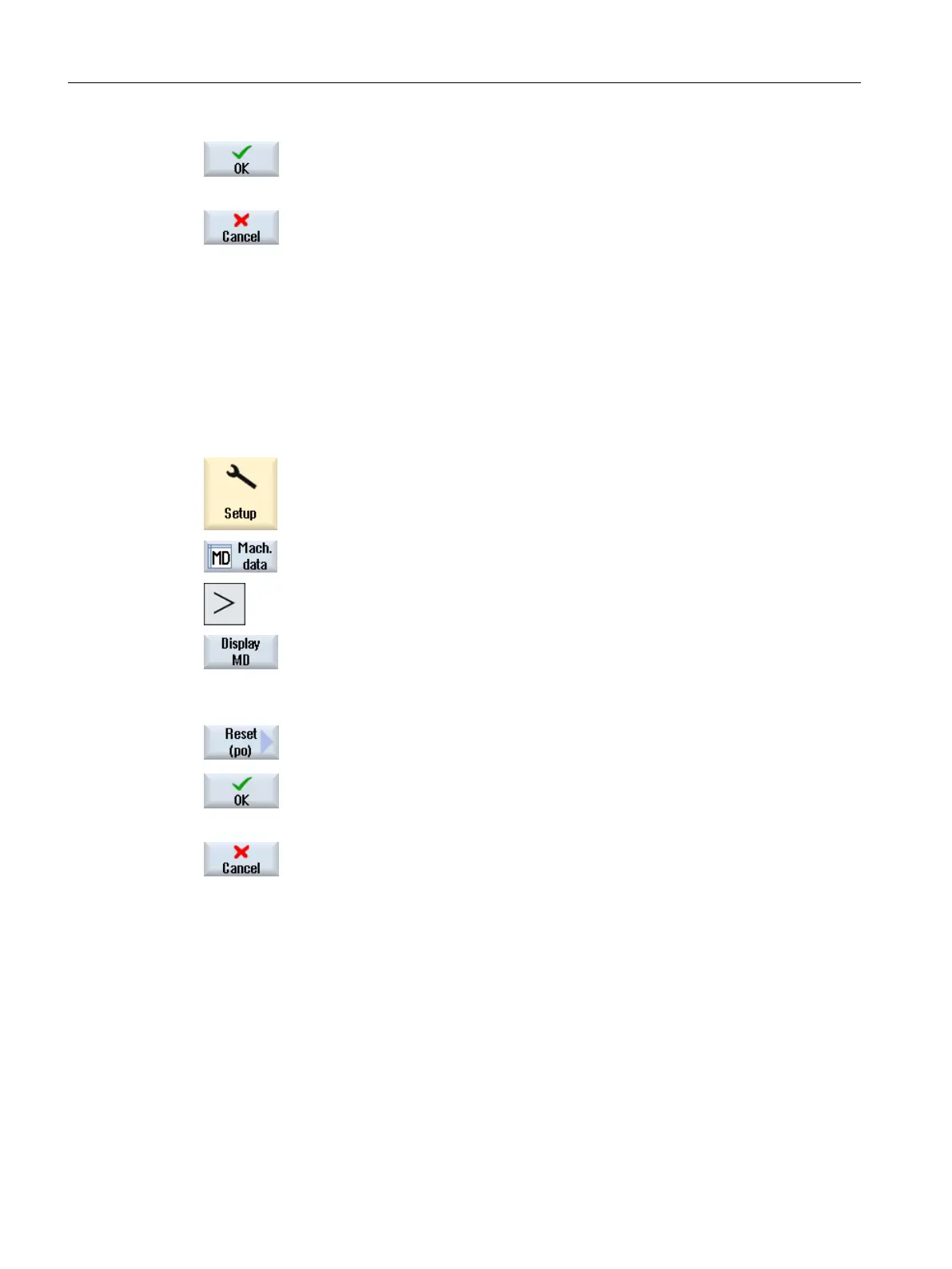

3. Press the "OK" softkey to save the setting.
- OR -
Press the "Cancel" softkey to reject the settings.
7.3 Displaying/editing display machine data
You can access the display machine data via the user interface in the "Start-up" operating
area.
Procedure
1. Select the "Start-up" operating area.
2. Press the "Mach. data" softkey.
3. Press the menu forward key.
Further softkeys are displayed.
4. Press the "Display MD" softkey.
The display machine data appears.
5. Position the cursor on the entry to be modified and enter the required
value.
6. Press the "Reset (po)" softkey.
A safety prompt appears.
7. Press the "OK" softkey to trigger a warm restart.
- OR -
Press the "Cancel" softkey if you do not want to apply the settings.
7.4 Displaying/editing setting data
You can access the following setting data via the user interface in the "Startup" operating
area.
● General setting data
● Channel-specific setting data
● Axis-specific setting data
Machine and setting data
7.4 Displaying/editing setting data
SINUMERIK Operate (IM9)
98 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
