Siemens SINUMERIK 840D sl Commissioning Manual

Procedure

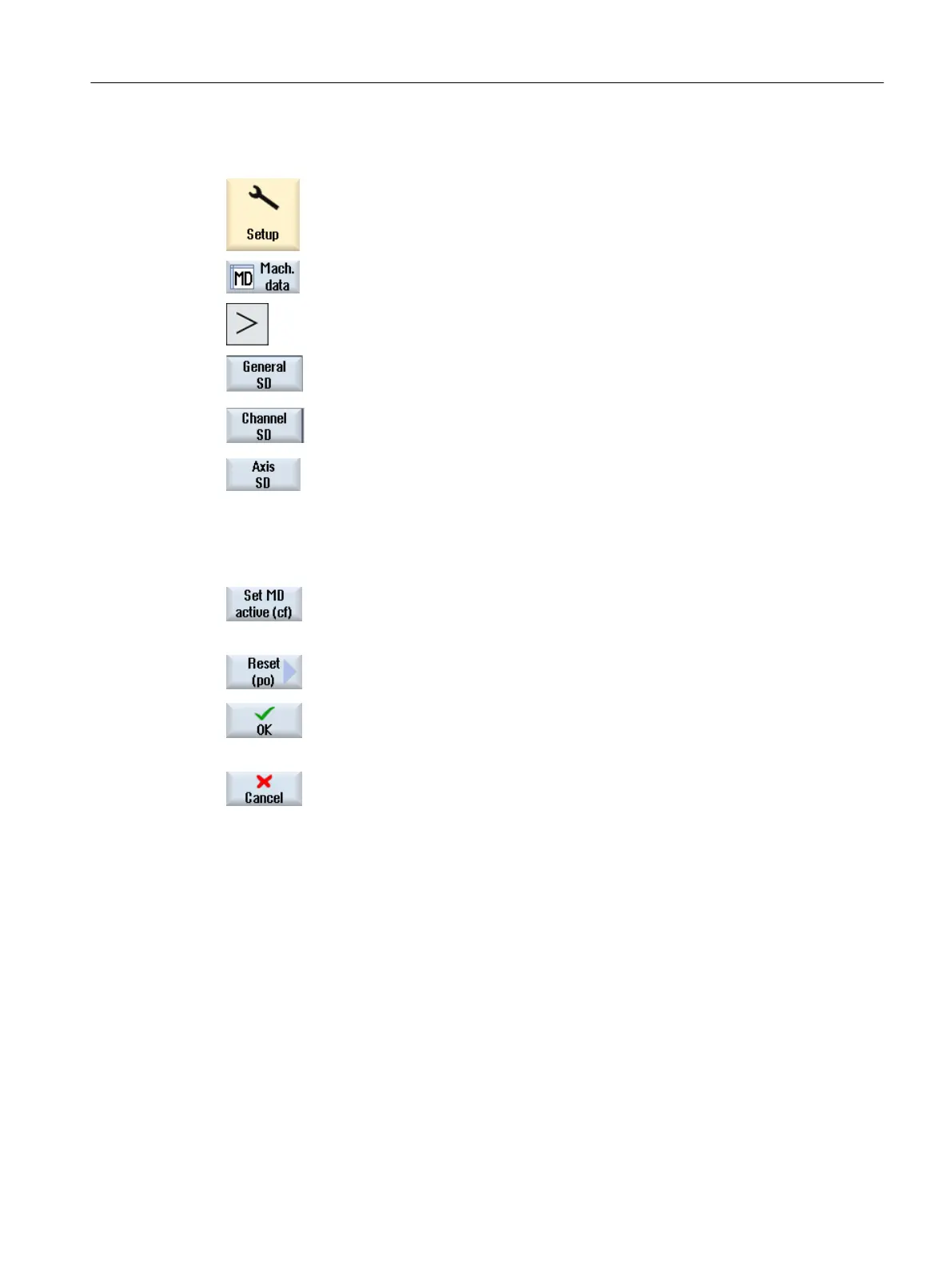

1. Select the "Start-up" operating area.
2. Press the "Mach. data" softkey.
3. Press the menu forward key.
The softkeys "General SD", "Channel SD", and "Axis SD" are displayed.
4. Press the relevant softkey to display a particular setting data area.
The window opens and the selected setting data is displayed.
5. Place the cursor on the desired setting data and position the cursor on
the entry to be changed. Enter the desired value.
6. Depending on the activation type, there are two ways of activating the
settings:
Press the "Activate MD (cf)" softkey.
- OR -
Press the "Reset (po)" softkey.
A safety prompt appears.
7. Press the "OK" softkey to trigger a warm restart.
- OR -
Press the "Cancel" softkey if you do not want to apply the settings.
Machine and setting data
7.4 Displaying/editing setting data
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 99

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
