Siemens SINUMERIK 840D sl Commissioning Manual

There are two variants of cylinder surface transformation, i.e.
1. with groove side offset (ON)
2. without groove side offset (OFF)
:LWKRXWJURRYHVLGHRIIVHW
/RQJLWXGLQDOJURRYHZLWKSDUDOOHOOLPLWDWLRQ
:LWKJURRYHVLGHRIIVHW
7UDQVYHUVHJURRYH/RQJLWXGLQDOJURRYH

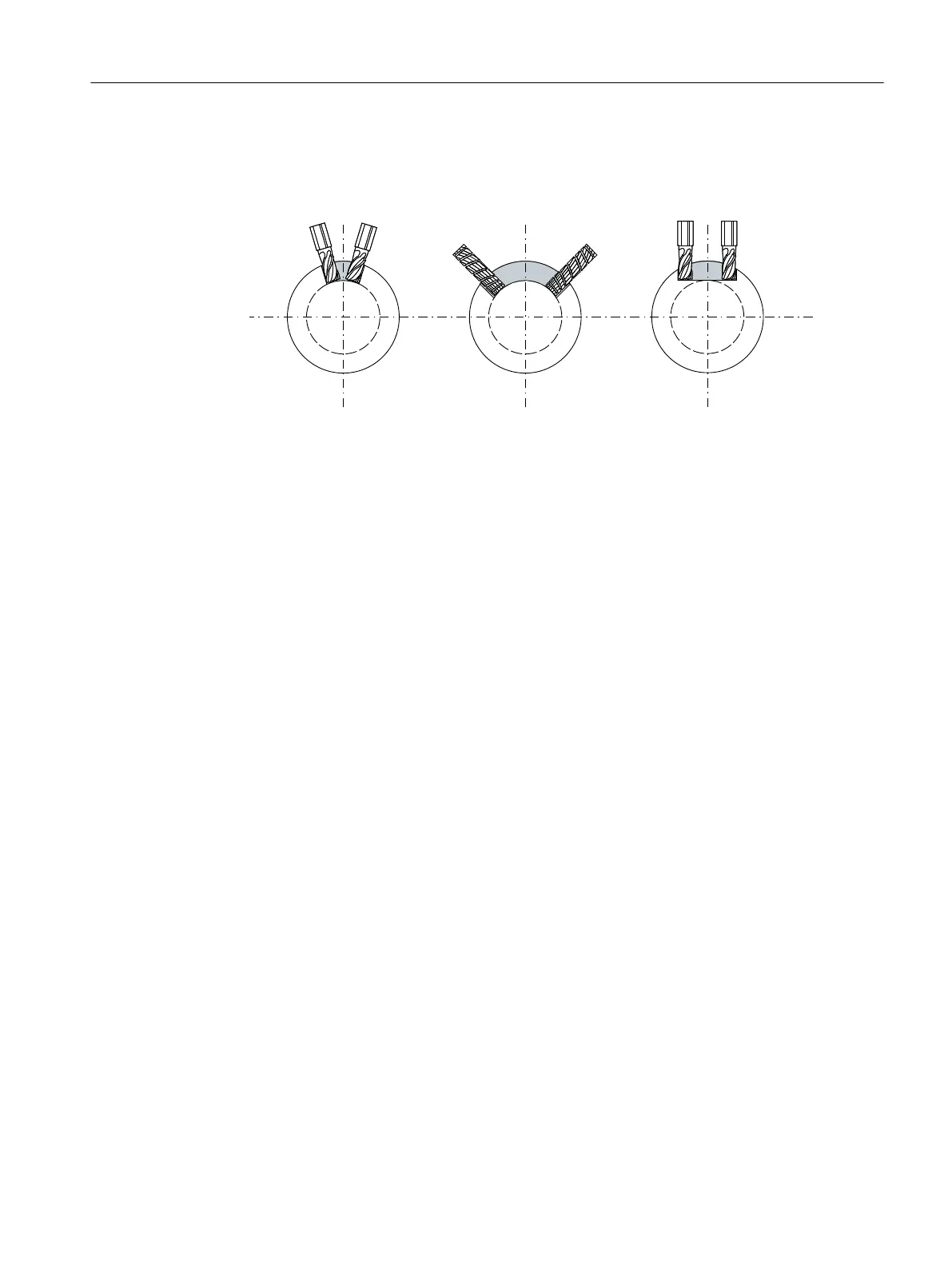

Figure 21-1 Grooves with and without groove side offset
21.4.5 Example: Milling machine with the XYZ-AC axis configuration
Example: Milling machine with the XYZ-AC axis configuration
Example of an axis configuration on the following machine:
Technologies and cycles
21.4 Milling
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 523

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
