Siemens SINUMERIK 840D sl Commissioning Manual

4.13 Calibrating the touch operation of a screen
If you use an operator panel or screen with touch functionality, you may have to calibrate it.
The calibration of the touch functionality is always relative to the set screen resolution and is
specifically saved for it after the calibration.
Requirement
● The Service Desktop is active.
Procedure
To calibrate the touch functionality of a screen, proceed as follows:
1. In the Start menu, click "Start > All Programs > Touchware > UPDD".
The "TouchWare Properties" dialog box opens.

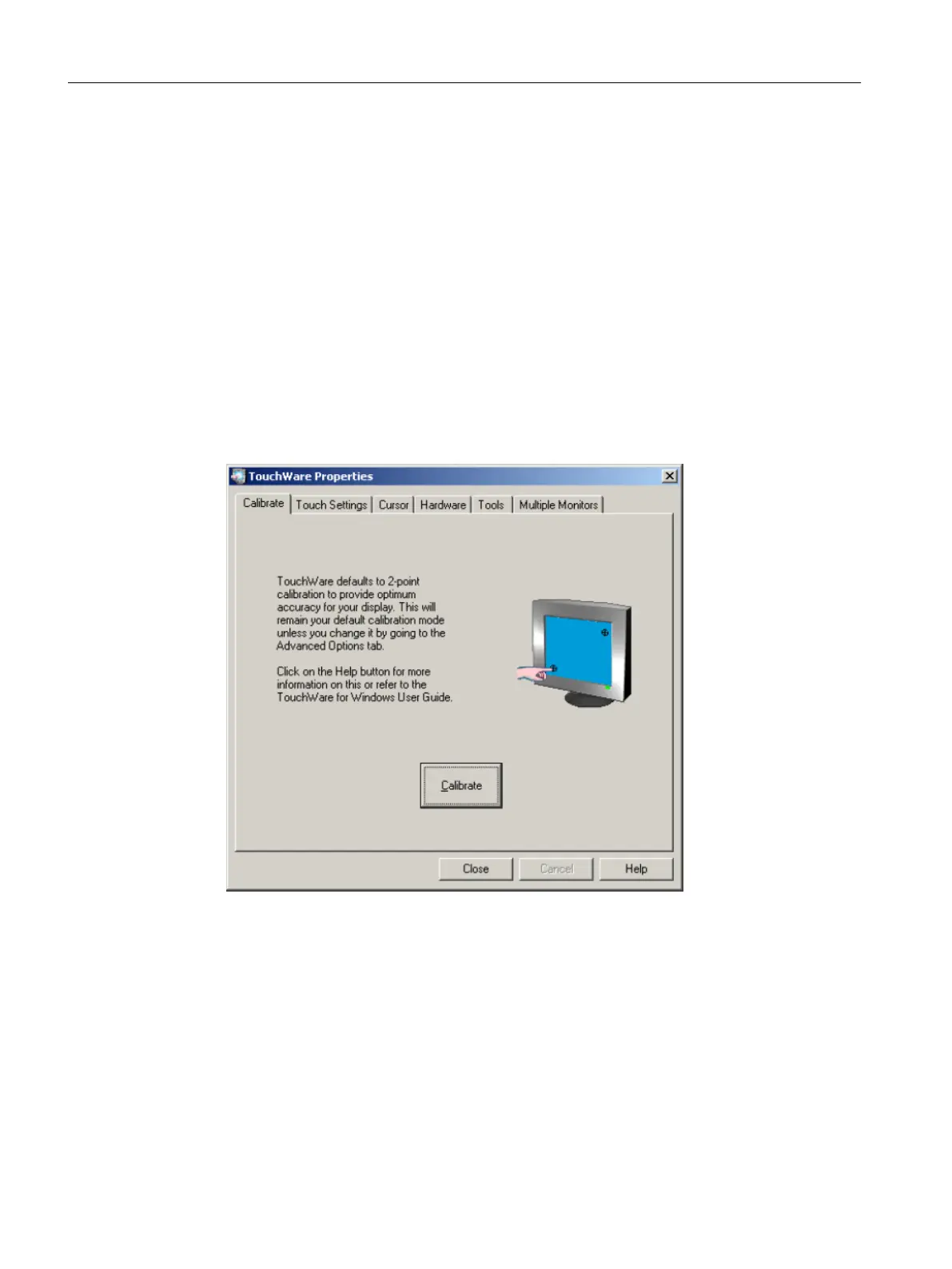

2. In the "Calibrate" tab, click on "Calibrate" and follow the instructions that appear on screen.
You can find additional information in the dialog via the "Help" button.
Configuration of the system
4.13 Calibrating the touch operation of a screen
PCU Base Software (IM10)
44 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
