Siemens SINUMERIK 840D sl Commissioning Manual

Configuring the system
2.1 System settings
PCU-Basesoftware (IM8)
Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
47
2.1.4
How to add the PCU to a domain
Requirement
Only a user with the corresponding entitlement, e.g. a domain administrator, can add a PCU
to an existing domain.
Domain Controller (DC)
A domain controller (DC) is a server for central authentication and authorization of
computers and users in a network. In a network with a domain controller, several computers
are combined to form one domain.
Proceed as follows
To add the PCU to a domain:
1. Select: "Start" → "Settings" → "Control Panel" → "System", "Computer Name" tab.
Default: The PCU belongs to a "WORKGROUP" and is not assigned to any domain.
2. Click "Change ...".
The following dialog opens:

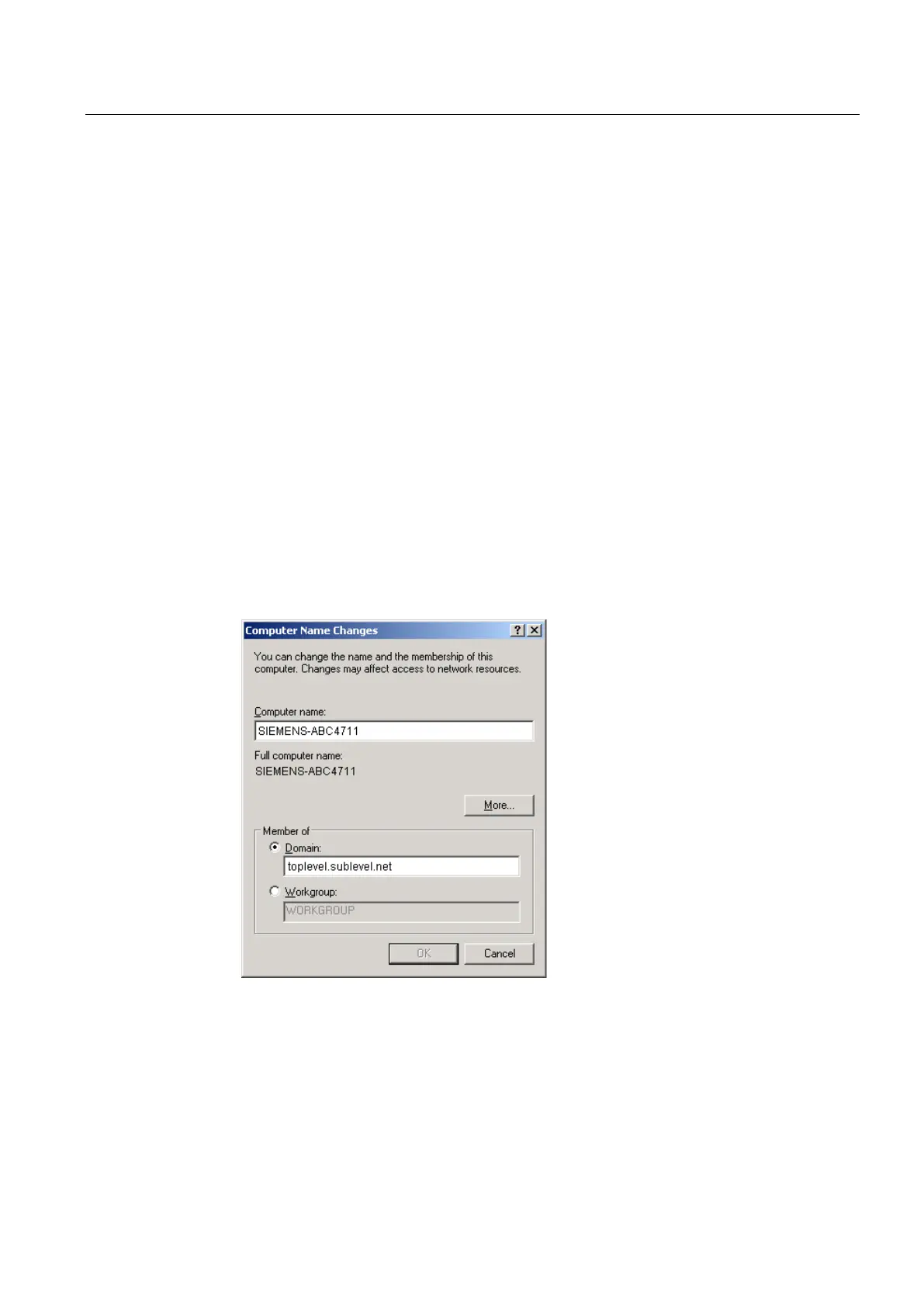

Figure 2-2 Add PCU to domain
3. Enter the name of the domain to which you want to add the PCU.
4. You will then be asked to log on as a user with the corresponding entitlement to conclude
the process.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
