Siemens SINUMERIK 840D sl Commissioning Manual

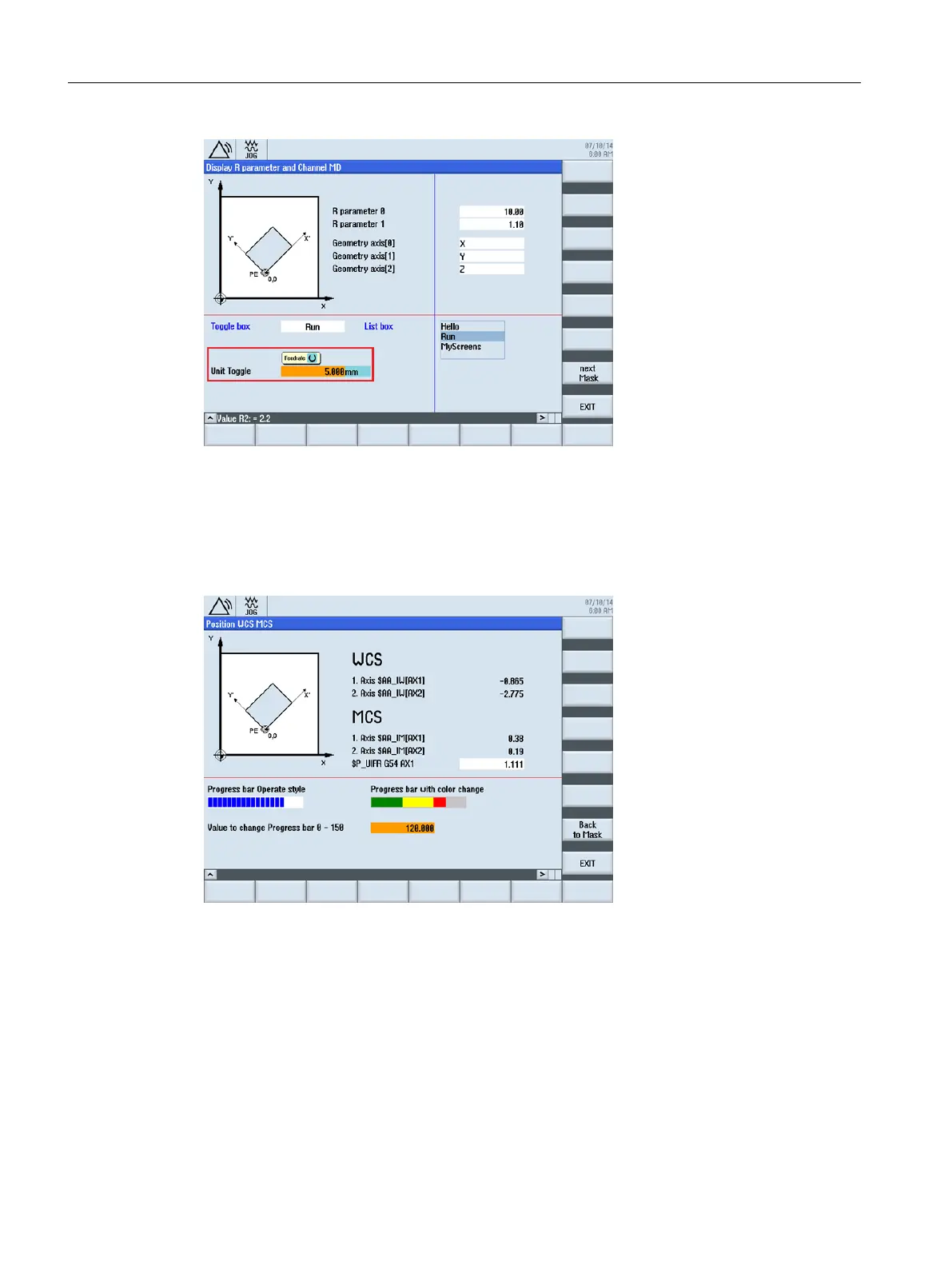

Figure 2-4 I/O field with integrated unit selection
Dialog 2
MCS and WCS values are displayed in the second dialog. The dialog also contains examples
of progress bars with and without color change.
Figure 2-5 Progress bars with (right) and without (left) color change
Getting Started
2.2 Project example
SINUMERIK Integrate Run MyScreens (BE2)
16 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
