Y = Y2 / factor - offset
Formula for converting Y to Y2:
Y2 = (Y + offset) * factor

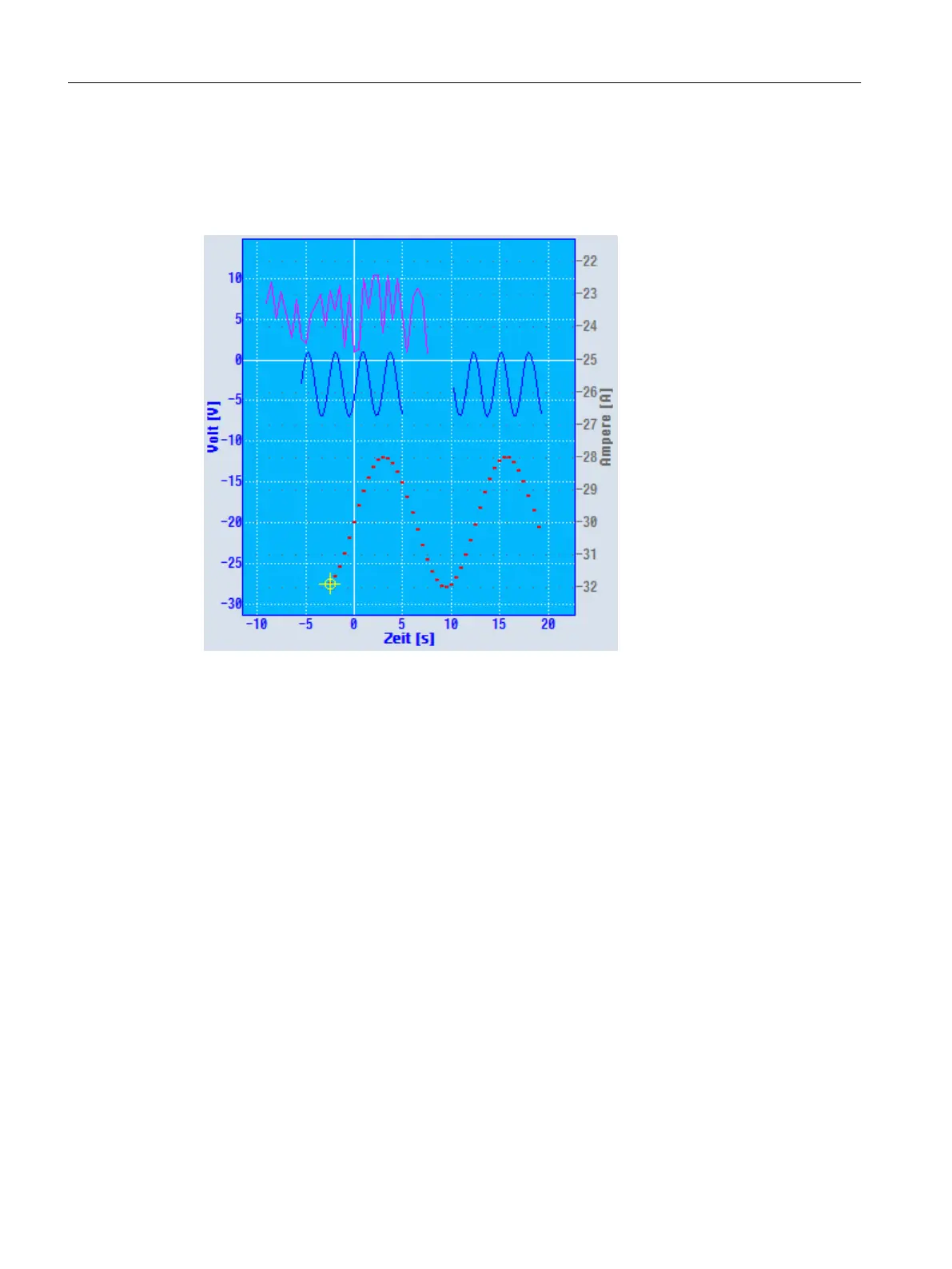

Figure 7-2 Example with second Y axis with own scaling
Example
Y: 0 to 200 should correspond to Y2: -25 to 25.
● Offset: -100
● Factor: 0.25
Calculation example:
Y2 = -30
Y = -30 / 0.25 – (-100) = -20
Calculation example:
Y = 0
Y2 = (0 + (-100)) * 0.25 = -25
The X axis is the same for both coordinate systems.
You can set the colors using setForeColorY2() and setGridColorY2() (see colors).
The axes are labeled with setAxisNameY2() (see axis identifiers).
Graphic and logic elements
7.5 SIEsGraphCustomWidget
SINUMERIK Integrate Run MyScreens (BE2)
222 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
