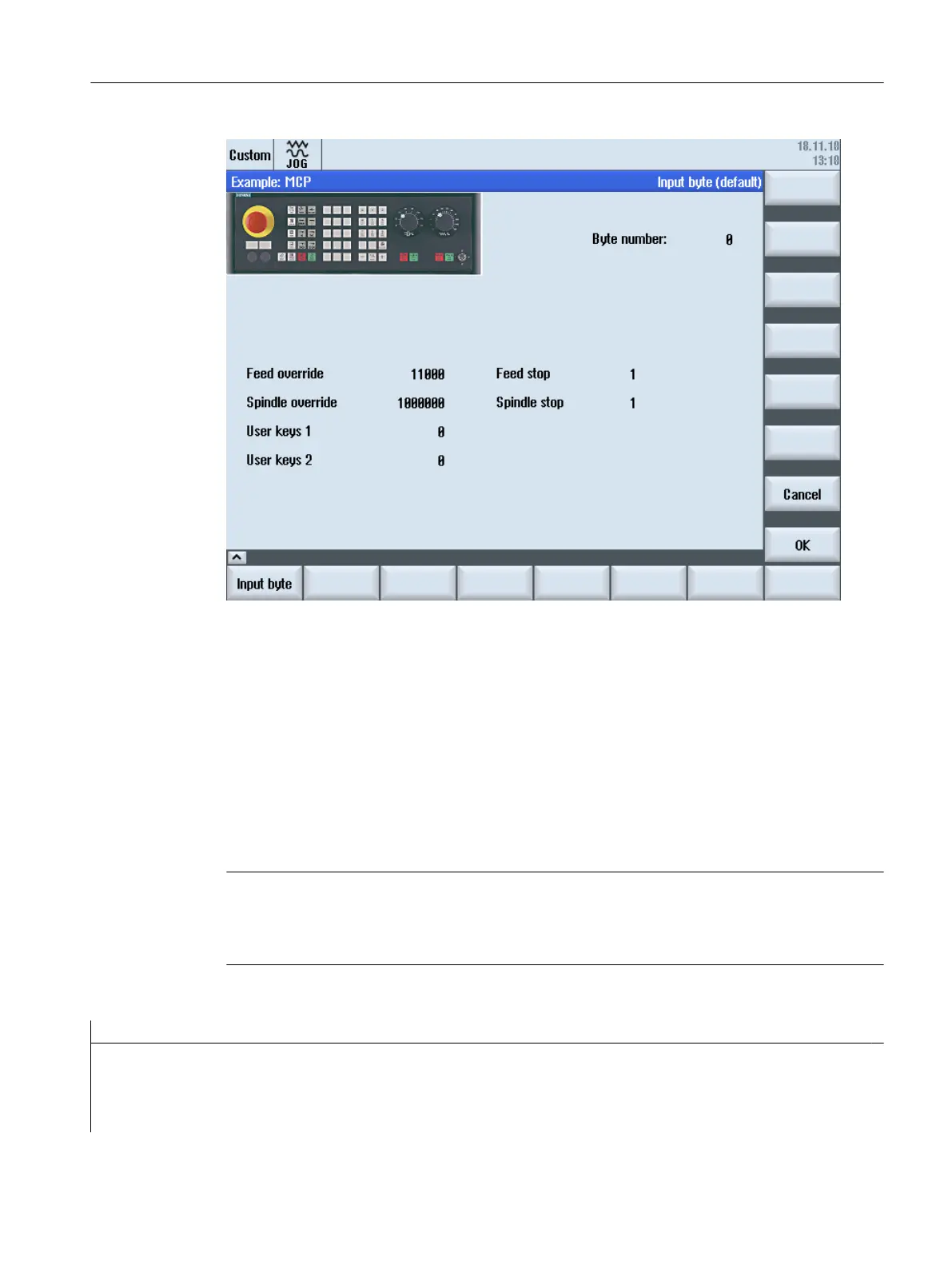

Figure 8-2 Example with bitmap and text fields
File overview
The following files are required:
● custom.com
● easyscreen.ini
Programming
Content of the custom.com file:
Note
The graphic file mcp.png integrated in the example is also only a sample file. If you wish to
use this programming example in your application, you must replace the graphic by one of
your own graphics.
//S(Start)
HS7=("Start example", se1, ac7)
PRESS(HS7)
LM("Maske4")
"Custom" operating area
8.4 Programming example for the "Custom" area
SINUMERIK Integrate Run MyScreens (BE2)
Programming Manual, 12/2017, 6FC5397-1DP40-6BA1 277

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
