Siemens SINUMERIK 840D sl Commissioning Manual

Commissioning the system
1.3 Boot up behavior of the PCU
PCU-Basesoftware (IM8)
24 Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
●
"Desktop Access" dialog
– This dialog is displayed if
either
no HMI program is installed, the installation has been
skipped
or
the start of the HMI program has been deactivated during startup.
Displaying this dialog can be suppressed through configuration in the global or user
settings. "Desktop" is then selected as the default.

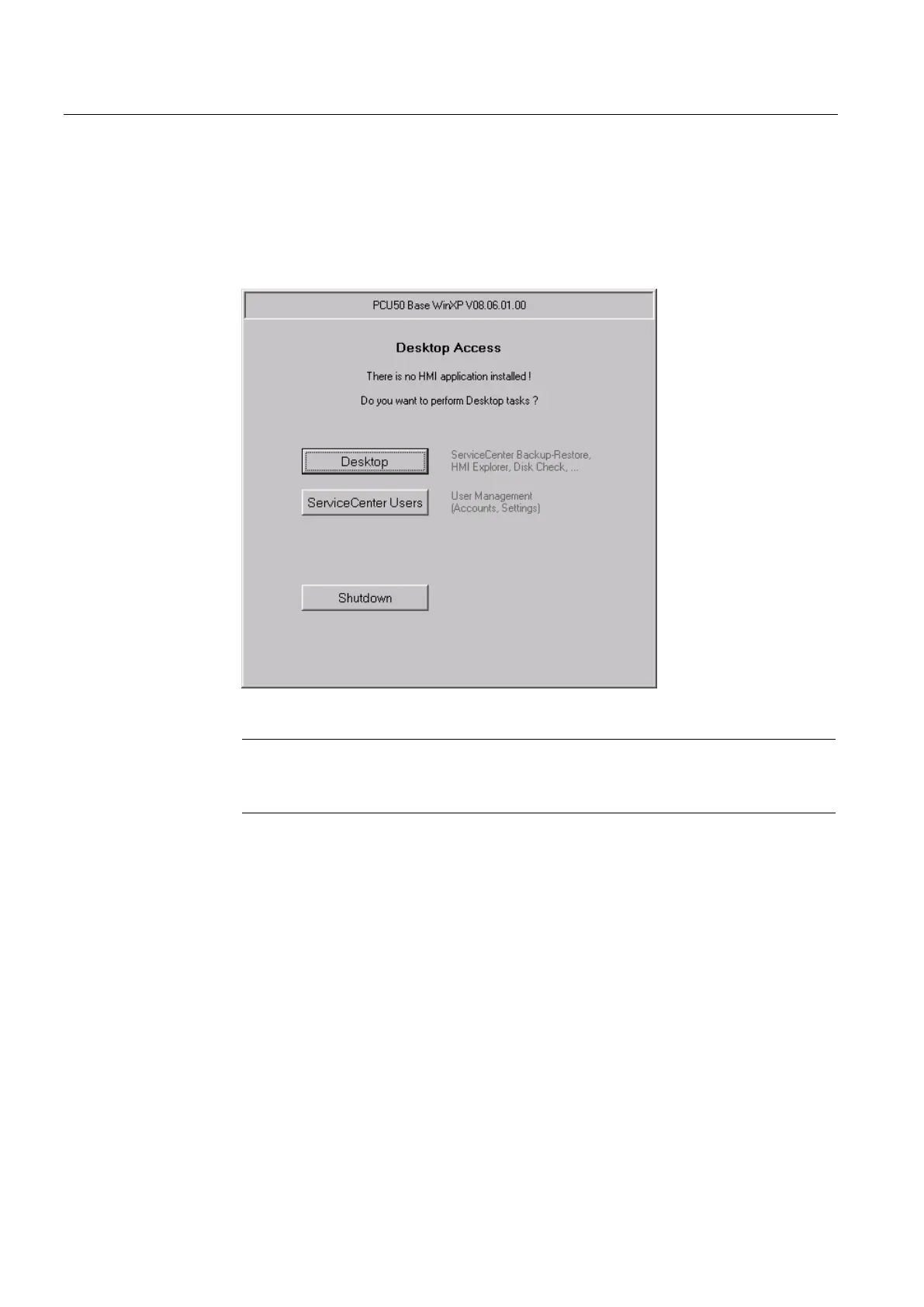

Figure 1-11 Desktop Access (example without HMI program)
Note
If an HMI program is installed, the "Start HMI" button is also avai
lable in the "Desktop
Access" dialog.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
