Siemens SINUMERIK 840D sl Commissioning Manual

6HUYLFH3&
7HOHVHUYLFHDGDSWHU
1&8
6,180(5,.2SHUDWH
RQ3&8
;
;
;

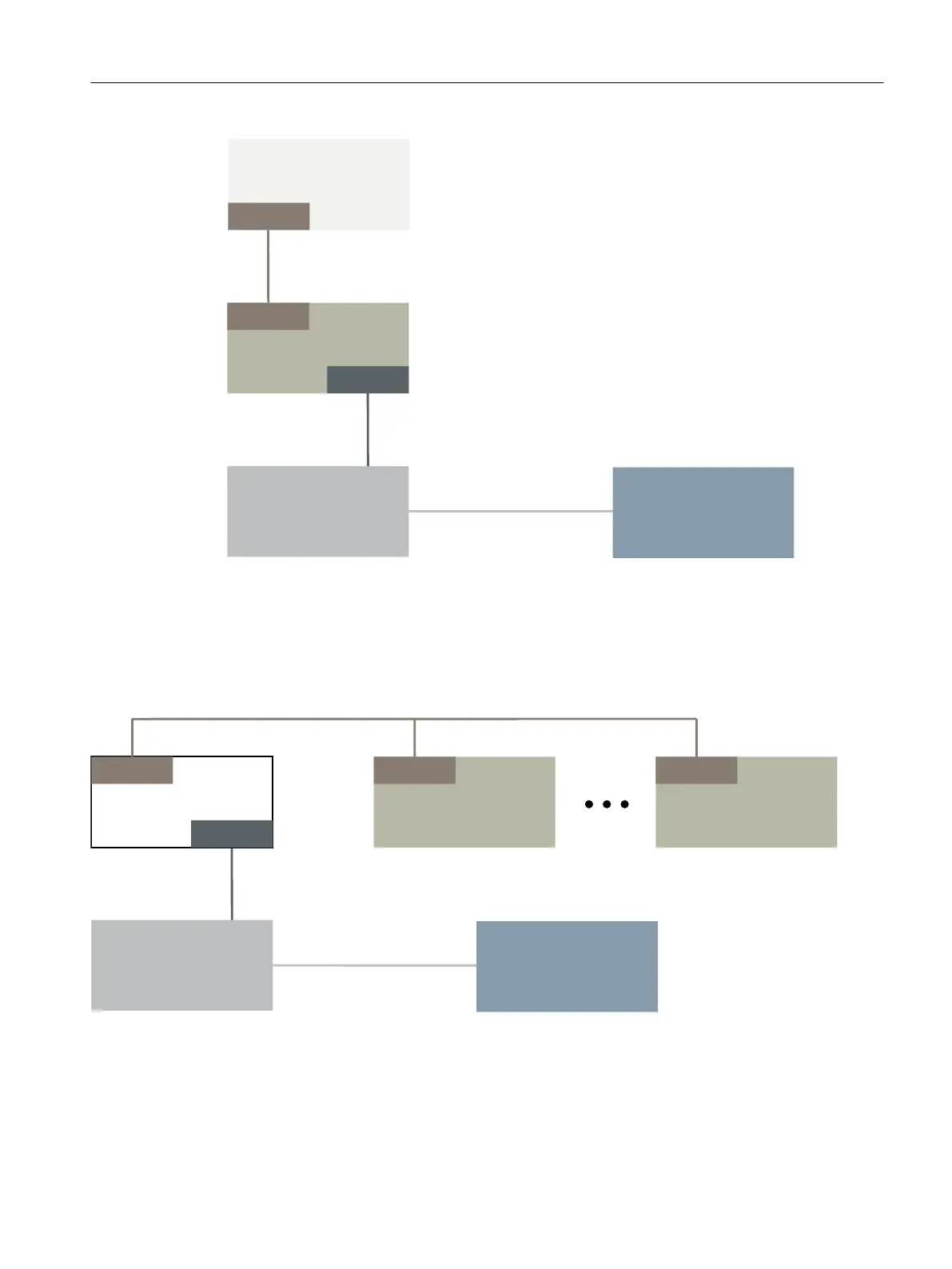

Figure 18-2 Basic system with SINUMERIK Operate on PCU
With the previously mentioned settings and the default values, in this configuration, remote
diagnostics via TS Adapter is possible without any additional changes having to be made.
When operating a SINUMERIK Operate on a PCU, the SINUMERIK Operate in the NCU must
be switched off.
6HUYLFH3&
7HOHVHUYLFHDGDSWHU
VW1&8QG1&8Q1&8
;
;
;;
Figure 18-3 System with several NCUs and a fixed modem
The "Access MyMachine /P2P" option only has to be set for the NCU to which the TS Adapter
is connected at the X127 interface. Modem access can only be permitted by making the
appropriate entries at the SINUMERIK Operate in this NCU and the "Request remote control"
function executed. If modem access is permitted, then the service PC implicitly has access to
all other NCUs and their operating software. On the other hand, the operating screens to control
Service and diagnostics
18.11 Remote diagnostics
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 455

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
