5RWDU\D[LV%
5RWDU\D[LV&
5HIHUHQFHSRLQWRIWKHPDFKLQH
0.6;<=
,
,\ 
,
,] 
,
9
9
,] 
;
=
<
Rotary axis vector V1 Rotary axis B rotates around Y and around Z.
Rotary axis vector V2 Rotary axis C rotates about Z.
Offset vector I2 The distance from the reference point of the machine to the center of rotation/
intersection of rotary axis 1.
Offset vector I3 The distance from the center of rotation/intersection of rotary axis 1 to the
center of rotation/intersection of rotary axis 2.
Offset vector I4 Closure of vector chain, I4 = - (I2 + I3).

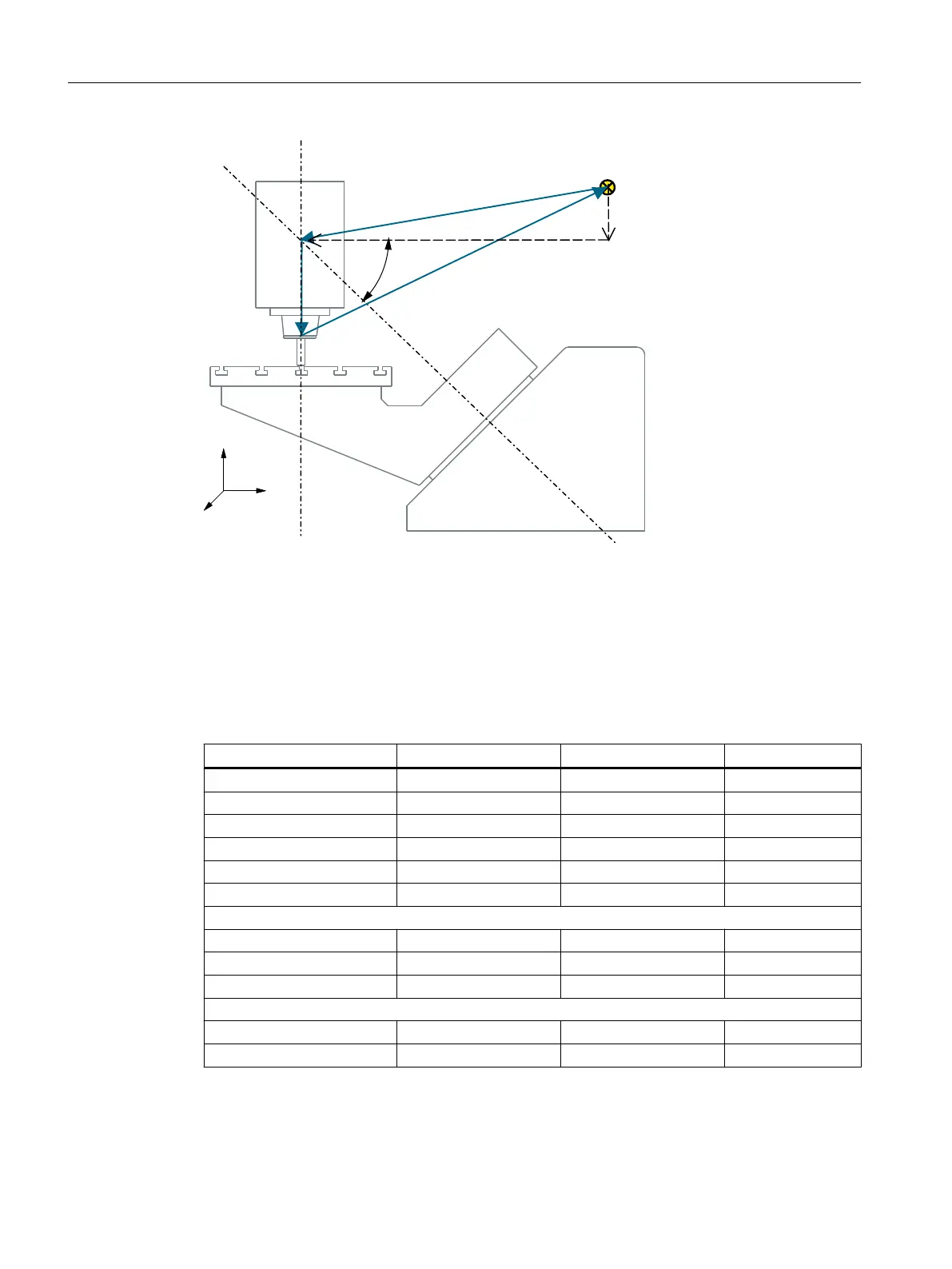

Figure 21-9 Side view of the machine
Kinematics Swivel table TABLE_45
X Y Z
Offset vector I2 0.000 -100.000 -20.000
Rotary axis vector V1 0.000 -1.000
1)
1.000
1)
Offset vector I3 0.000 0.000 -30.000
Rotary axis vector V2 0.000 0.000 -1.000
Offset vector I4 0.000 100.000 50.000
Display version
Swivel mode Axis-by-axis
Direction reference Rotary axis 2
Correct tool No
Rotary axes
Rotary axis 1 B Mode Auto
Angular range 0.000 180.000
Technologies and cycles
21.7 Swiveling
SINUMERIK Operate (IM9)
582 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
