<control name="name" xpos="x position" ypos="y position"
fieldtype="pushbutton" refvar="button_state" hotlink="true" >
<caption></caption>
<property checkable="true" />
</control>

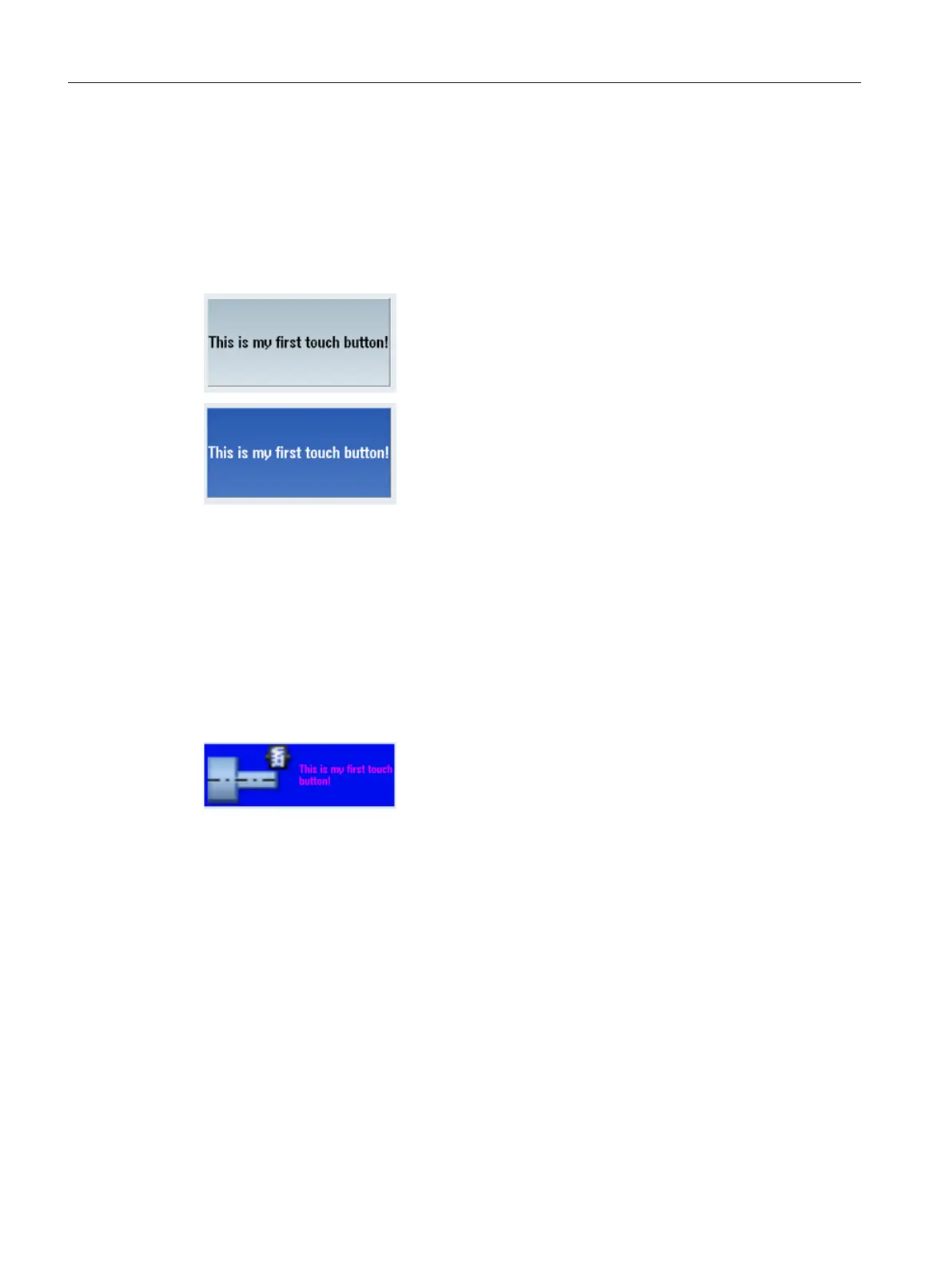

Not checked
Checked
Example
<control name="name" xpos="x position" ypos="y position"
fieldtype="pushbutton" refvar="button_state" hotlink="true"
color_fg="#ff00ff" color_bk="#000eee">
<property checkable="true" />
<caption></caption>
<property picture="sk_circ_grind_cg.png" alignment="left"
TextAlignedToPicture="true" scaled="true"/>
</control>
Generating user dialogs
1.12 Configuring your own buttons
Easy XML
