Procedure
1. Start the OPC UA "Sample client".

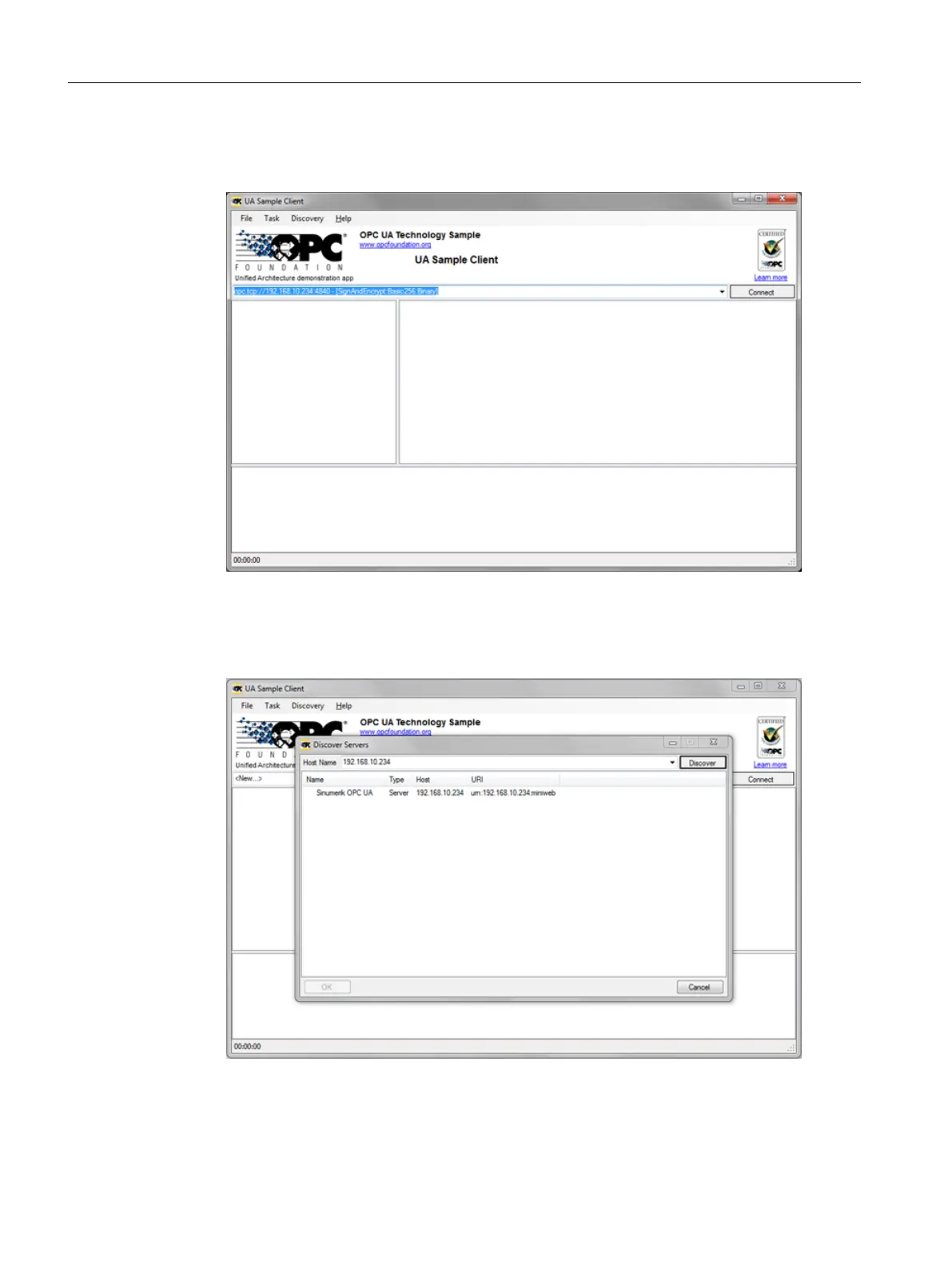

Figure 3-5 Sample Client main window
2. Select the "New" entry from the drop-down list.
The "Discover Servers" window opens.
3. Now enter the IPv4 address of the target system and click the "Discover" button.
Figure 3-6 Discover servers
4. The SINUMERIK OPC UA server appears in the list. Select the server and confirm with
"OK".
Setting up of OPC UA server
3.5 Testing the connection
SINUMERIK Integrate for Engineering Access MyMachine / OPC UA
26 Configuration Manual, 12/2017, 6FC5397-1DP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
