Replacing boards / replacing components 6 - 47
Siemens AG SPR2-230.061.01 Page 47 of 48 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Angulation part 6
• If the toothed wheel (1/Fig. 25) was turned several times during transport, prior to instal-
lation the perpendicular must be turned in one direction until the markings coincide again
when the angulation part is vertical.
• Move the C-arm to the 0° position.
• Disconnect the cable of the actual value potentiometer.
• Loosen the fastening screws of the angulation part.
• Replace the angulation part. In doing so, ensure that, when the C-arm is perpendicular,
the markings (black lines) on the two toothed wheels coincide.
• Reconnect the cable of the actual value potentiometer.
Perform the mechanical settings according to the Startup Instructions, Chapter 6.

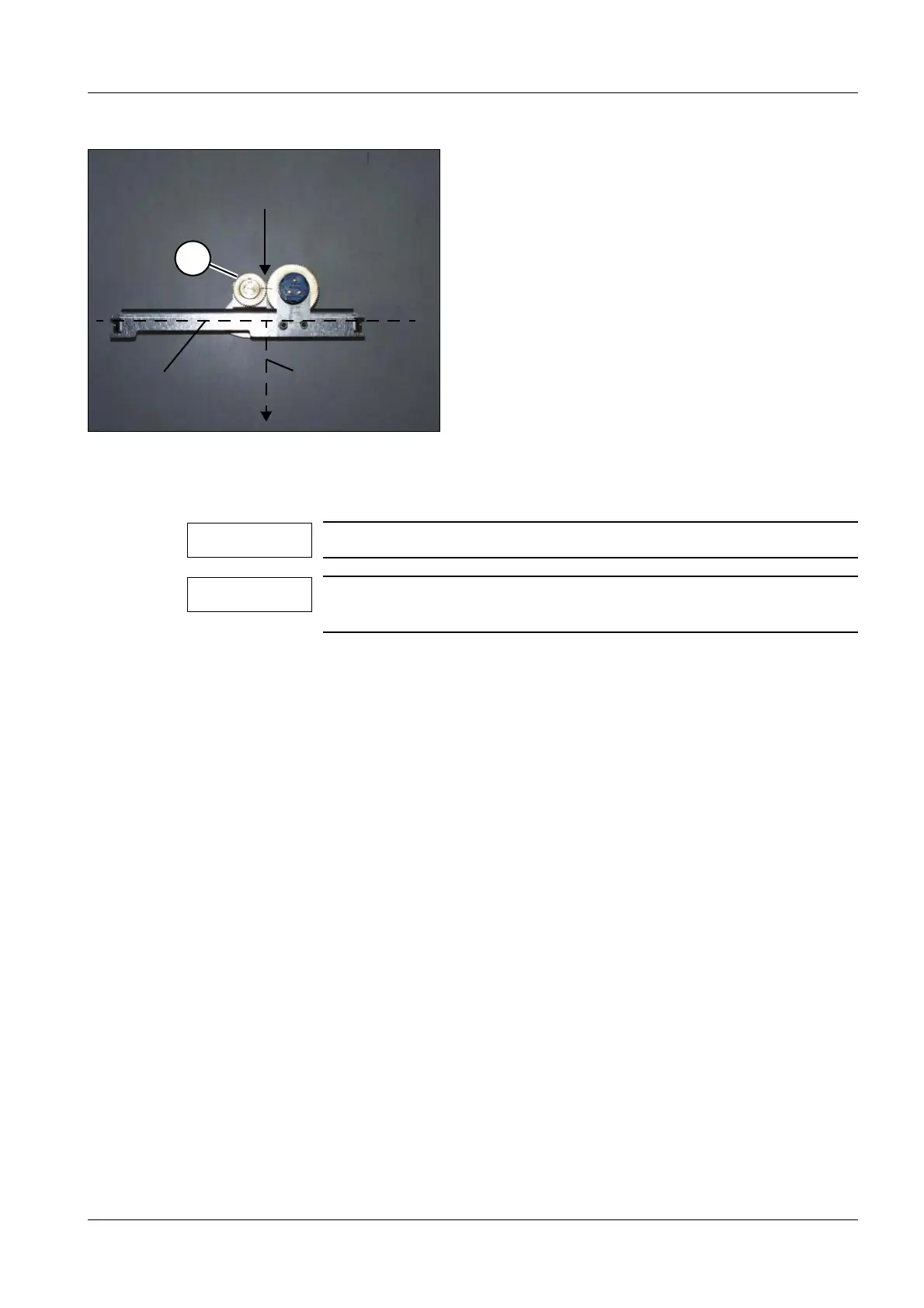

Fig. 25
Only applies to SIREMOBIL Iso-C 3D.
When the angulation part is vertical, the markings on the two
toothed belts must coincide (see Fig. 25).
Horizontal line
Perpendicular line
Marker
1
NOTE
NOTE
