Prerequisites 1 - 15
Siemens AG SPR2-230.061.01 Page 15 of 18 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Installing/ removing the C-arm covers

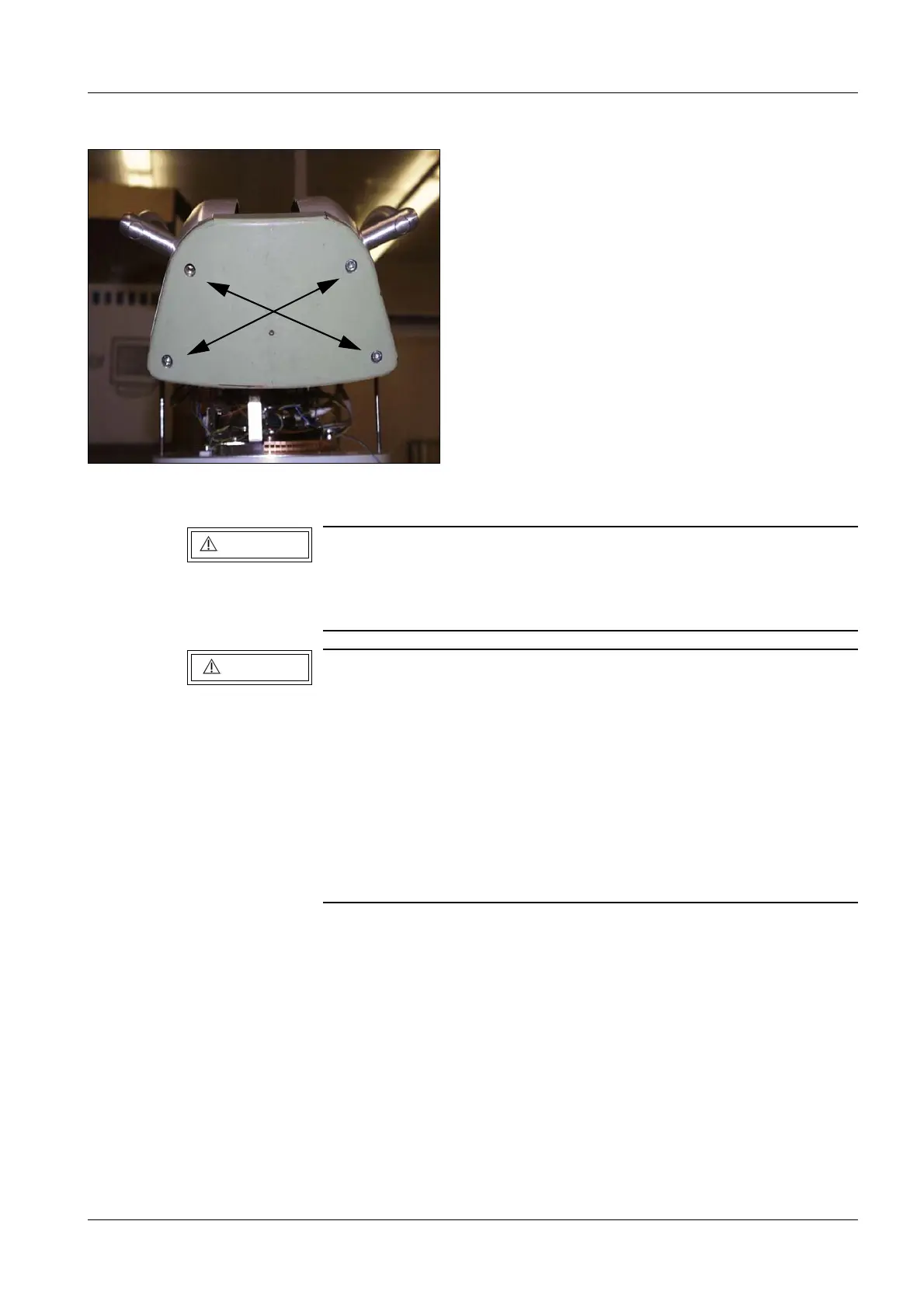

• Remove the 4 mounting screws (Fig. 2). Hold the covers firmly while removing them.
• Install them following the same procedure in the reverse order.
Monitor trolley 1
Removing the covers 1
• Remove the upper back cover plate of the logbook compartment.
• Remove the protective conductor.
• Remove the lateral Allen screws from the lower back cover.
• Remove the protective conductor from the cover.
Fig. 7
Risk of injuries on mechanical parts!
If not observed, slight to medium injuries, especially to the hands,
can occur.
Observe the notes concerning the C-arm carbon fiber structure.
Risk of injury!
Noncompliance can lead to light to medium injuries and/or
property damage.
The C-arm covers contain counterbalance weights and weigh
approx. 6 kg.
Hold the covers firmly when installing or removing them.
Before the C-arm cover will be loosened, the C-arm must be
moved to its middle orbital position.
If the C-arm covers are loosened, the C-arm may not be moved to
its orbital end positions (I.I. or SIREPHOS at the orbital end posi-
tion).
WARNING
CAUTION
