I.I. service position 1
Moving the I.I. into the service position 1
• Take the service screws from the kit supplied.
• Move the C-arm into the vertical position, with the I.I. below and the SIREPHOS above.
• Remove both attachment screws for the I.I. and replace them with the service screws.
• Insert the service screws at least 5 turns into the threaded holes of the I.I.
• Hold the I.I. firmly and turn the C-arm so that the I.I. is above and the SIREPHOS is be-
low (Angulation).
• Hold the I.I. firmly and carefully remove it from the C-arm. Be careful not to damage the
cable.
Installing the I.I. 1
• Move the C-arm into the vertical position with the I.I. below, the SIREPHOS above.
• Holding the I.I. firmly, carefully lift it up. Be careful of the cable.
• Holding the I.I. firmly, move the C-arm so that the Sirephos is above and the I.I. is below
(Angulation).
• Carefully insert the I.I. into the C-arm. When doing this, be careful not to damage the ca-
ble.
• Remove both the service screws from the threaded holes of the I.I. and reinstall both the
attachment screws.

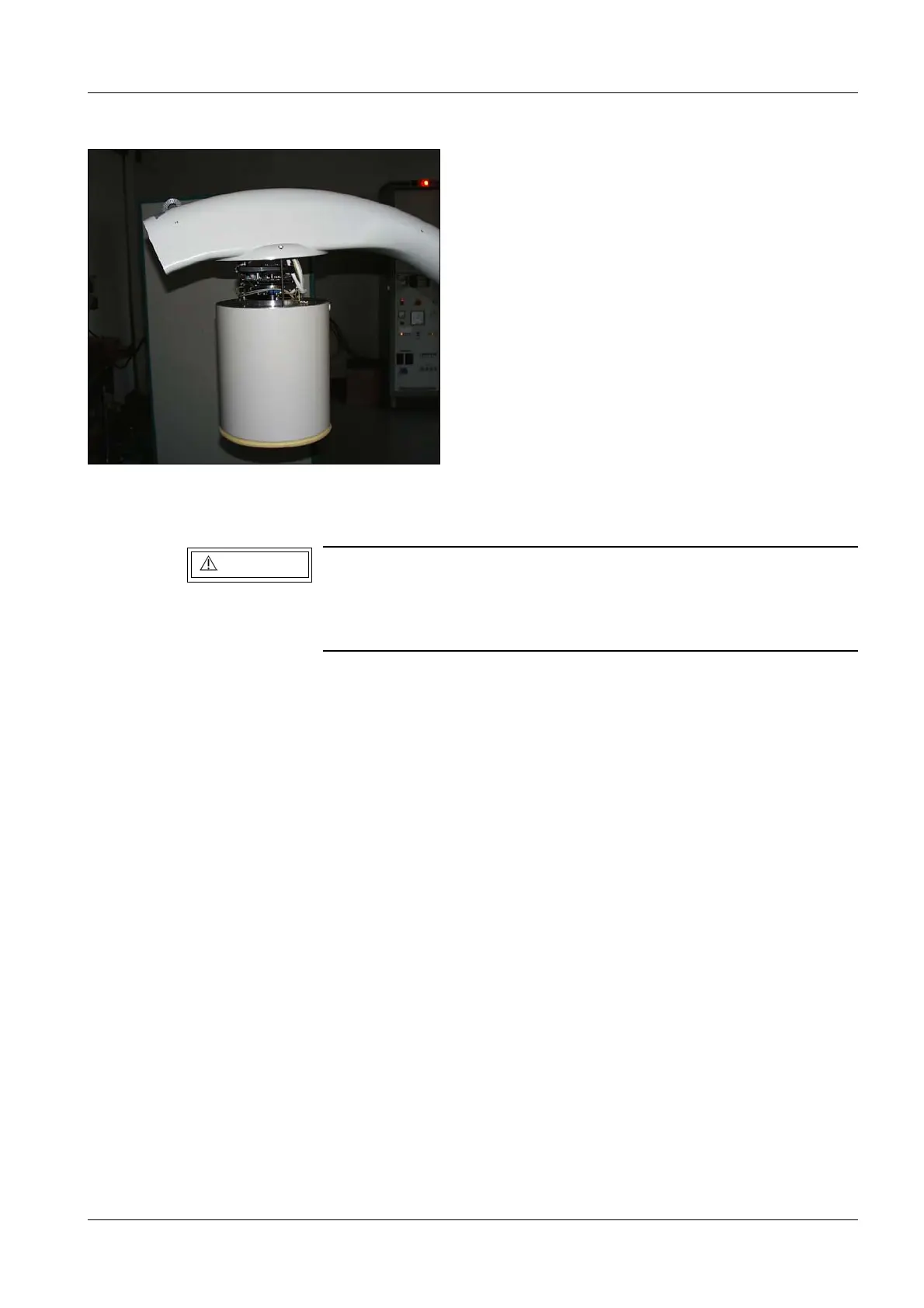

Fig. 8
Risk of injuries on mechanical parts!
If not observed, slight to medium injuries, especially to the hands,
can occur.
Observe the notes concerning the C-arm carbon fiber structure.
WARNING
