Tensioning the drive belt 7
• Move the C-arm to the middle orbital position.
• Remove the C-arm counterbalance weight on one side of the C-arm.
• Slacken the drive belt (1/Fig. 9).
• Loosen the holder of the drive belt (1/Fig. 10).
• Adjust the drive belt in the holder by one tooth to tension it. Then fasten it again.
• Reattach the holder of the drive belt.
• Tension the drive belt (1/Fig. 9).
• Reinstall the C-arm counterbalance weight.
• Repeat the procedure at the other end of the C-arm.

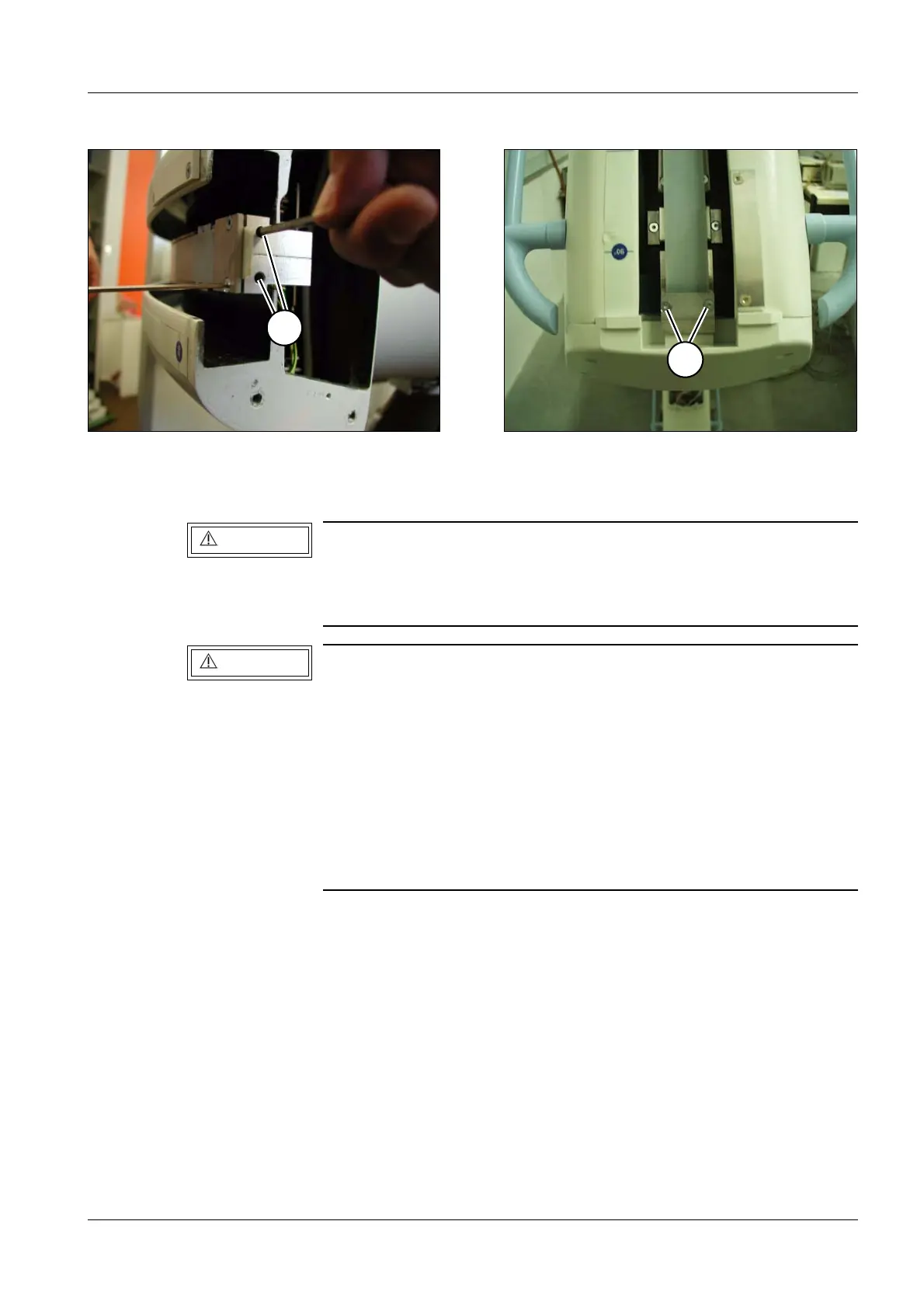

Fig. 9 Fig. 10
Risk of injuries on mechanical parts!
If not observed, slight to medium injuries, especially to the hands,
can occur.
Observe the notes concerning the C-arm carbon fiber structure.
Risk of injury!
Noncompliance can lead to medium to severe injuries and/or
property damage.
The C-arm covers contain counterbalance weights and weigh
approx. 6 kg.
Hold the covers firmly when installing or removing them.
Before the C-arm cover will be loosened, the C-arm must be
moved to its middle orbital position.
If the C-arm covers are loosened, the C-arm may not be moved to
its orbital end positions (I.I. or SIREPHOS at the orbital end posi-
tion).
