Siemens SIREMOBIL Iso-C

SIREMOBIL Iso-C SPR2-230.061.01 Page 12 of 18 Siemens AG
System Manual Rev. 13 12.04 CS PS 24 Medical Solutions
1 - 12 Prerequisites

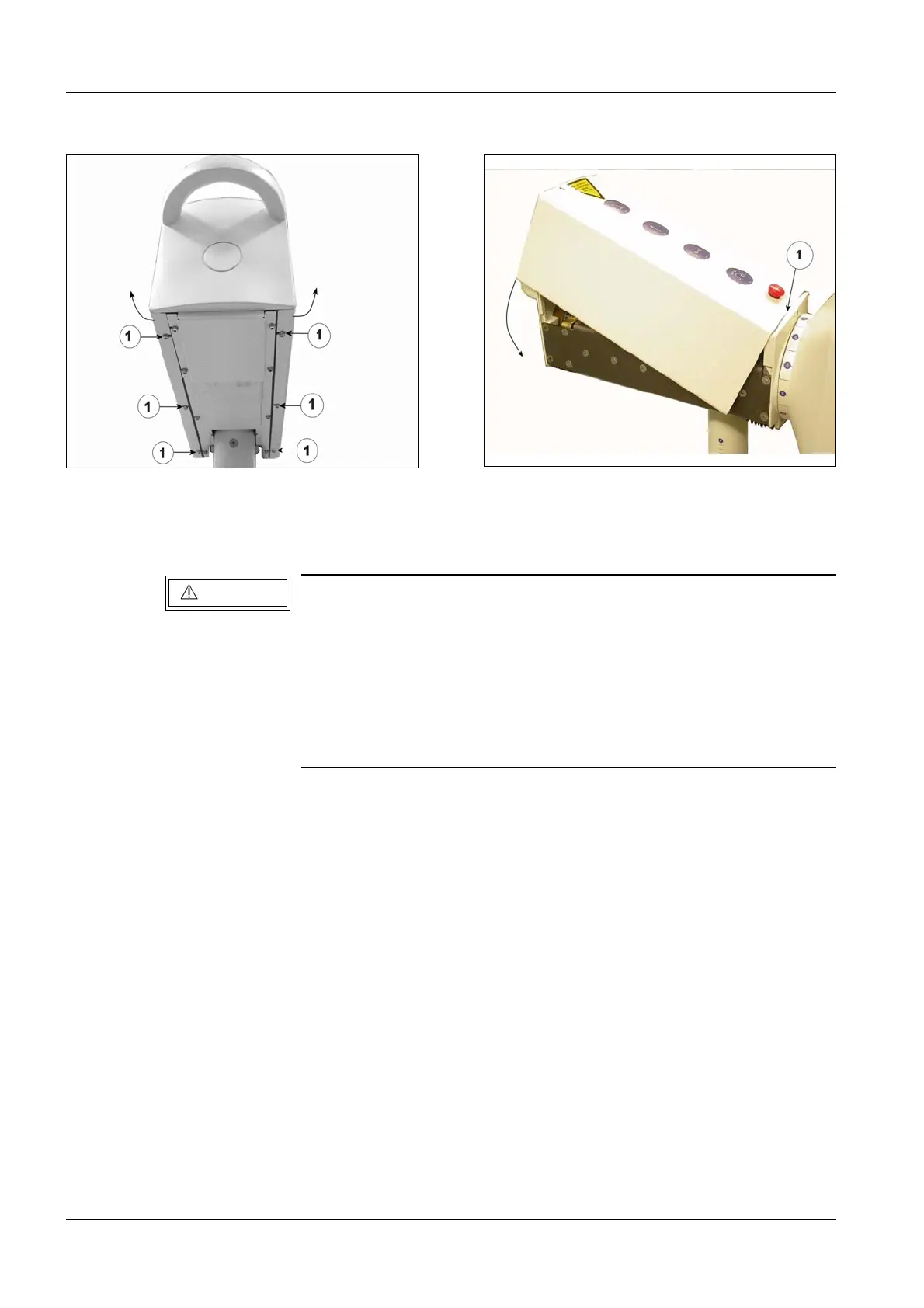

Cover over the horizontal carriage 1
Removing the cover 1
• Loosen the 6 mounting screws (1/Fig. 2).
• Expand the cover at the rear end in the direction of the arrow (see Fig. 2) and remove it
downwards.
• If needed disconnect the protective ground wire, the cable of the keypad (brake buttons)
and the cable of the emergency stop button.
Fig. 5 Fig. 6
Danger of injury when dismantling / assembling mechanical
parts! Non-compliance can lead to minor up to moderately severe
injuries, especially to the hands!
The cover over the horizontal carriage is bent U-shaped and must
be pulled on the side to the outside when it is removed.
The cover is then under mechanical stress.
We recommend that you wear light working gloves to avoid inju-
ries.
CAUTION
