Siemens SIREMOBIL Iso-C

Replacing boards / replacing components 6 - 39
Siemens AG SPR2-230.061.01 Page 39 of 48 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
SIMOMED HM monitor 6
• Switch the system off.
• Replace the monitor.
• Perform the monitor settings as described in the Startup Instructions, Chapter 8.
• Perform the IQ quick test.
3D reconstruction system electronics 6
• The 3D reconstruction system electronics (PC boards D200 incl. MCB300 and D10) is
attached in front of PC board D1 in the basic unit (Fig. 13).
• Switch the system off.
• Unplug all connectors.
• Replace the module.
• Reconnect all connectors.
• Fasten the shielded cables in the shield connectors again, ensuring good ground con-
tact of the shielding.
• If cable ties have been removed, attach the cables with cable ties again.
• Perform a download of the control software as described in the Startup Instructions,
Chapter 5.
• Perform the mechanical settings as described in the Startup Instructions, Chapter 6.
• Perform chapters 10 and 11 of the IQ quick test.

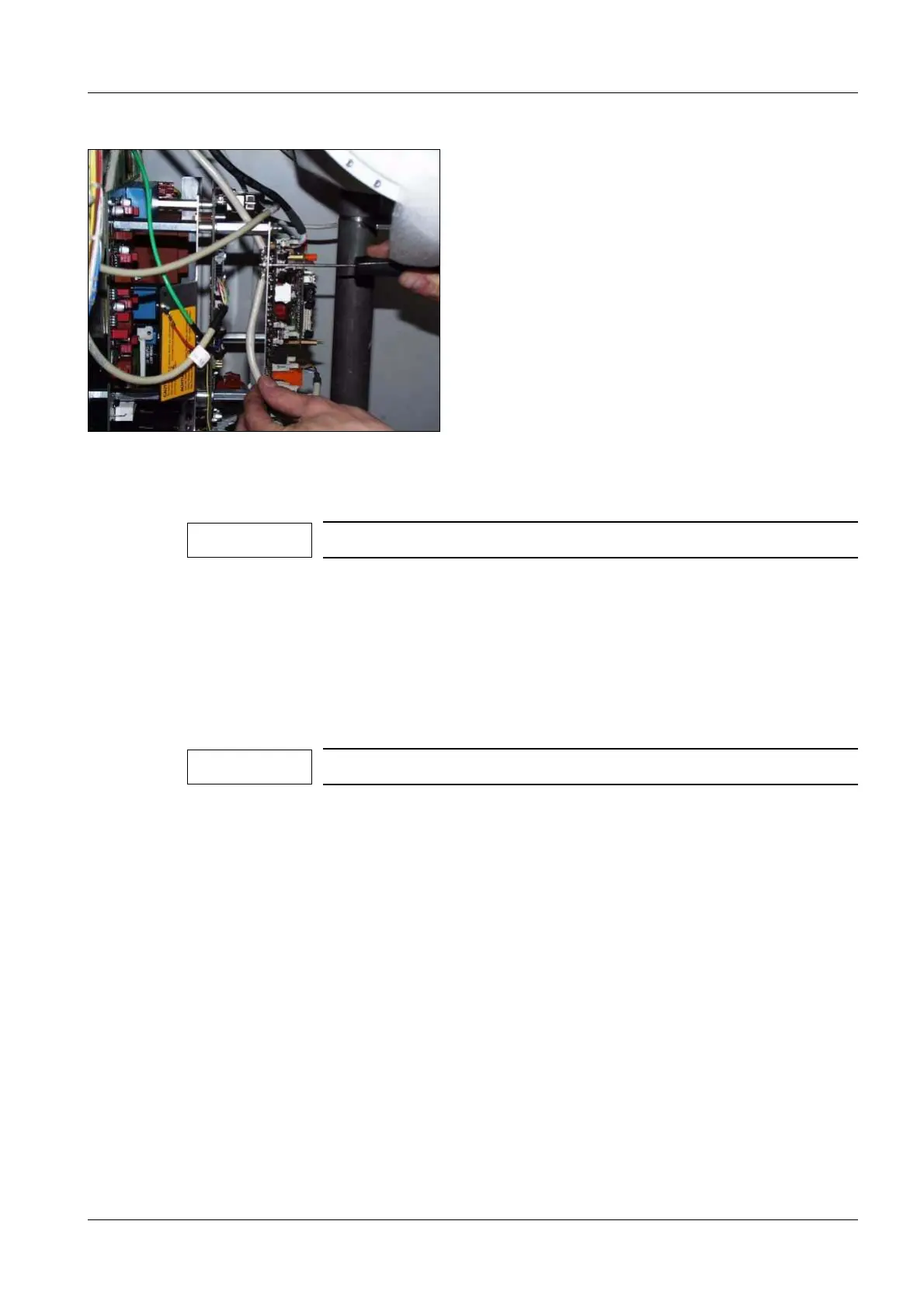

Fig. 13
Only applies to SIREMOBIL Iso-C 3D.
Only applies to SIREMOBIL Iso-C 3D.
NOTE
NOTE
