6 - 38 Replacing boards / replacing components
3D reconstruction PC 6
• Disconnect the system from the power supply by pulling the mains plug out of the mains
socket.
• The syngo software and the backup/restore disk are kept in the monitor trolley logbook.
• Unplug all connectors on the PC.
• Unscrew the dongle from the printer port of the PC and reinstall it on the new PC
(see Fig. 12).
• Replace the PC.
• Reconnect all connectors.
• Perform the startup of the 3D reconstruction PC as described in the Startup Instructions,
Chapter 4.
• Then insert the backup / restore disk (in the logbook compartment of the
SIREMOBIL Iso-C) into the disk drive of the PC.
• Start the syngo service software.
• Select the Backup / Restore menu and restore the data.
• Perform a function check of the PC.
• Perform the IQ quick test.
• Check the DICOM functionality of the PC, if applicable.

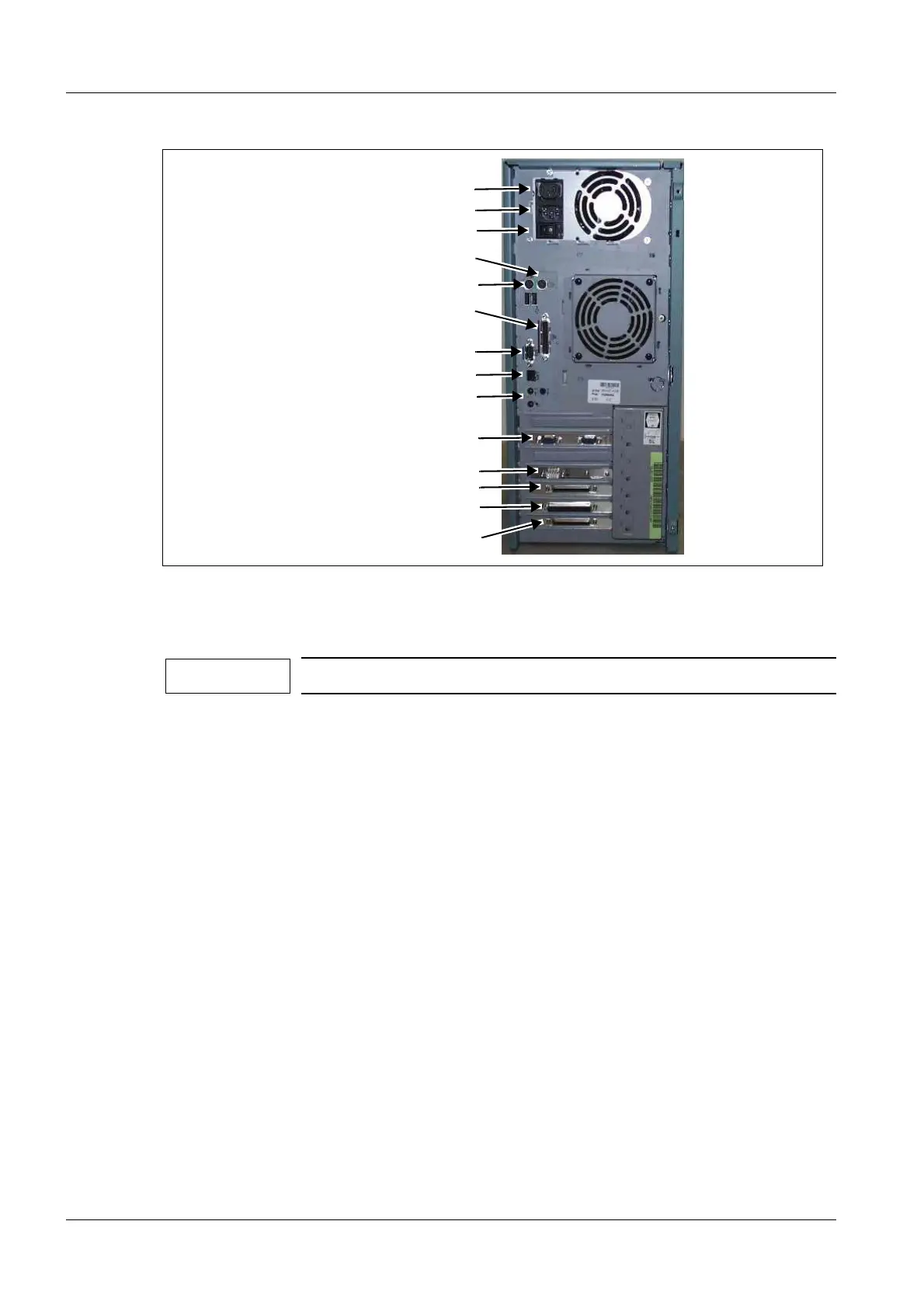

Fig. 12
Only applies to SIREMOBIL Iso-C 3D.
Power out (switched
Power in
Mains power switch
Mouse port
Keyboard port
Printer port (dongle)
Serial port
Ethernet LAN port
Audio out Audio in / Micro
Video graphic port
CAN port
SCSI adapter (MEMOSKOP)
Relais board
SCSI adapter
NOTE
