Siemens SIREMOBIL Iso-C

7 - 1
Siemens AG SPR2-230.061.01 Page 1 of 10 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Brakes / Movements 7
Brake force / Brake torque 7
Measuring the horizontal force required for movement 7
The attachment point for the spring scale is the end of the railing near the image intensi-
fier in sector B and/or the handgrip of the horizontal carriage. The carriage must always
be pulled with a consistent speed.
¹ The maximum force for moving the horizontal carriage consistently when the
brakes are released is 80 N.
¹ When the brakes are applied, the force must be >
180 N.
Measuring the horizontal swivel force 7
¹ Swivel force when the brakes are released max. 35 Nm.
¹ Swivel force when brakes are applied > 100 Nm.

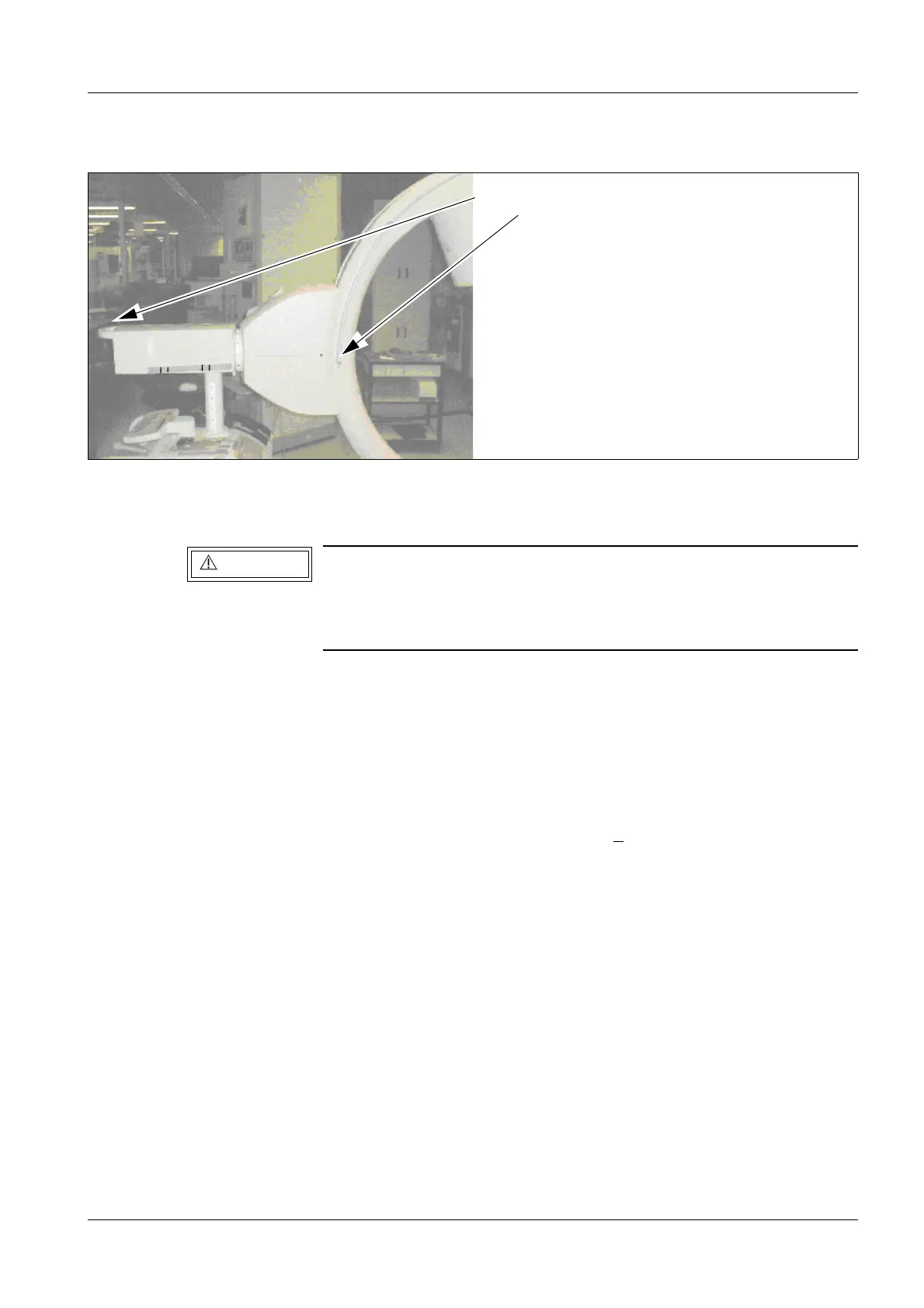

Fig. 1
Risk of injuries on mechanical parts!
If not observed, slight to medium injuries, especially to the hands,
can occur.
Observe the notes concerning the C-arm carbon fiber structure.
Measurement A-C: At the handgrip of the horizontal unit, the measuring
points move to 30, 170 and 200 mm
Measurement C-A: At the railing near the image intensifier, the measur-
ing points move to 30, 170 and 200 mm
A B C
Attachment points - spring scale
WARNING
