Brakes / Movements 7 - 7
Siemens AG SPR2-230.061.01 Page 7 of 10 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Vertical lift limit switches 7
• Replace the limit switches. Reconnect the wires.
• To adjust the limit switches, move the lifting column slowly and carefully by briefly tap-
ping the lifting column switch at the control console of the basic unit until it is positioned
just before the mechanical end stop.
• Adjust the respective limit switch and tighten the screws.
• Make sure the limit switch functions correctly.
• To do this, move back out of the end position.
• Then slowly and carefully move to the end position by briefly tapping the lifting column
switch on the control console of the basic unit.
• The lifting column motor must switch off prior to reaching the end position and the lifting
column must come to a full stop.
• Move the lifting column approximately 10 cm away from the end position.
• Now move the lifting column at full speed in the direction of the end position by pressing
and holding the lifting column switch.
• The lifting column motor must switch off prior to reaching the mechanical end stop and
the lifting column must come to a full stop.
Switch for blocking vertical lift 7
• Remove the horizontal lift cover to replace both the switches. Refer to chapter 1 of these
instructions.
Adjustment: Refer to the MODULARIS service instructions.

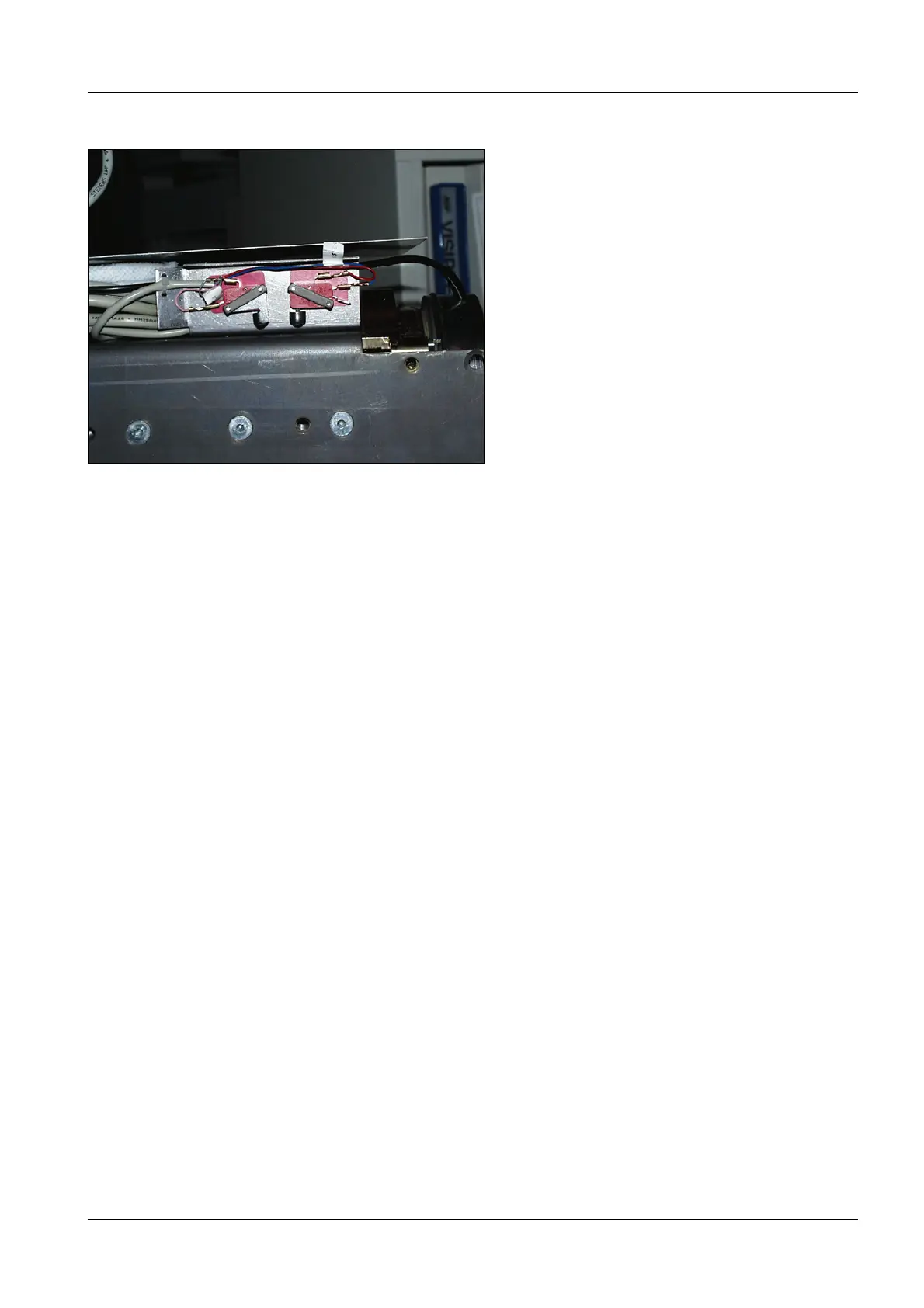

Fig. 7
