Brakes / Movements 7 - 3
Siemens AG SPR2-230.061.01 Page 3 of 10 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Angulation brake magnet
• Remove the cover of the horizontal carriage. Refer to chapter 1: Installation / removal of
covers with brake switches on the horizontal carriage.
• Remove the back cover with the handle for the horizontal lift movement after removing
the 4 countersunk screws. The angulation brake magnet is now visible.
• Remove the cover plate over the C-arm cable guide.
• Remove the three attachment screws and remove the brake magnet.
• Remove the plug connection for the brake magnet and insert the new brake magnet.
• Place the new brake magnet back on the shaft and attach it with the three screws.
• Reattach the cable with cable ties.
• Reattach the cover over the C-arm cable guide.
• Reinstall the cover. Make sure the protective conductor is connected properly.
• Perform a function test of the brake. Refer to: Brake force / Brake torque.

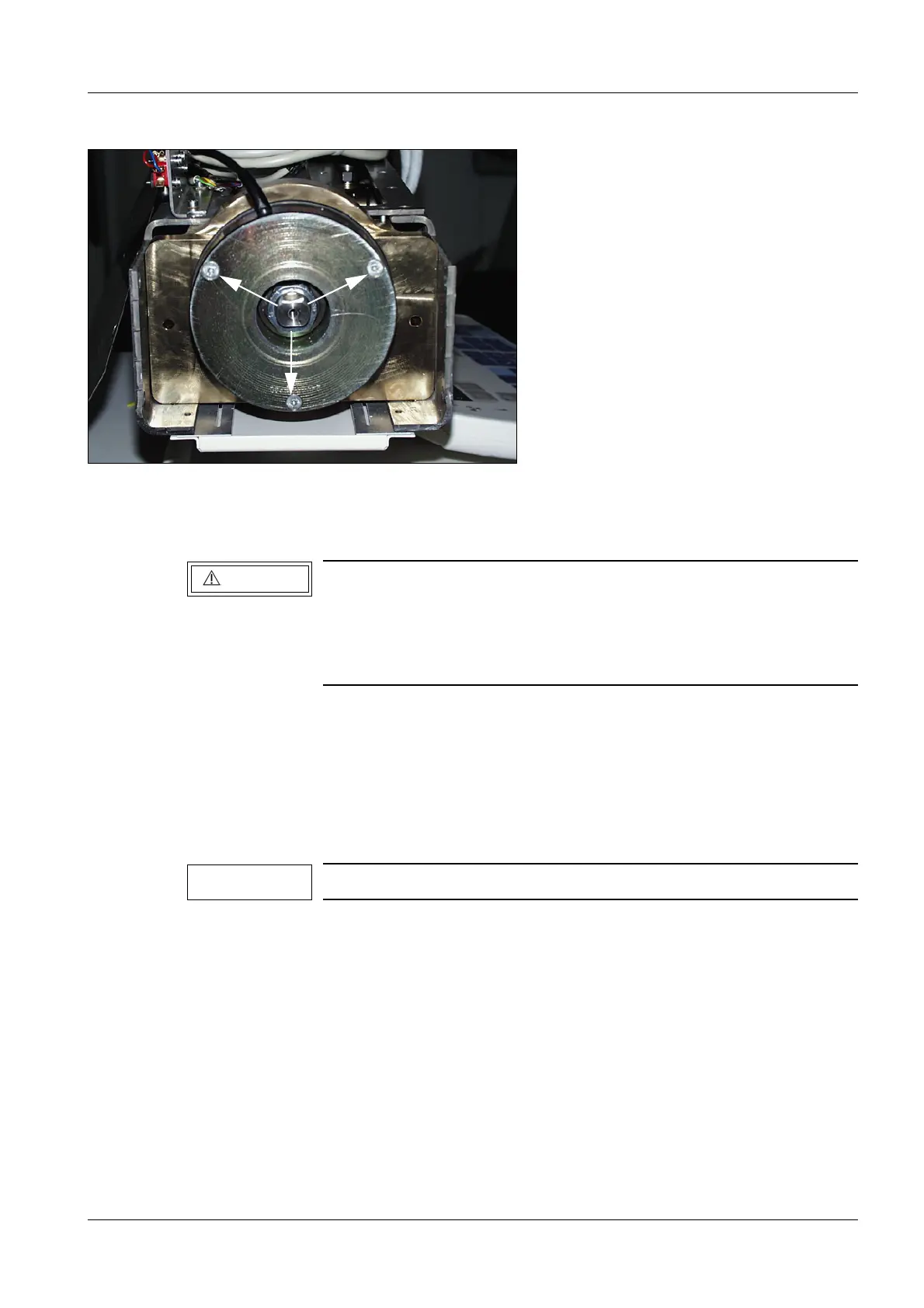

Fig. 3
Risk of burn!
See Chapter 1, Safety Information.
When the angulation brake is released, the brake magnet heats
up. Be sure to switch off the power supply and let the brake mag-
net cool off before touching it.
Remove both parts of the brake magnet!
CAUTION
NOTE
