Siemens SIREMOBIL Iso-C

Brakes / Movements 7 - 5
Siemens AG SPR2-230.061.01 Page 5 of 10 SIREMOBIL Iso-C
Medical Solutions Rev. 13 12.04 CS PS 24 System Manual
Vertical lift brake
• Remove the basic unit cover.
• Carefully place the SIREMOBIL Iso-C on its side.
• Remove plug D30.X8 and eject the contacts.
• Remove the three attachment screws for the vertical lift brake and replace the brake.
• Remove plug D30.X8.
• Eject the contacts from plug D30.X8.
• Route the wires of the new vertical lift brake to board D30 and insert the contacts in the
plug housing.

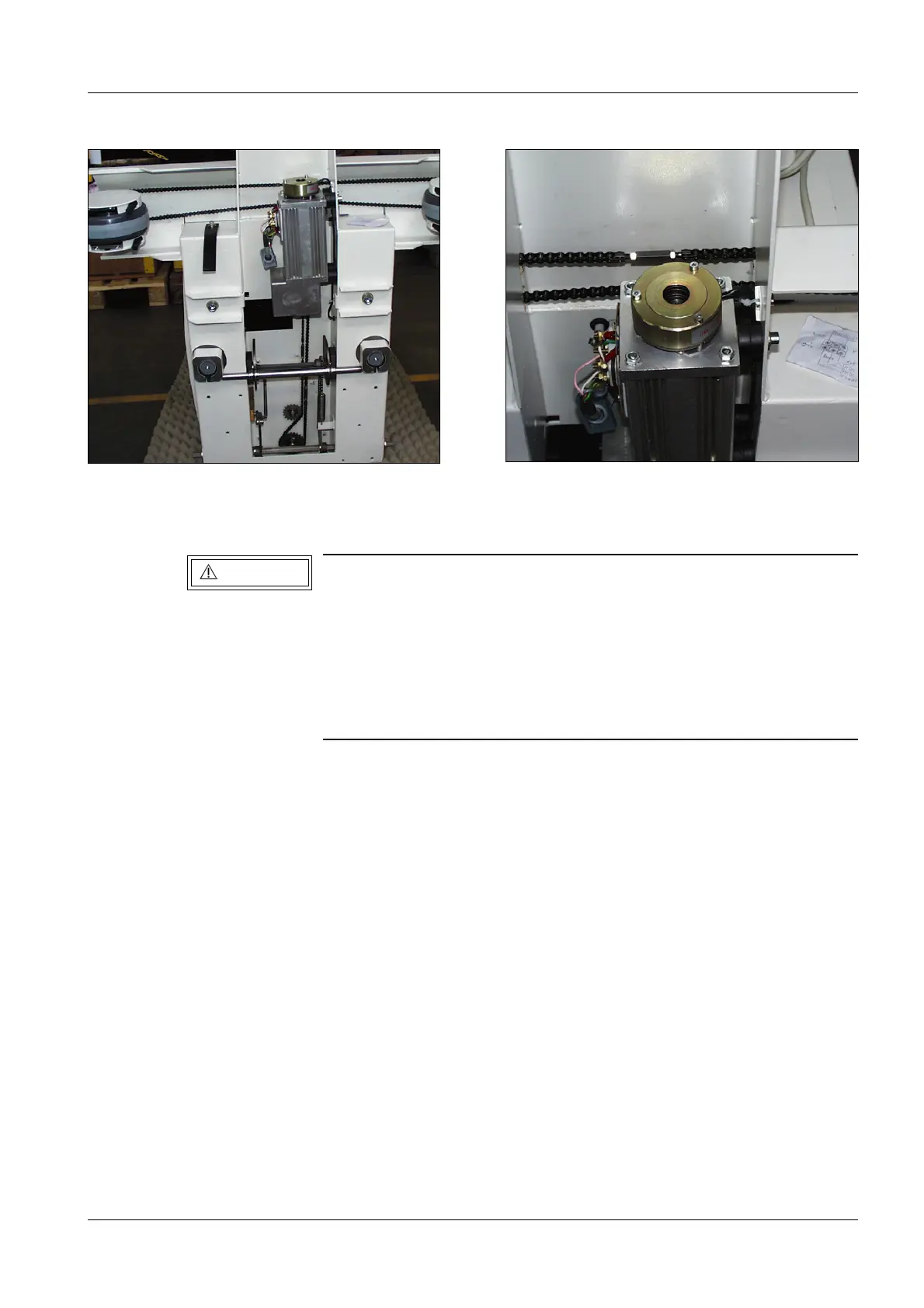

Fig. 4 Fig. 5
Risk of injury!
Noncompliance can lead to medium to severe injuries and/or
property damage.
To replace the vertical lift brake, the SIREMOBIL Iso-C must be
placed on its side. This requires 6 people. To prevent damage to
the SIREMOBIL Iso-C or the floor, we recommend using several
wool blankets or corrugated cardboard or other suitable floor
covering.
WARNING
