Siemens WL Series User Manual

9 – 86
For frame size II C-class and frame size III L, C-class:

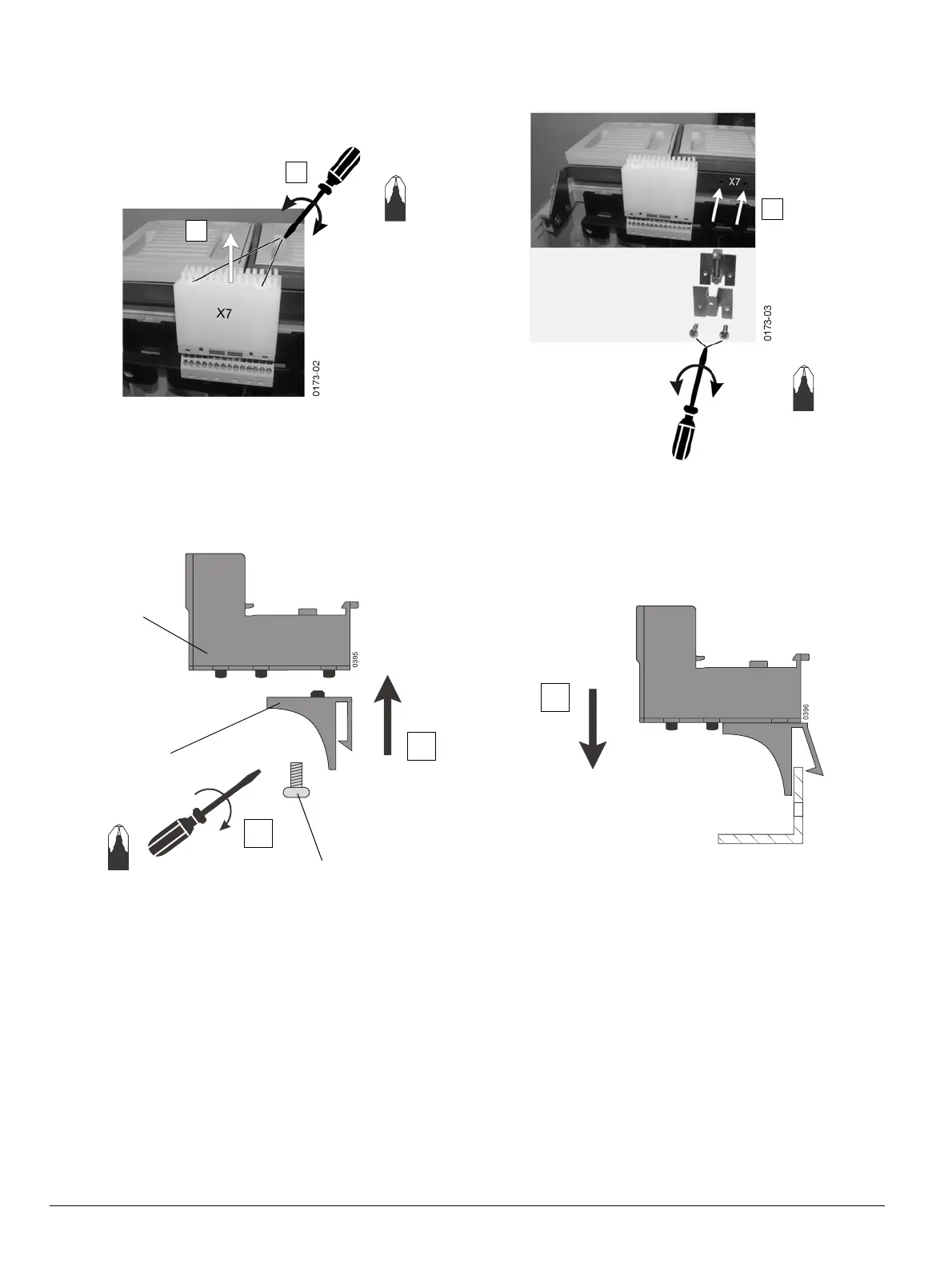

Fitting COM15 module on the fixed-mounted breaker
(1) COM15 module
(2) Operating module
(3) 3x Plastite RX-PT 8-16x12
4
3
Für Baugröße II C-Klasse und Baugröße III L, C-Klasse:
COM15-Modul am Festeinbauschalter montieren
(1) COM15-Modul
(2) Betätigungsmodul
(3) 3x Plastite RX-PT 8-16x12
1
2
PZ 1
3
PZ 3
COM15-Modul
COM15 module
Betätigungsmodul
Operating module
PZ 2
2
1
3 x Plastite RX-PT 8-16x12
