Siemens WL Series User Manual

5 – 13
Baugröße III

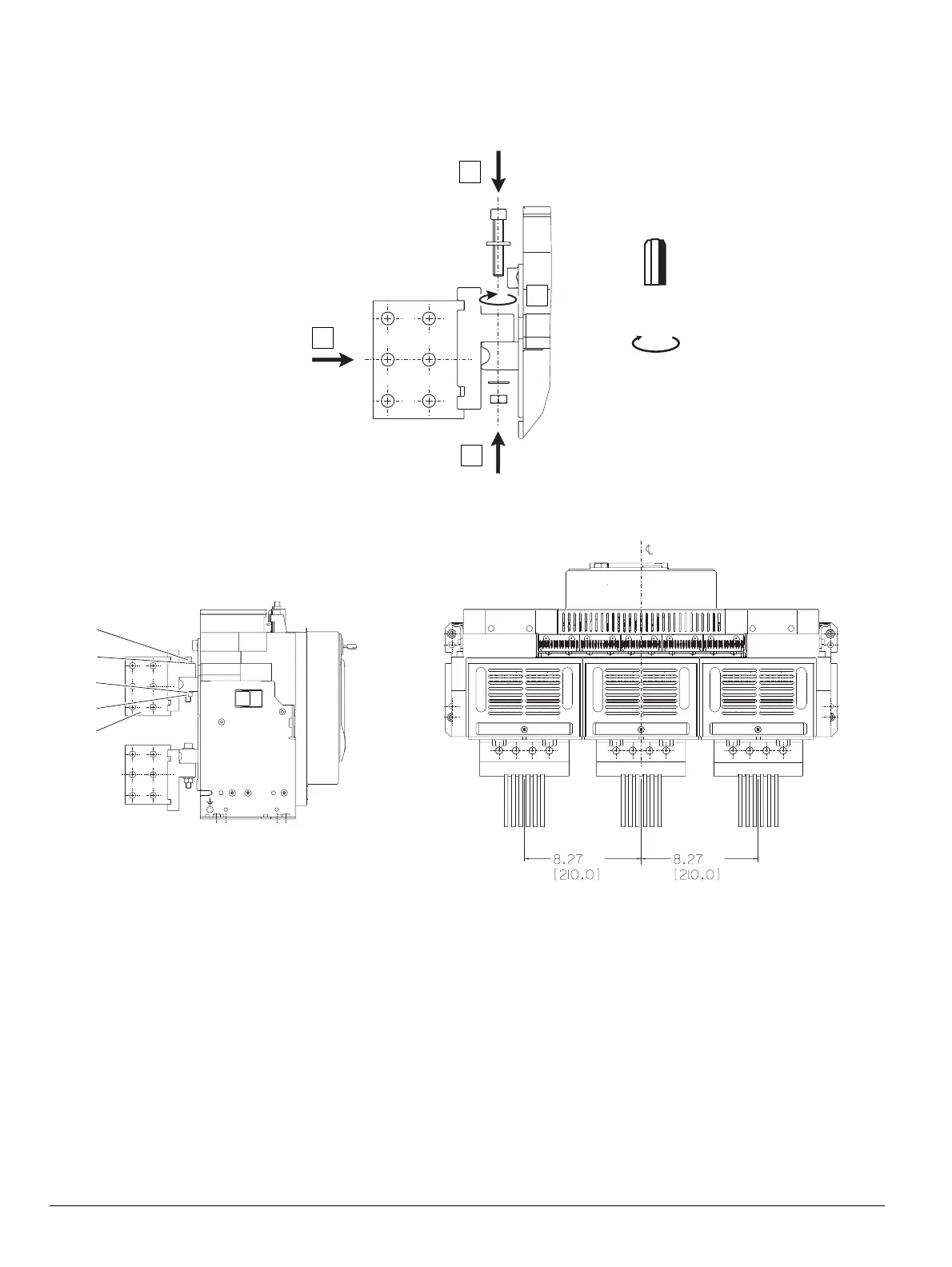

Vertikaladapter anbauen
Ausrichten der Vertikaladapter
(1) Zylinderschraube M12 x 90
(2) Spannscheibe
(3) Scheibe
(4) Mutter M12
(5) Vertikaladapter
0643-05_nu
1
2
3
4
Gr. / Size
10 mm
70 Nm
50 ft-lb
(1)
(2)
(3)
(4)
(5)
0646_nu
0647_nu
Frame size III
Attaching vertical adapter
Alignment of vertical adapters
(1) Cheese-head screw M12 x 90
(2) Belleville washer
(3) Washer
(4) M12 nut
(5) Vertical adapter
