25 – 8
WL Circuit Breaker

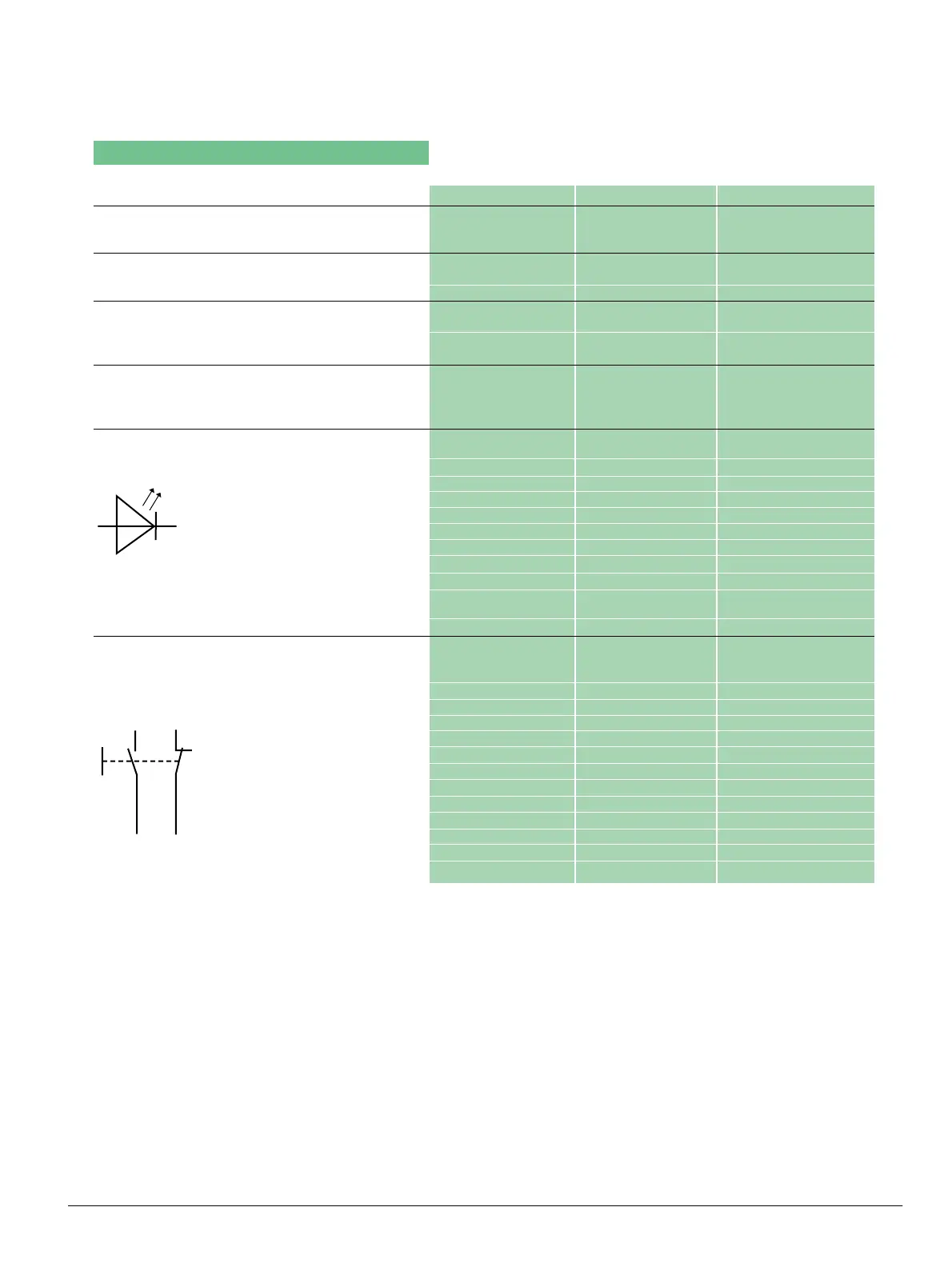

Function Overview of the Electronic Trip Units
Basic Functions ETU725 ETU727 ETU745
Parameter sets
Selectable between
parameter set A and B – – –
LCD
LCD, alphanumeric (4-line) – –
O
LCD, graphic – – –
Communication
CubicleBUS integrated – – ✔
Communication capability via
MODBUS or PROFIBUS – – ✔
Metering function
Metering function capability with
Metering Function or
Metering Function PLUS – – ✔
Display by LED
Trip unit active ✔✔✔
Alarm ✔✔✔
ETU error ✔✔✔
L trip ✔✔✔
S trip ✔✔✔
I trip ✔✔✔
N trip – ✔✔
G trip – ✔✔
(only with ground fault module)
G alarm – – ✔
(only with ground fault module)
Tripped by extended protection or
protective relay function – – ✔
Communication – – ✔
Signal contacts with external CubicleBUS modules
(Opto or relay)
Overcurrent warning – – ✔
Load shedding OFF/ON – – ✔
Early signal of long time trip (200ms) – – ✔
Temperature alarm – – ✔
Phase unbalance – – ✔
Instantaneous trip – – ✔
Short-time trip – – ✔
Long-time trip – – ✔
Neutral conductor trip – – ✔
Ground fault protection trip – – ✔
(only with ground fault module)
Ground fault alarm – – ✔
(only with ground fault module)
Auxiliary relay – – ✔
ETU error – – ✔
✔ available
– not available
O optional
