(1) Schleifkontaktmodul
(ohne Kontakte)

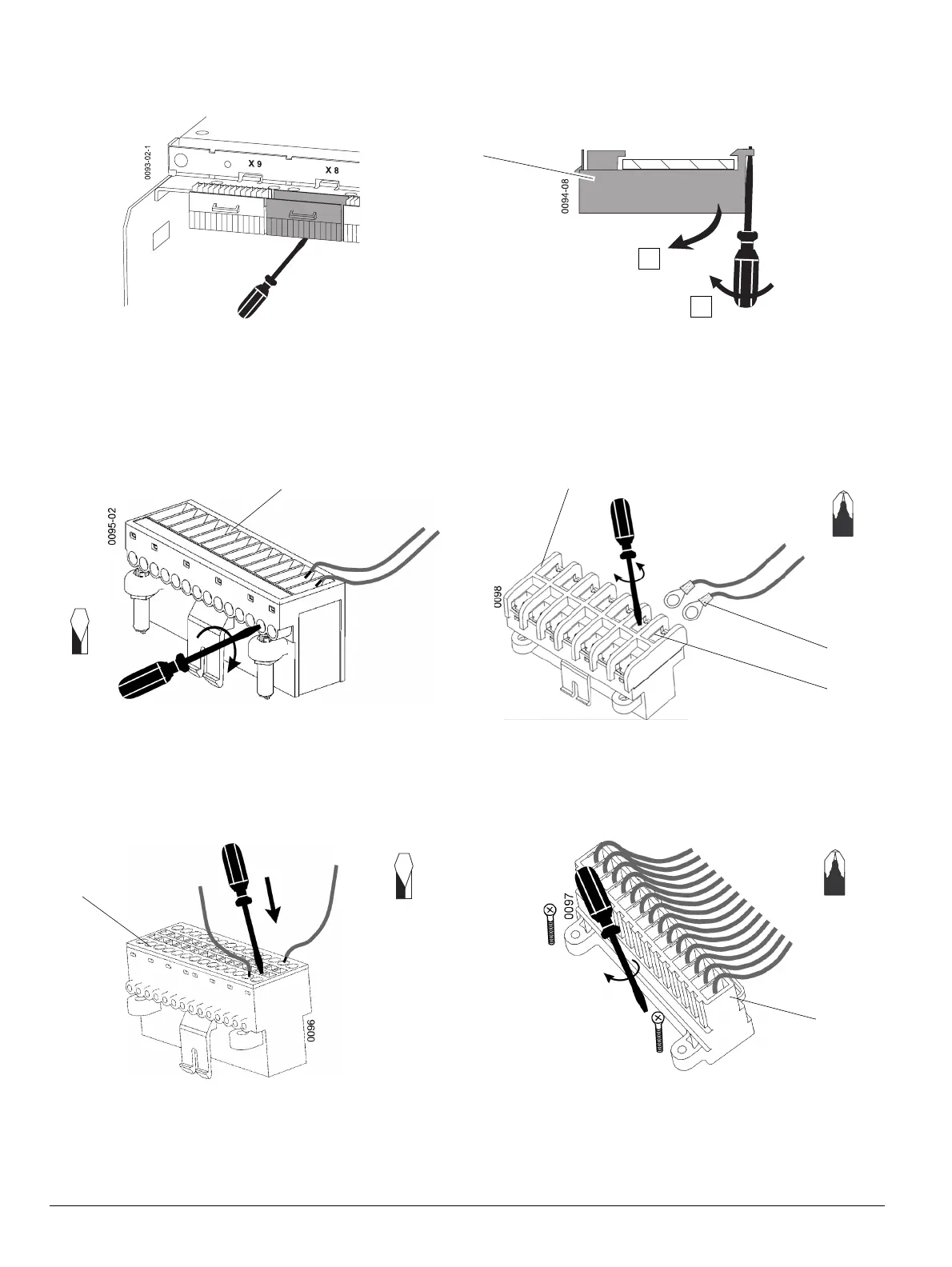

5.4.3 Hilfsstromstecker
Ausführungen
(1) SIGUT-Technik
(2) Ringösen-Schraubtechnik
(3) Isolierte Ringöse
(4) Schrauben ANSI B 18.6.3 #4
(5) Schraublose Anschlusstechnik
2 Klemmen pro Kontakt
(6) Nur F
esteinbauschalter: Vormontierte Leitungen
1
2
(1)
3,0 x 0,6
(1)
0,5 Nm
PH 1
4 lb-in
(2)
(3)
(4)
1/8“
3,0 x 0,6
1/8“
(5)
PH 0
(6)
(1) Secondary disconnect block
(without contacts)
5.4.3 Secondary disconnect terminal blocks
Versions
(1) SIGUT system
(2) Ring terminal system
(3) Insulated ring terminal
(4) Screws ANSI B 18.6.3 #4
(5) Screwless terminal system
2 terminals per contact
(6) F
ixed-mounted breaker only: pre-assembled wires
