82 SDS2000X User Manual

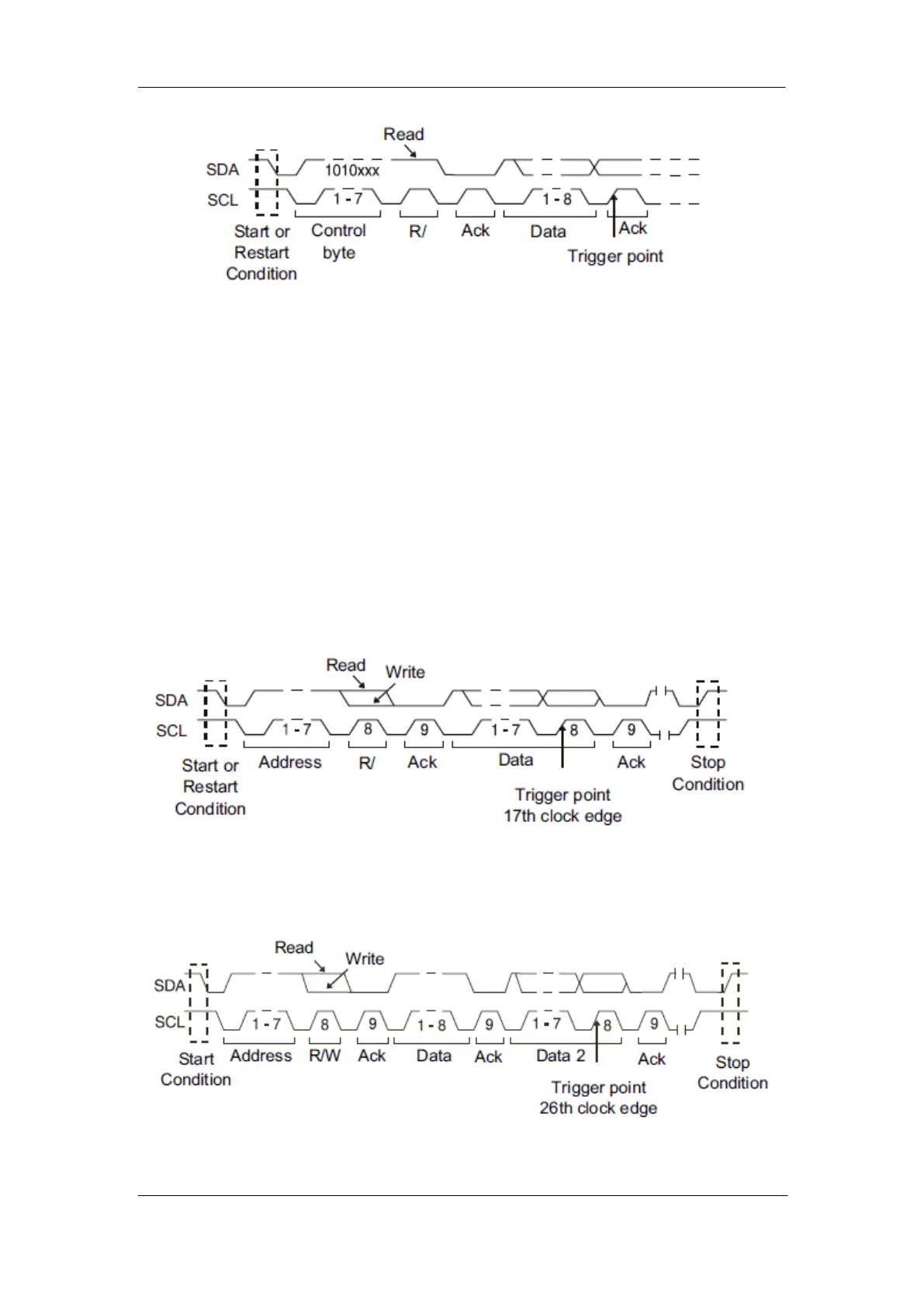

7 Address & Data — The oscilloscope will be triggered when the following
conditions are satisfied.
The address‘s length must be 7 bits and the address‘s value is the same as
the set value.
If you have set either Data1‘s or Data2‘s value, and the signal has a data is
the same as that value. If you have set both Data1‘s and Data2‘s value, the
signal should have two consecutive data packets, the first packet is Data1,
and the second is Data2.
(Note: If the data‘s value is 0xXX, any data value will be matched)
On the 17th Clock Edge
On the 26th Clock Edge
