SIGLENT

148 SDS2000X User Manual

Note: Waveform intensity adjustment affects analog channel waveforms only (not math

waveforms, reference waveforms, digital waveforms, etc.).

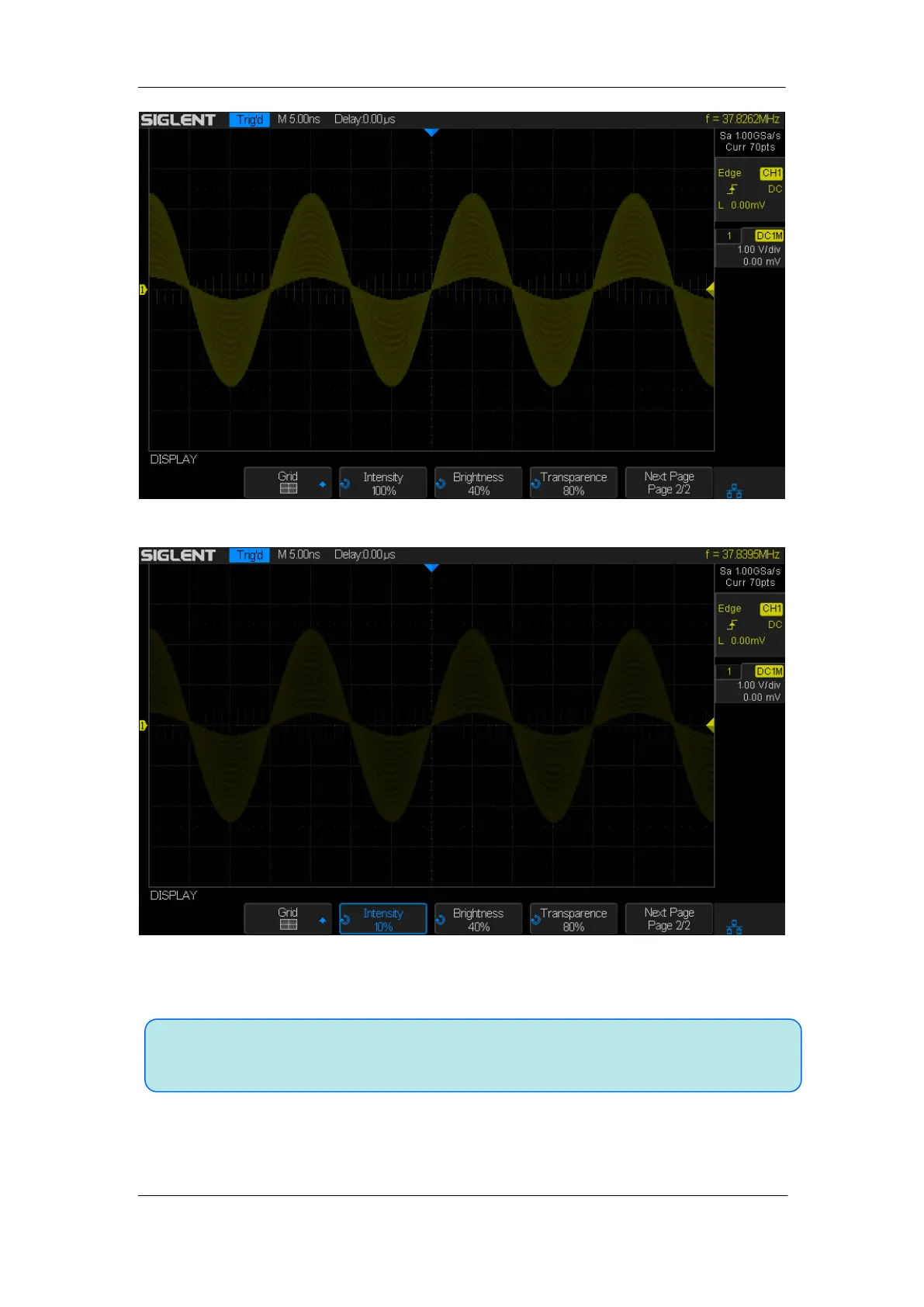

Figure 85: Intensity Set to 100%

Figure 86: Intensity Set to 10%
