SIGLENT

22 SDS2000X User Manual

To Use the Security Lock

Provisions for a Kensington-style lock are provided on the rear panel of the SDS2000X

(Lock is not included). To use, align the lock with the lock hole and insert, turn the key

clockwise to lock the instrument and then remove the key from the lock.

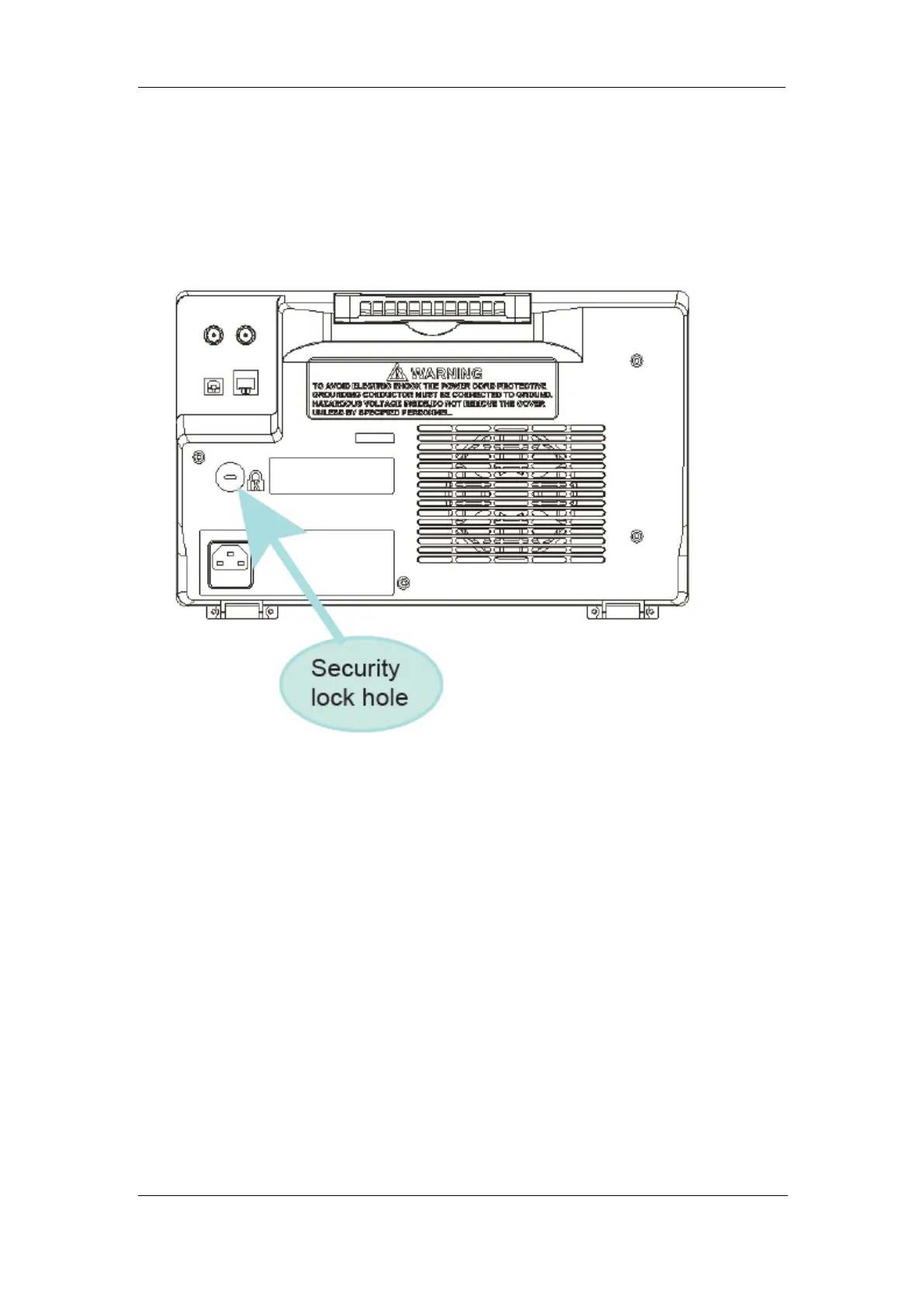

Figure 10: To Use the Security Lock
