SDS2000X User Manual 109
LIN Serial Decode
After completing the setup of SPI signal and trigger, we will decode SPI signals.
Operation steps as follows.
1. Press Decode→Decode. Select one of the options from the Decode1 and Decode2.
2. Press Display and select On to display the result of decoding.
3. Press List to enter the LIST function menu.
4. Press Display and choose the same options as the first step.
5. Press Lines and set the number of lines by the Universal Knob. The range of the lines
is 1 to 7.
6. Press Format to change the character encoding format of the decoding result.
7. Press Scroll and turn the Universal Knob to view all frames.

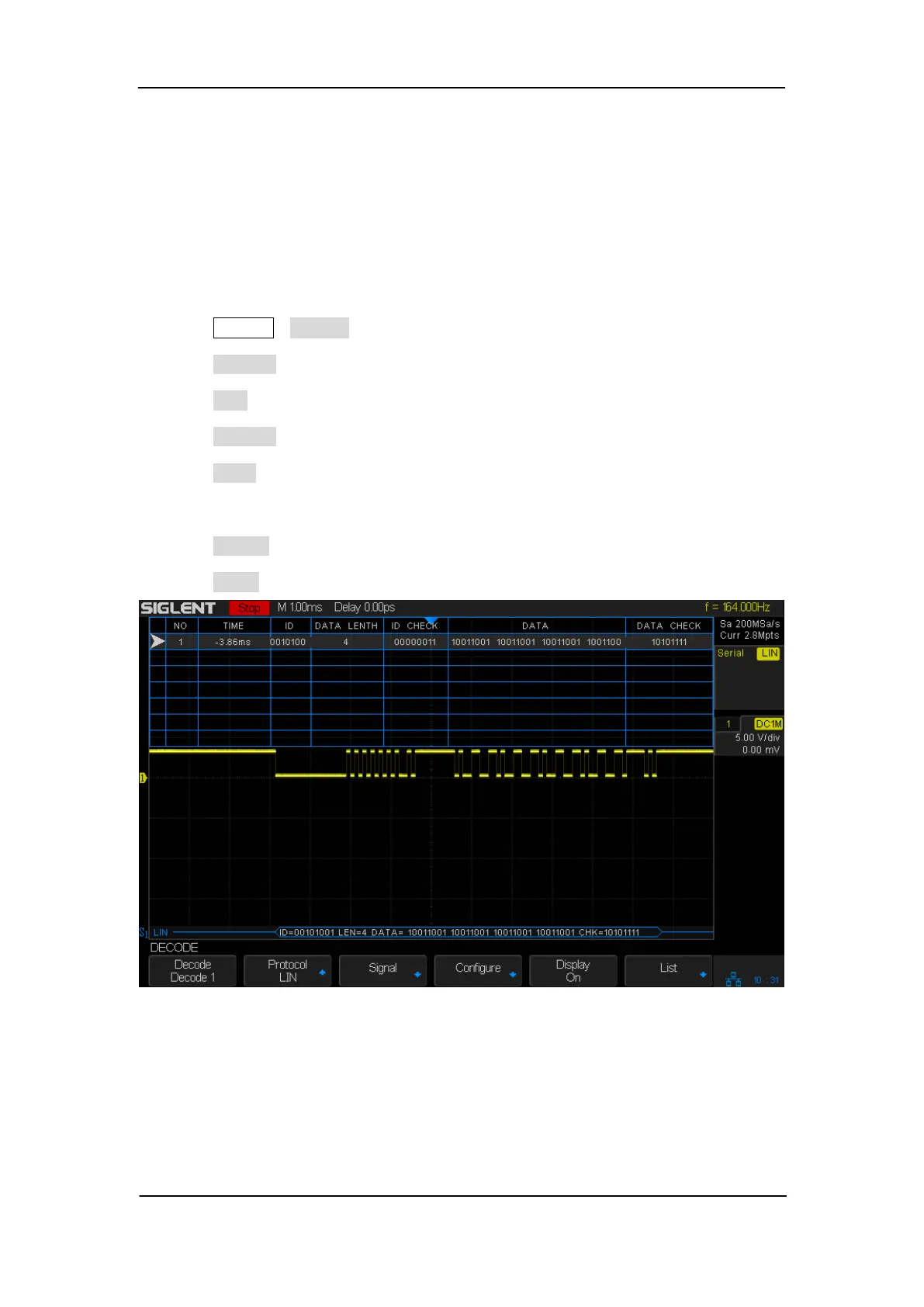

Figure 57: LIN Decode
Interpreting LIN Decode
The frame of decoding result:
 Protected Identifier Field is displayed in the frame
