SIGLENT SDS2000X - Figure 110: Inrush Analysis

To Next Page

To Previous Page

SIGLENT

SDS2000X User Manual 181

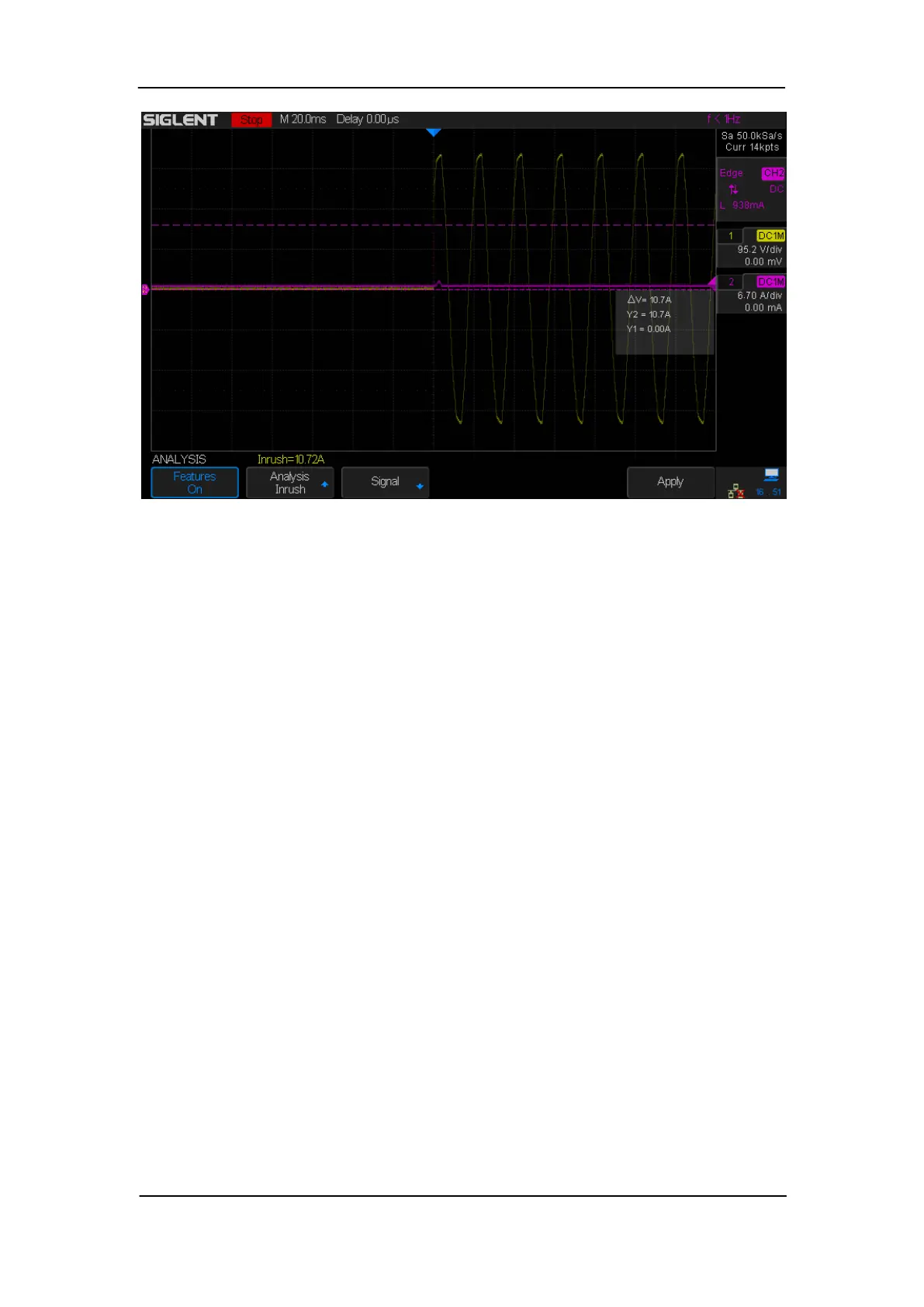

Figure 110: Inrush Analysis

When the analysis has completed, results are displayed at the bottom of the screen.

 Peak Current: the peak current can be a positive or negative value, so the result is

larger one of the measured maximum or minimum values.

The peak current measurement is made on the source input.
