To Do Power Analysis
The Power Analyze application enables quick and easy analysis on switching power
supply efficiency and reliability.

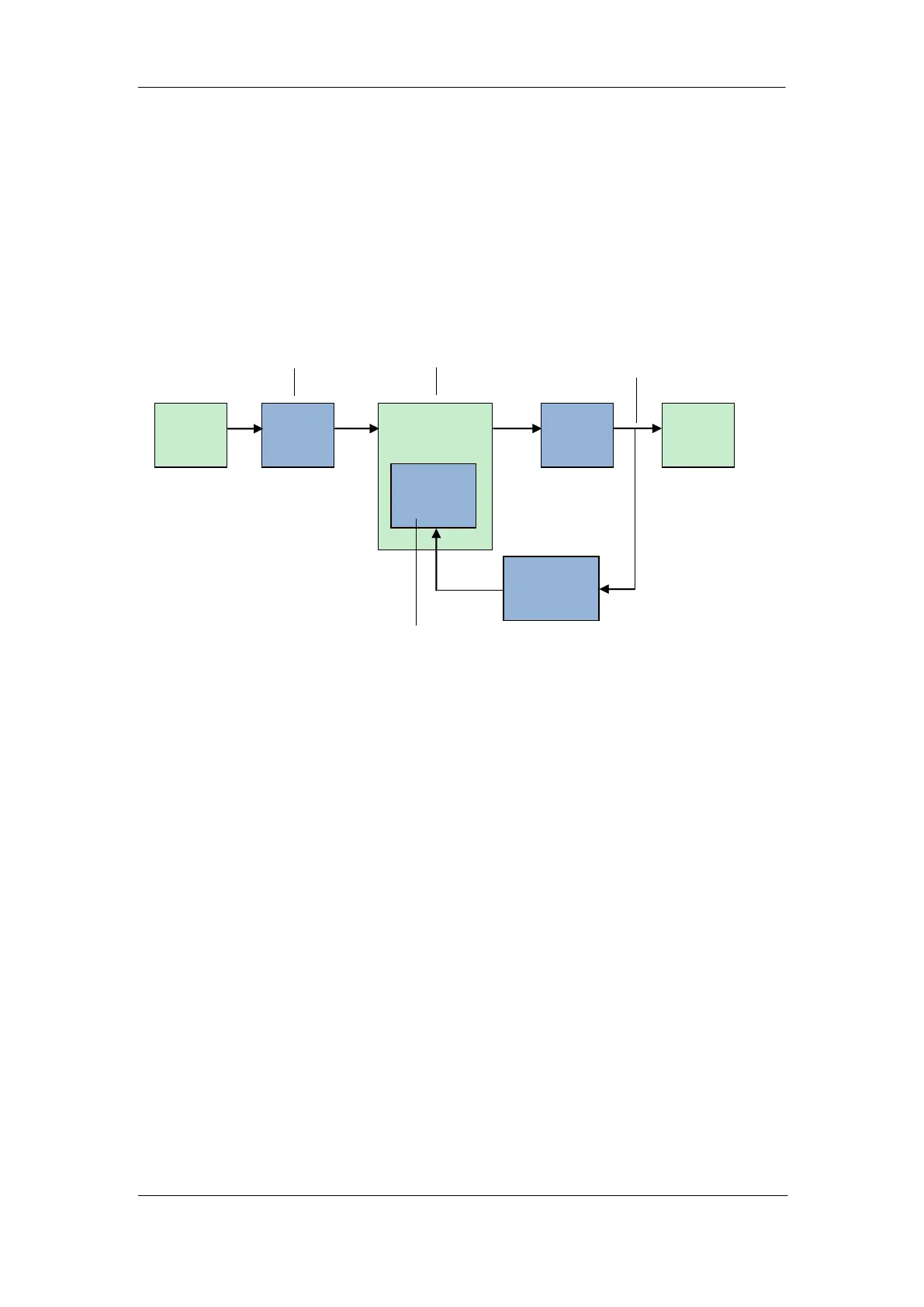

Switch-Mode Power Supply (SMPS) Block Diagram and Types of Measurements
The Power Analyze application can facilitate:
 Measuring switching loss and conduction loss at the switching device
 Analyzing dI/dt and dV/dt slew rate
 Automating the oscilloscope setup for ripple measurements
 Performing pre-compliance testing to IEC 61000-3-2 standards
 Analyzing line power with total harmonic distortion, real power, apparent power,
power factor tests
 Analysis on modulation using the on-time information of a Pulse Width Modulation
(PWM) signal
The Power Analyze application license, along with the oscilloscope, high-voltage
differential probe, current probe, probe deskew fixture, and passive probe, form a
complete power measurement system for power supply design and testing.
Modulation Analysis
Input Line Analysis
Power Device Analysis
Output Analysis
Transient Response Analysis
Turn On Analysis
Power Transfer
And isolation
PWM
Controller
Rectifier
Block
Output
AC
Input
DC
Output
Regulation
And Control
