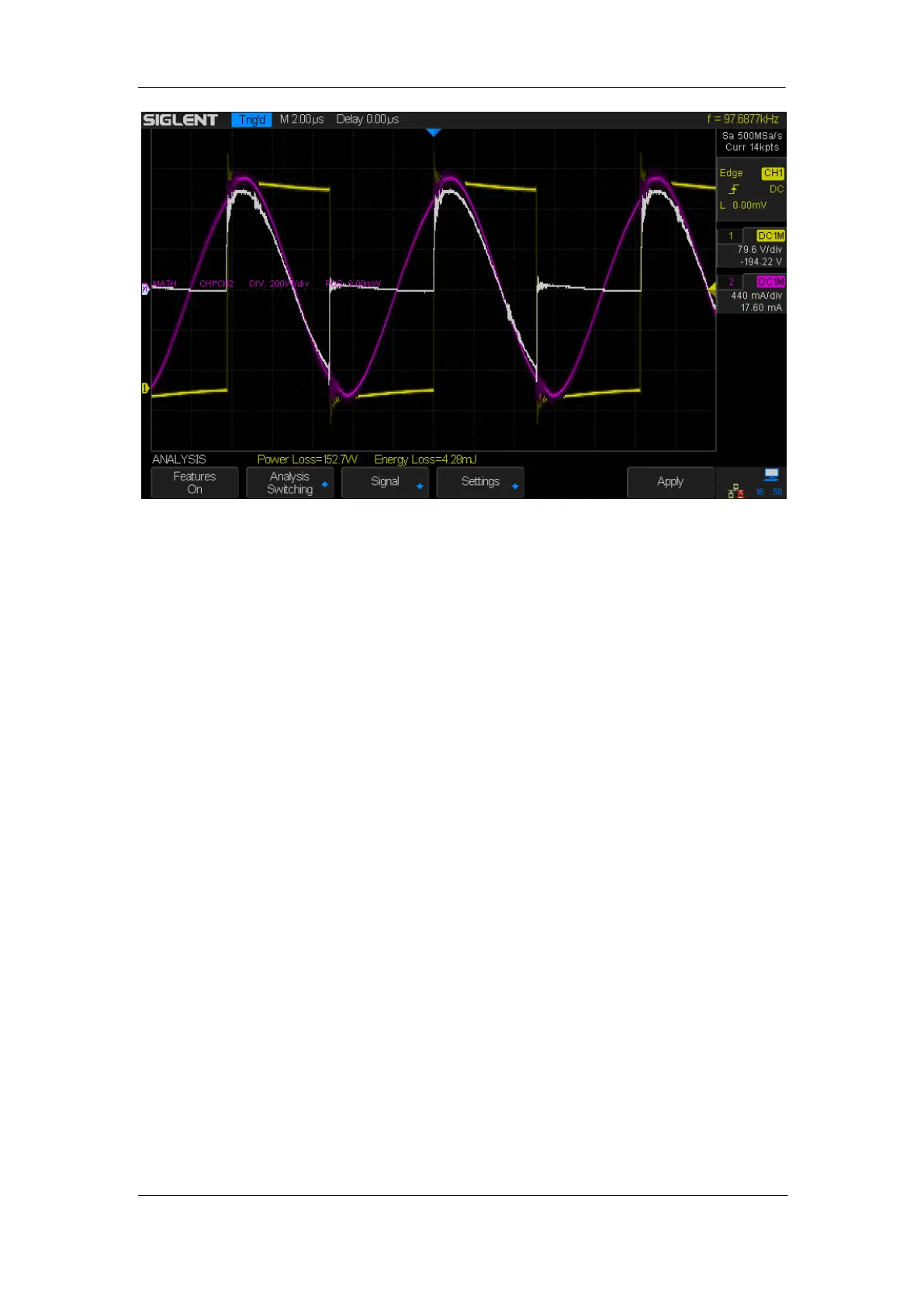

Figure 114: Switching Analysis
The voltage and current waveforms are displayed, as well as the power waveform
(waveform math multiply of the voltage and current). Also displayed are the Power
Loss and Energy Loss measurements.
 Power Loss: P
n
= Vds
n
* Id
n
, where n is in each sample. The power loss
measurement is made on one source input that represents power. This is typically
the multiplication of the voltage and current waveforms.
 Energy Loss: E
n
= ∑( Vds
n
* Id
n
) * time, where n is in each sample. The energy
loss measurement is made on one source input that represents power. This is
typically the multiplication of the voltage and current waveforms.
