 >(Greater Than) – When the pattern is present for greater than a time value.
The trigger occurs
 [--,--](In Range) – When the pattern is present for a time within a range of
values.
 --][-- (Out of Range) – When the pattern is present for a time outside of the
range of values.
7. Press the Holdoff Close softkey to turn on the Holdoff function; then turn the
Universal Knob to select the desired value.

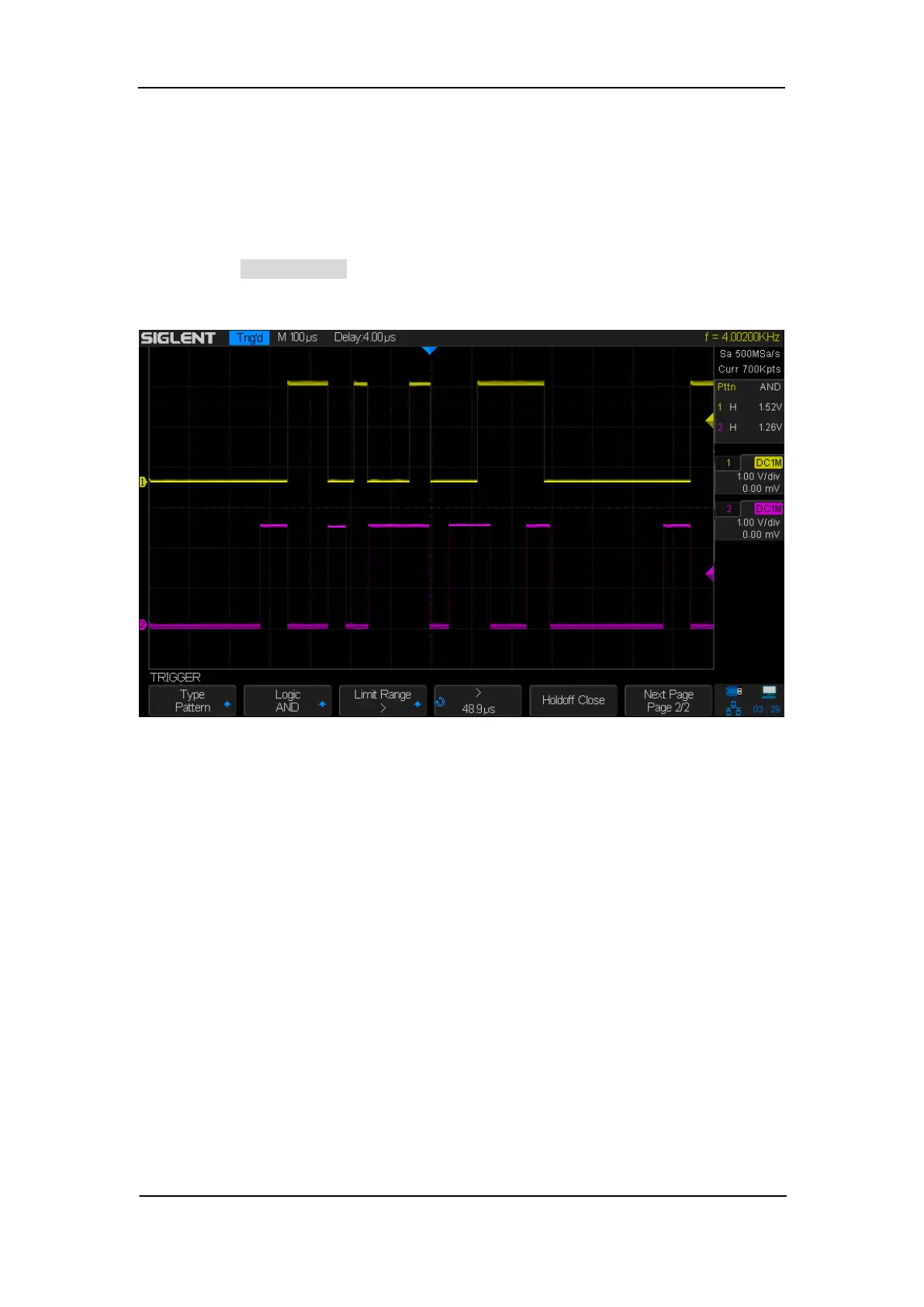

Figure 34: Pattern Trigger
