SDS2000X User Manual 131

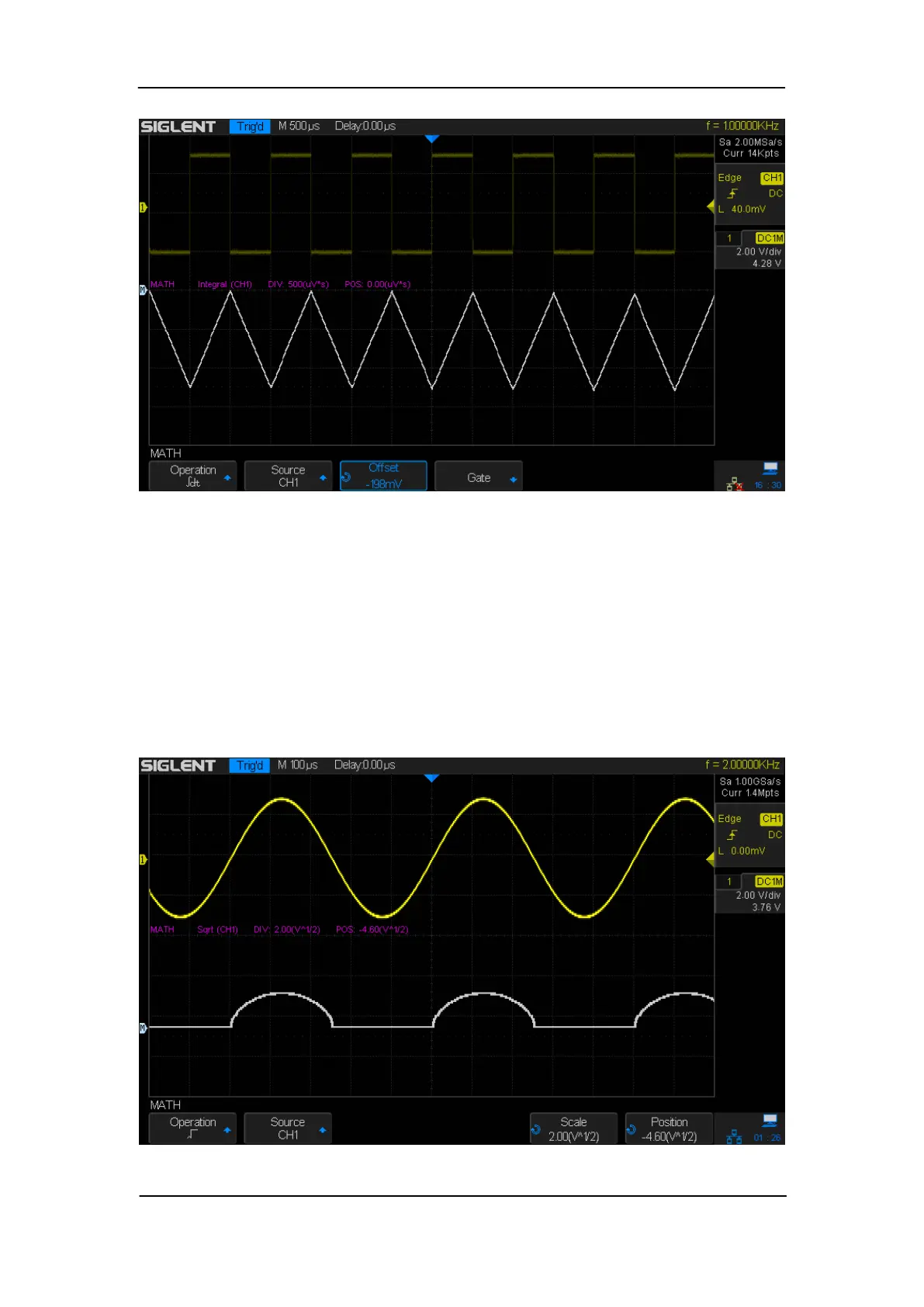

Figure 71: Integral with Offset

Square Root

Square root (√) calculates the square root of the selected source.

Where the transform is undefined for a particular input, holes (zero values) appear in the

function output.

Figure 72: Square Root
