20 SDS2000X User Manual
User Interface

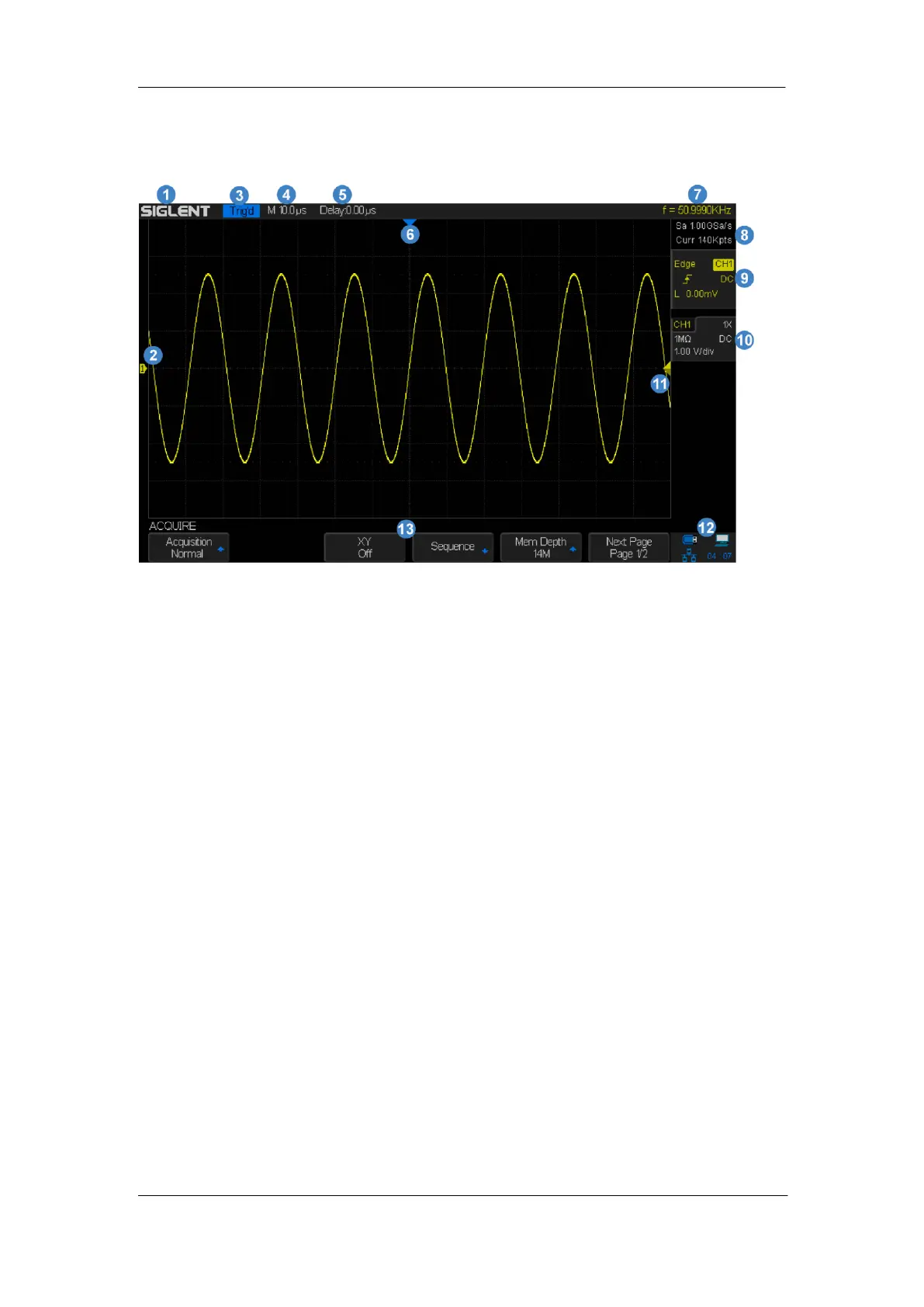

Figure 9: User Interface
1. Product Logo
SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD.
2. Channel Label/Waveform
Different channels are marked by different colors and the color of the waveform
matches with the color of the channel.
3. Trigger Status
Available trigger status includes Ready, Auto, Stop, Arm, Trig‘d.
4. Horizontal Time Base
Represent the time of each grid on the horizontal axis of the screen. Turning the
HORIZONTAL SCALE Knob changes the horizontal sweep speed within the range of
2ns/div to 50s/div.
5. Trigger Position
Use the Horizontal POSITION Knob to modify the parameter. Turn clockwise or
counterclockwise to make the waveform move right or left, which will respectively
cause the Delay parameter to decrease or increase. Press down the knob to
automatically reset the parameter to zero as well as return the waveform‘s horizontal
center to the middle of the screen.
