SIGLENT

SDS2000X User Manual 137

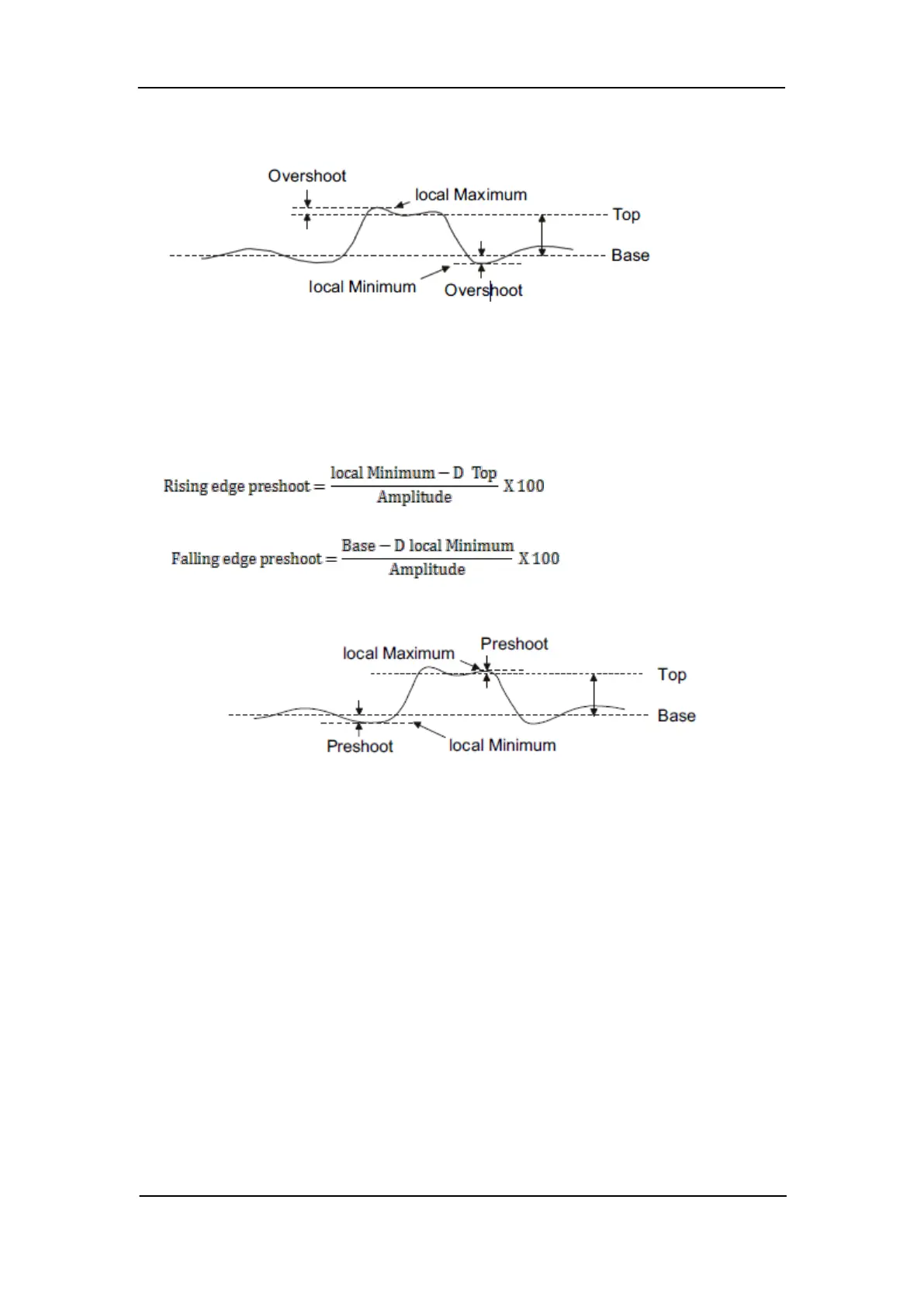

Figure 75: Overshoot

14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a

percentage of Amplitude. The X cursors show which edge is being measured (edge

closest to the trigger reference point).

Figure 76: Preshoot

15. L@T: The voltage value of the trigger point

16. +SR: Slew rate of the rising edge from 10%-90%

17. –SR :Slew rate of the falling edge from 10%-90%
