SIGLENT SDS2000X - Figure 134: Perform Efficiency Analysis

To Next Page

To Previous Page

SIGLENT

196 SDS2000X User Manual

12. Press the Apply softkey to perform the efficiency analysis. When the analysis has

completed, the results are displayed as shown below.

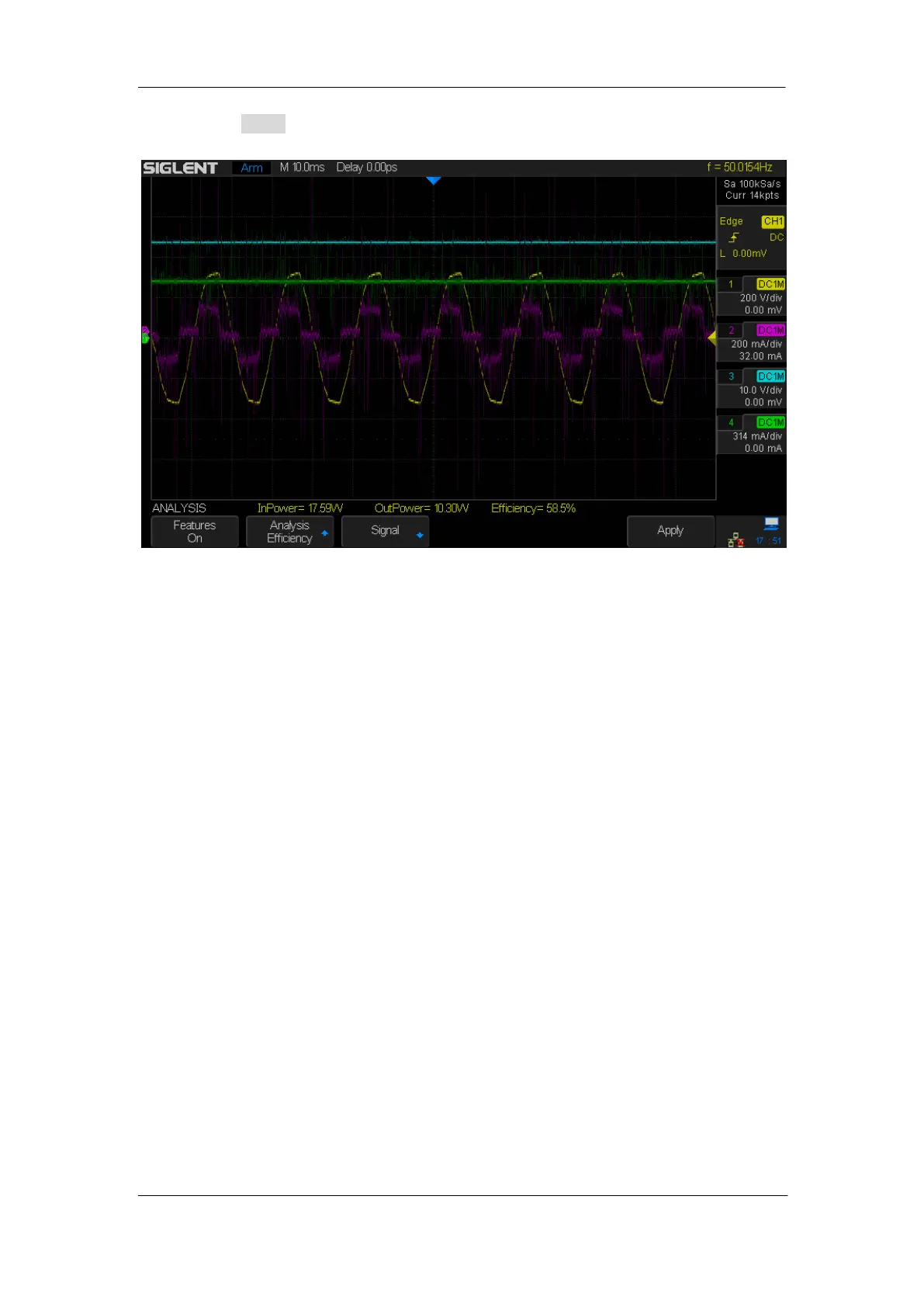

Figure 134: Perform Efficiency Analysis

The input voltage, input current waveforms, output voltage and output current waveforms

are displayed, as well as the calculated input power, output power and efficiency:

 Input Power = Input V * Input I

 Output Power = Output V * Output I

 Efficiency = Input Power/ Output Power
