4 Radio Configuration and Monitoring
The radio link parameters and radio link monitoring are managed in the Radio page.
This chapter includes the following topics:
 Settings
 Advanced Settings
 Maintenance
 Modulation Table
 Statistics
 CLI commands
4.1 Settings

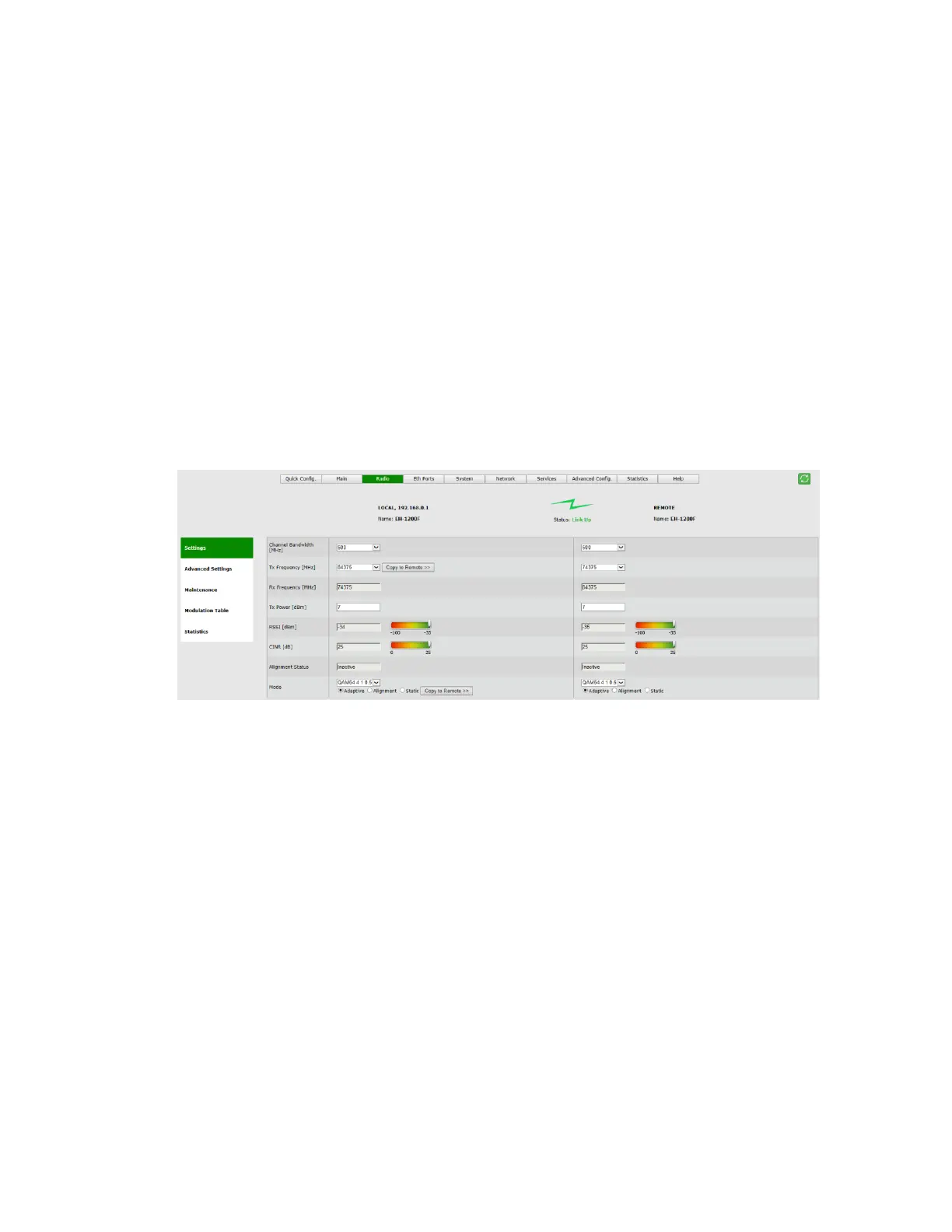

Figure 4-1 Radio Page: Settings
This section allows configuring the following parameters:
 Channel Bandwidth [MHz] – 250 or 500MHz (default is 500MHz).
Note that 250MHz support depends on product’s specs.
 Tx Frequency [MHz] – transmit frequency.
 Rx Frequency [MHz] – R/O field, updated based on Tx frequency.
o For FDD systems – fixed 10GHz spacing between Tx and Rx frequencies.
o For TDD systems – identical Tx and Rx frequencies.
 Tx Power [dBm] – ODU’s transmit power. Default is the max power, based on
product’s specs. Minimum configurable Tx power is -35dBm (note that actual
minimum Tx power is based on product’s specs).
