Siklu EtherHaul - 7 Network Configuration and Monitoring

EtherHaul Operation, Administration and Maintenance Manual
Page 49
7 Network Configuration and Monitoring
General parameters regarding communication and network connectivity are managed in
the Network page.
This chapter includes the following topics:
 General Settings
 Advanced Settings
 Maintenance
 Users Administration
 LLDP
 CLI Commands
7.1 General
7.1.1 IP Address

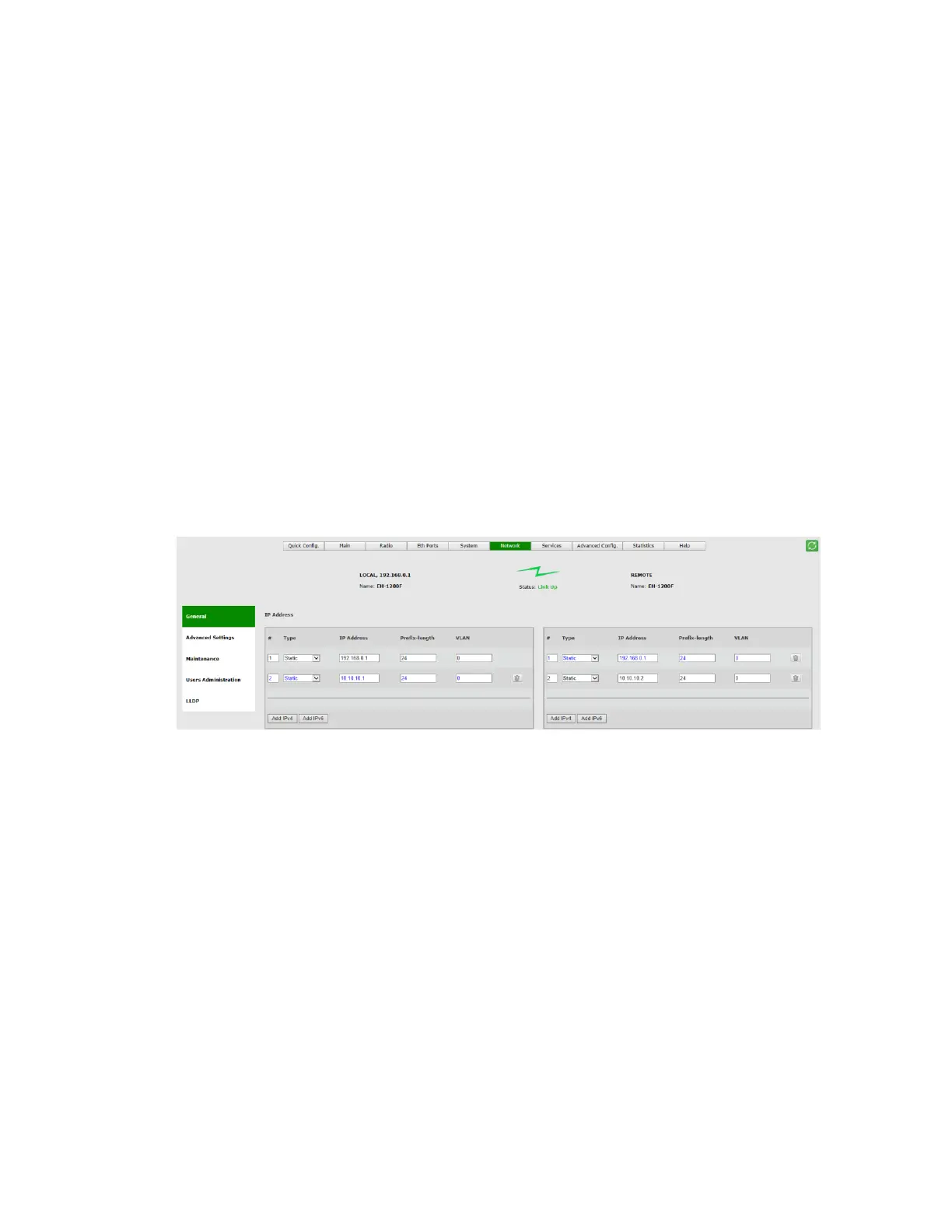

Figure 7-1 Network Page: General – IP Address
The EtherHaul supports up to four IP addresses that can be associated with different
VLANs. IPv4 or IPv6 can be configured. IP addresses may also be acquired by DHCP.
This section allows configuring the following parameters:
 # - Index (1-4)
 Type – Static or DHCP
 IP Address – Default is 192.168.0.1
 IP Prefix Length – Default is 24 (equivalent to Mask of 255.255.255.0)
 VLAN – 0 (not defined, meaning the IP is not associated with specific VLAN)
