EtherHaul Operation, Administration and Maintenance Manual
Page 152
16.2 Bandwidth Utilization Statistics
Presented per port: Eth0 (RF), Eth1 to Eth4 – 96 intervals of 15 minutes (last 24 hours).
The total in-octets, out-octets, in-rate, out-rate and
utilization (aggregated, meaning Tx and Rx) are displayed.
For Eth0 (RF) , bandwidth utilization is displayed as percentage of the aggregated (total
Tx and Rx) max radio rate per the current modulation.
The rates displayed are averaged over the 15 minutes intervals.

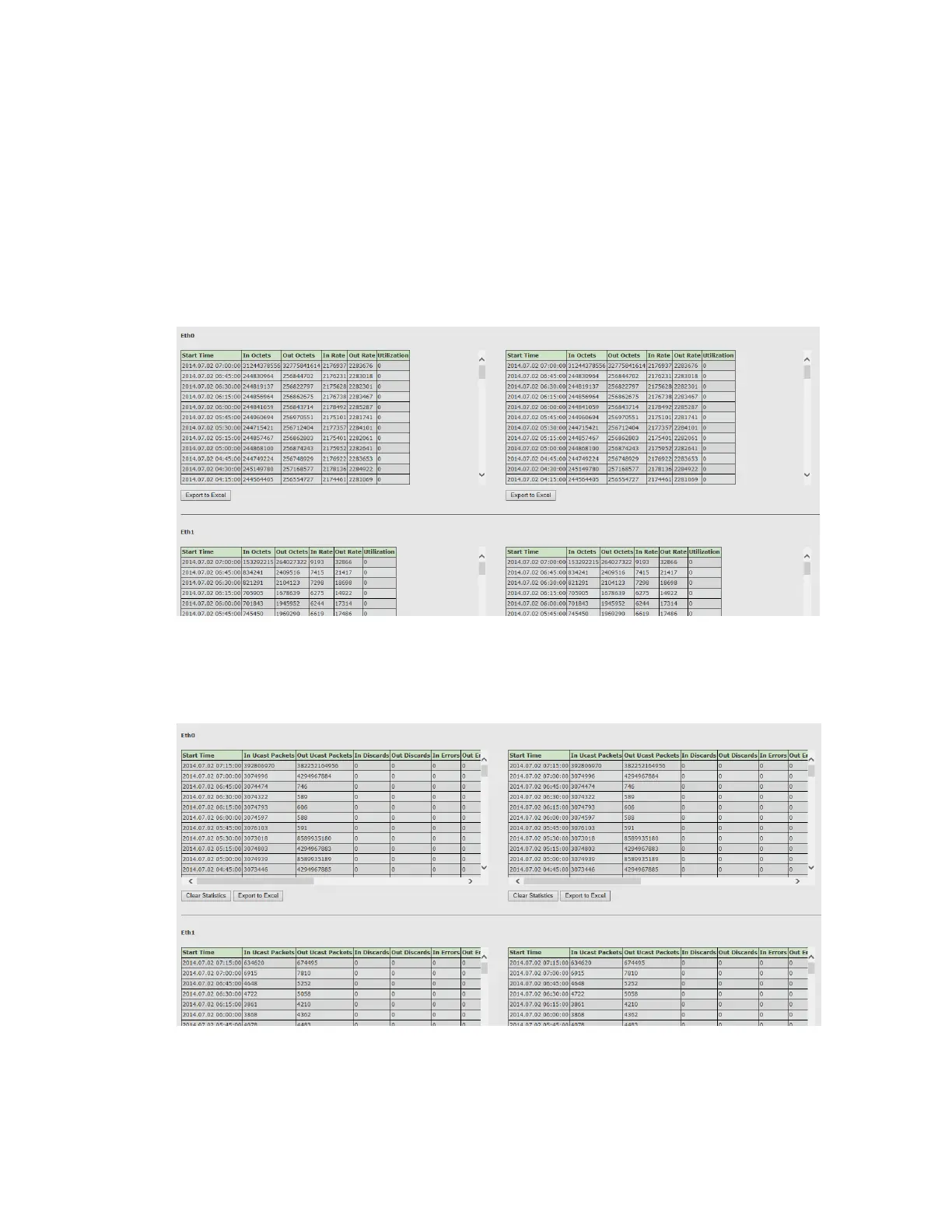

Figure 16-4 Statistics Page: Bandwidth Utilization Statistics
16.3 Ethernet Statistics
Figure 16-5 Statistics Page: Ethernet Statistics
