Classification Criteria options have lower priority than configured Port Priority.
Classification based on one of the following options:
None – no classification, hence no classifiers (all previously configured classifiers will
be deleted besides the Port Priority).
VID – classification based on the incoming VLAN ID.
PCP – classification based on the incoming Priority Code Point (PCP, or pBit) of the
incoming frame.
MPLS-EXP – classification based on the incoming MPLS Experimental bit.
DSCP (3 Bits) – classification based on the incoming Differentiated Services Code
Point 3 MSB (most-significant-bits). If selected, the system will accept values 0÷7 (3
bits).
DSCP (6 Bits) – classification based on the incoming Differentiated Services Code
Point full 6 bits. If selected, the system will accept values 0÷63 (6 bits).
9.3.3 Classifiers

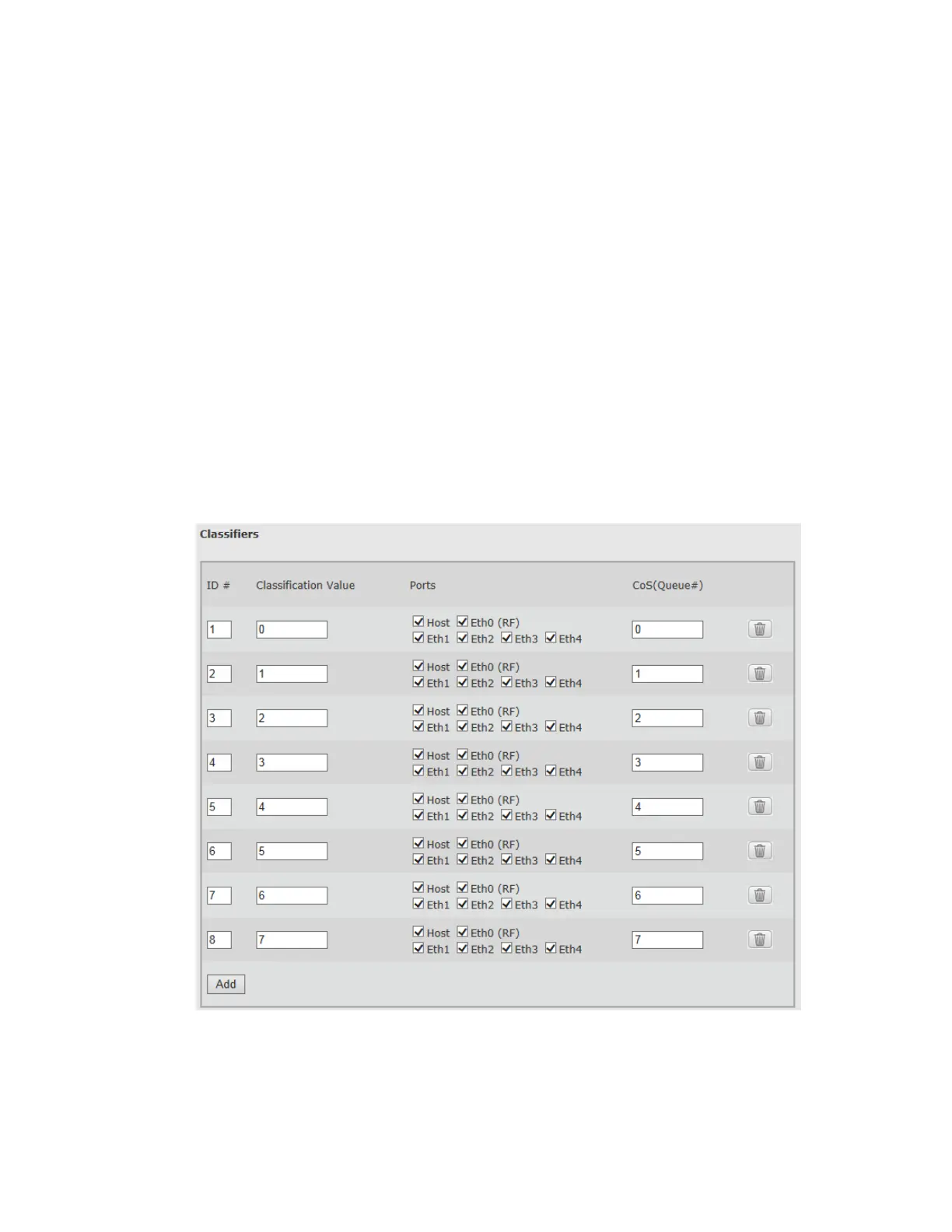

Figure 9-5 Advanced Config Page: Quality of Service – Classifiers
Classification rules are based on the selected classification criteria.
If Port Priority was configured, it will be displayed as Read Only entry.
