9.4 Scheduling
Scheduler Mode options:
 Strict Priority – Lower priority packets are served only if all higher priority
queues are empty. This is the default scheduler mode.
 Weighted Fair Queuing (WFQ) – Weights can be assigned to the radio queues,
assuring fairness between the queues.
 Shaper – Sets the CIR (Committed Information Rate, i.e. the maximum rate) of
the queues, with Strict Priority or WFQ.
The default scheduling mode is Strict Priority.
Weights (for WFQ configuration) or CIR values (for Shaper configuration) can be
configured for queues #1 to #5 (CoS 1 to 5).
9.4.1 Scheduling Mode: Strict Priority

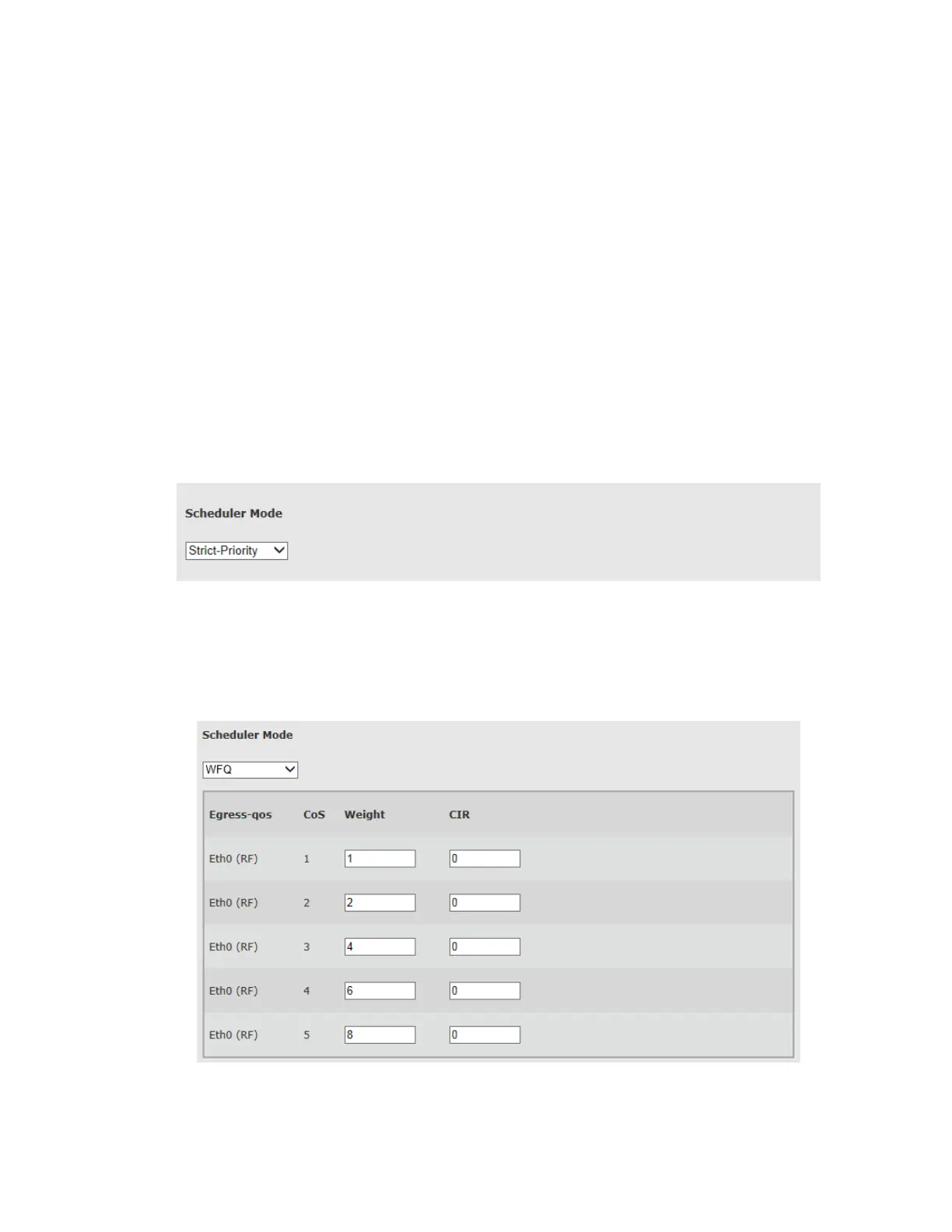

Figure 9-6 Advanced Config Page: Quality of Service – Scheduler Mode Strict Priority
Lower priority packets are served only if all higher priority queues are empty.
9.4.2 Scheduling Mode: Weighted Fair Queue (WFQ)
Figure 9-7 Advanced Config Page: Quality of Service – Scheduler Mode WFQ
