16 Statistics
The EtherHaul uses advanced RF and Ethernet counters to provide real -time
performance statistics for radio transmission activities, Ethernet ports, VLAN traffic and
QoS queues.
The following statistics enable quick analysis of system and component performance in
support of troubleshooting and diagnostics.
 RF statistics – displays RF statistic counters to identify radio errors and check the
radio status history. The RF statistics consist of real time statistic counters since
the last time the counters were cleared
 VLAN statistics - displays statistic counters of each EtherHaul link component per
VLAN
 Ethernet statistics - displays Ethernet statistics counters per Ethernet port
 Queues statistics – displays statistics per egress queue
This chapter describes the system's statistics.
The statistics are presented in the dedicated Statistics page.
Statistics can be exported to Excel by clicking the Export to Excel button next to
the relevant table.
16.1 Radio (RF) Statistics Monitoring
16.1.1 RF Statistics Summary
Summary of radio statistics – 96 intervals of 15 minutes (last 24 hours), recording the
minimum and maximum values per interval of RSSI, CINR and Modulation profile.

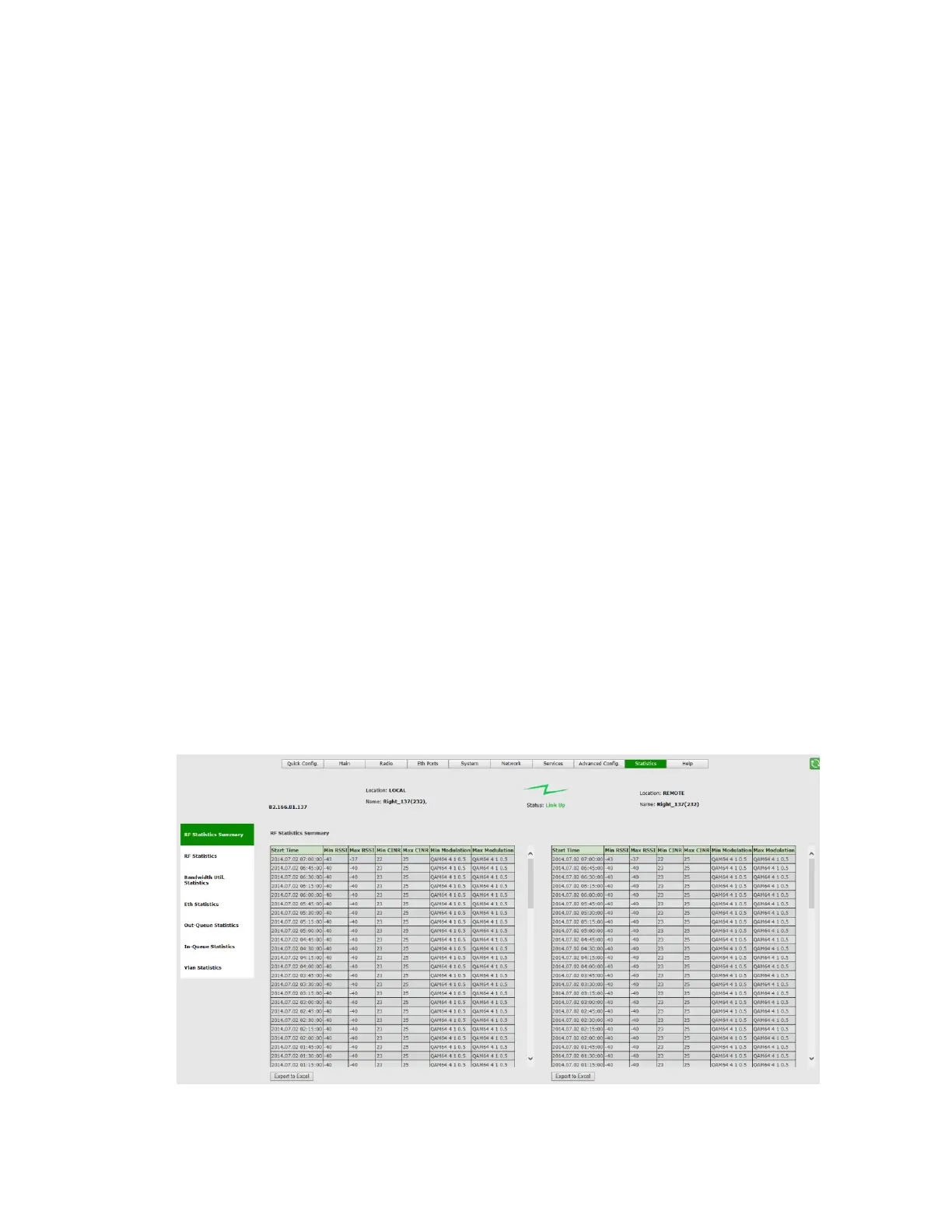

Figure 16-1 Statistics Page: RF Statistics Summary
