EtherHaul Operation, Administration and Maintenance Manual
Page 102
integrated, powerful networking engine. When the rain cell moves on and the EtherHaul
can provide a capacity higher than the configured threshold, the traffic is routed
hitlessly back to the EtherHaul.
11.2 ExtendMM™ Requirements
The ExtendMM soultiuon is based on the ITU-T G.8032 Ethernet Ring Protection
Switching standard. This standard uses advanced and fast networking capabilities to
detect main link failure and route the traffic seamlessly to the backup path and back.
The ExtendMM solution will operate with any sub-6 GHz, Ethernet, transparent bridge
which will transport any type of Layer 2 broadcast or multicast traffic.
Mount the EtherHaul and sub-6 GHz radios and establish reliable connectivity of both.
Connect the traffic cable to the EtherHaul port (Eth1). Connect the sub -6 GHz radio to
the EtherHaul port (Eth2 is the default).
11.3 ExtendMM™ Configuration
The ExtendMM will operate with the default parameters in the majority of the cases. If
required the default parameters may be configured in the ExtendMM™ section under
Adanced Config.

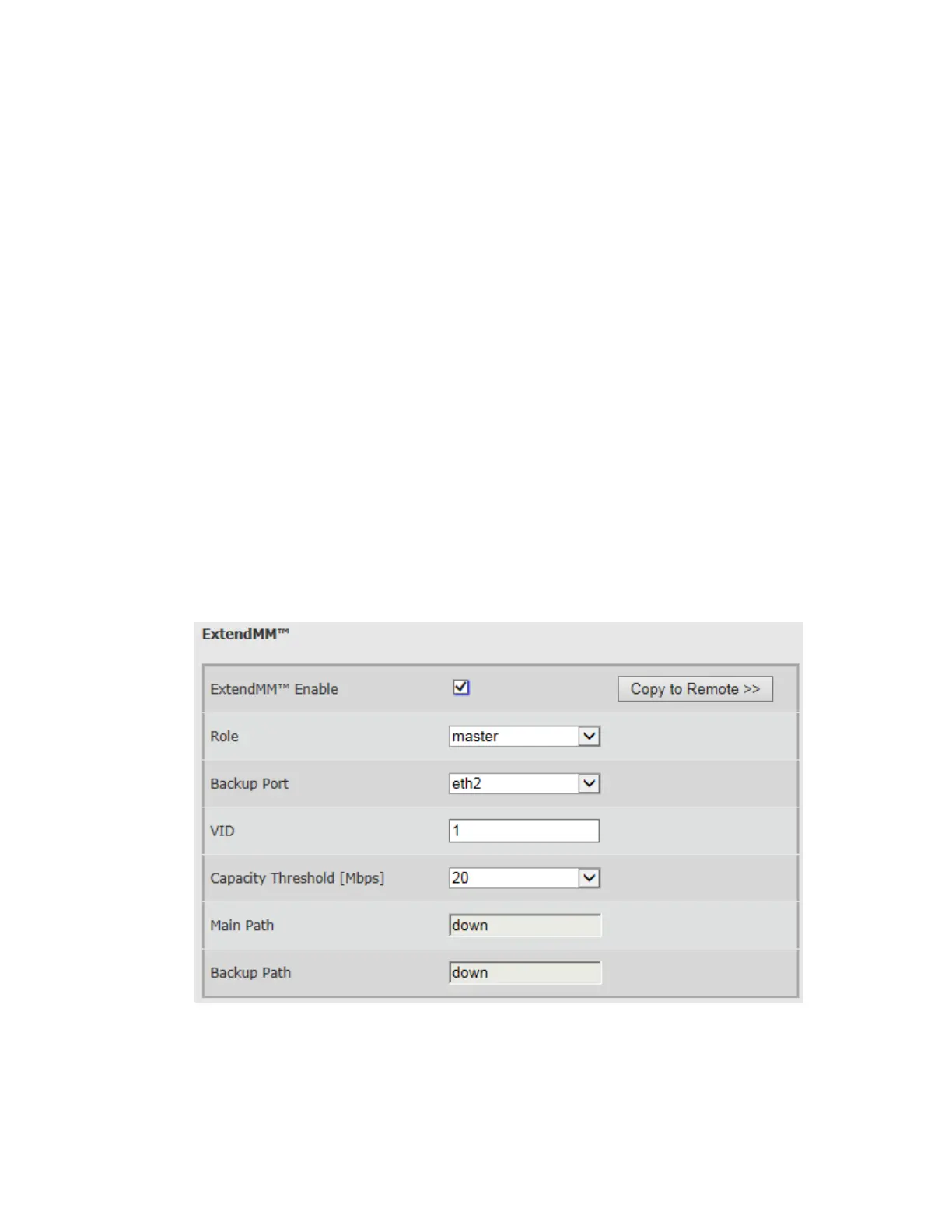

Figure 11-2 Advanced Config Page: ExtendMM™
